AR46.25-P-3015TSC Remove/Install Hydraulic Line of Power Steering



AR46.25-P-3015TSC Remove/install hydraulic line of power steering
- Downstream of power steering radiator

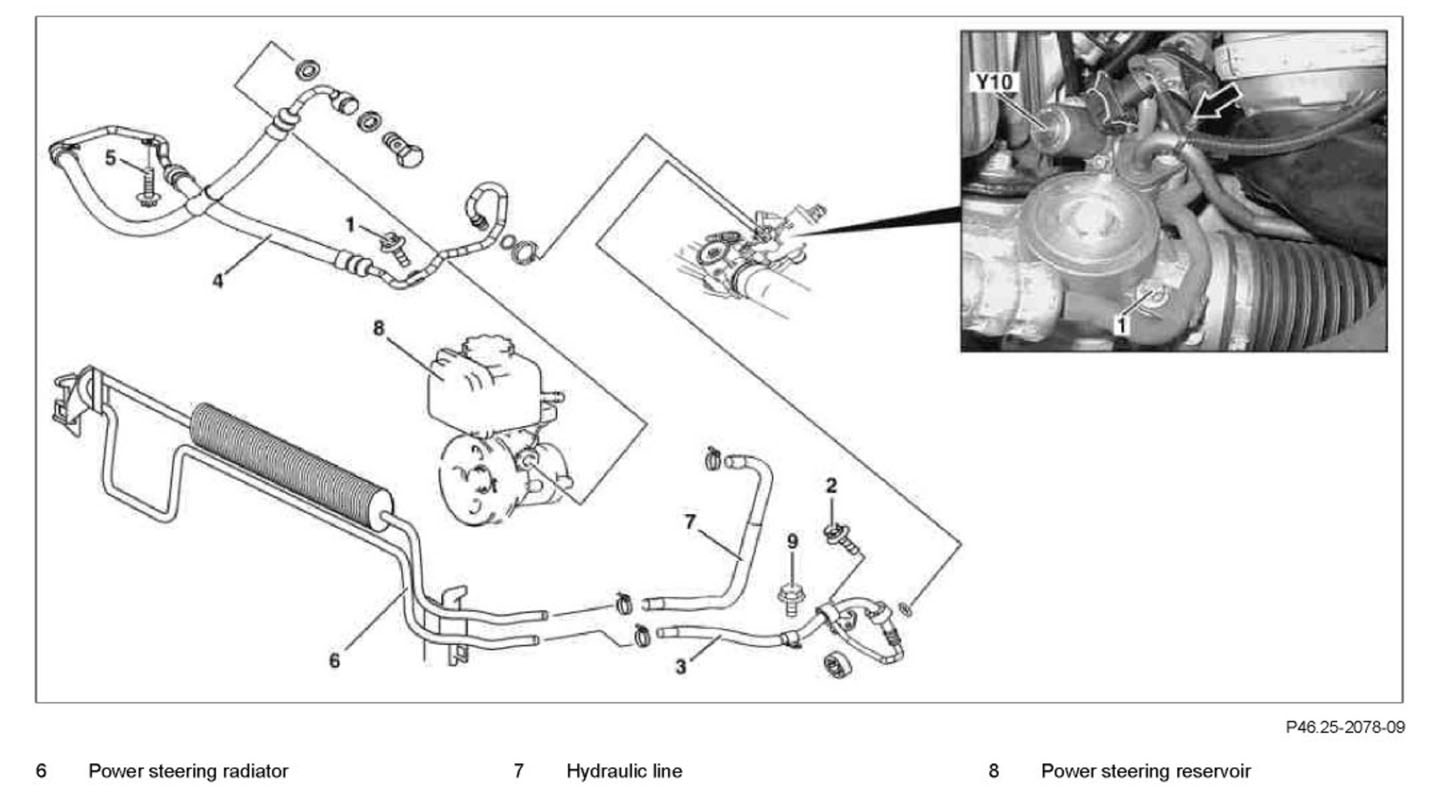

Component Identification:

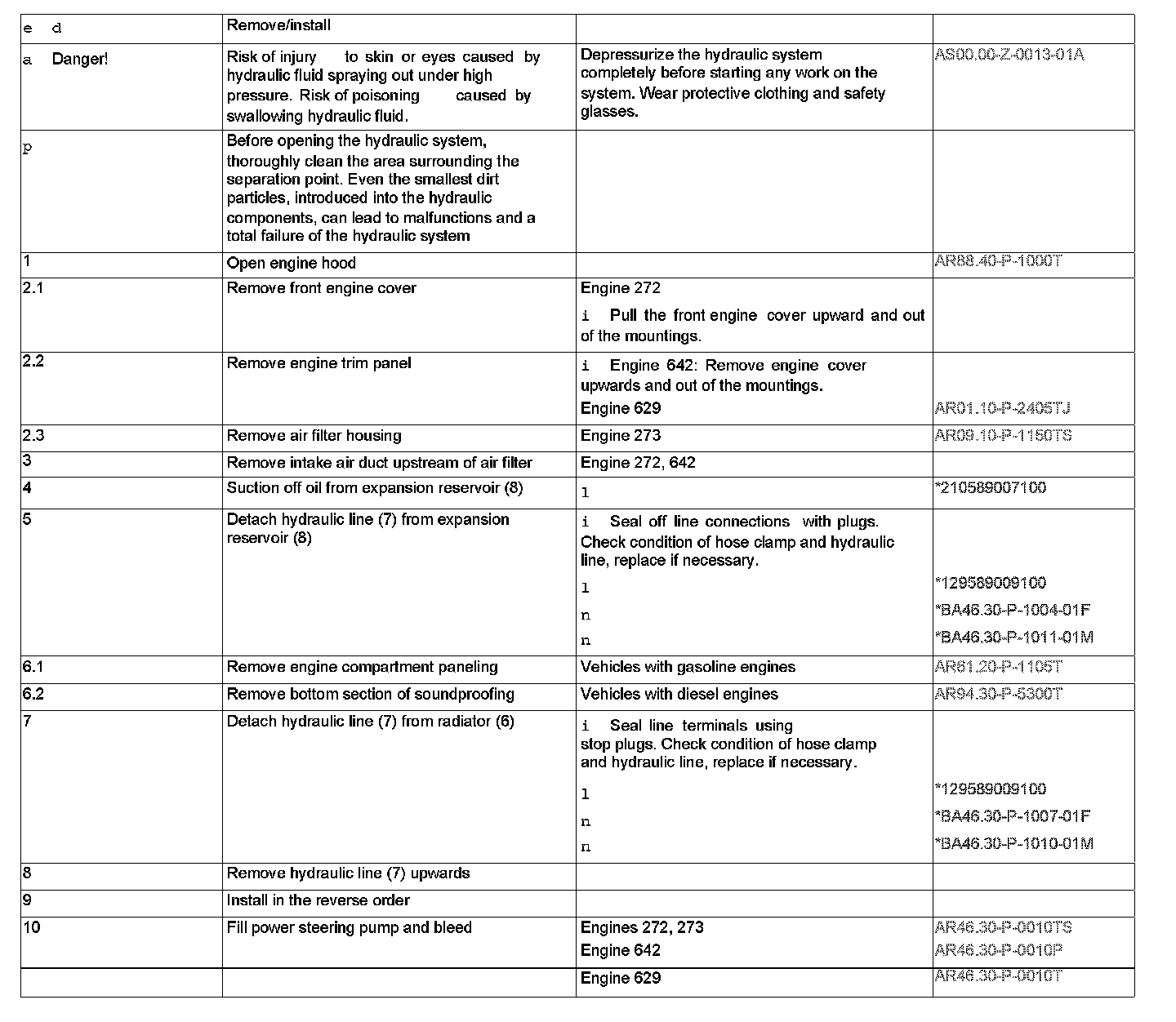

Steps 1-10:

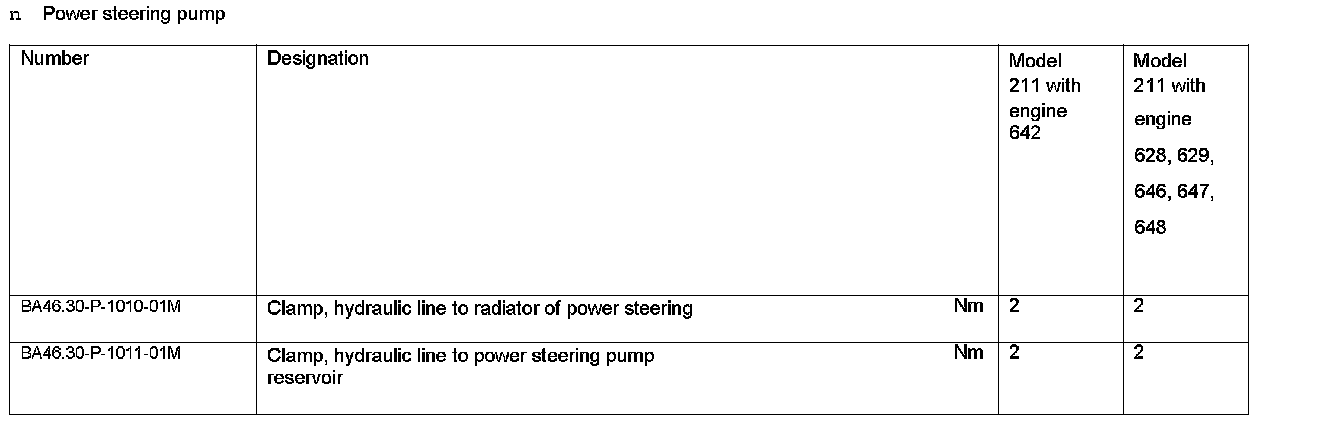

Power steering pump:




Power steering pump:

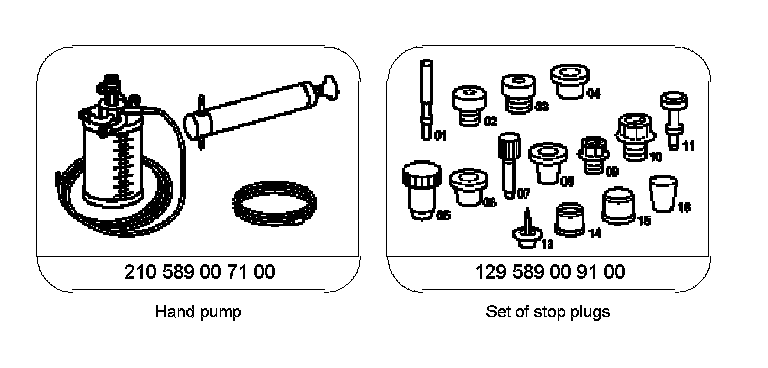

Special Tools:
