Drive Belt: Testing and Inspection

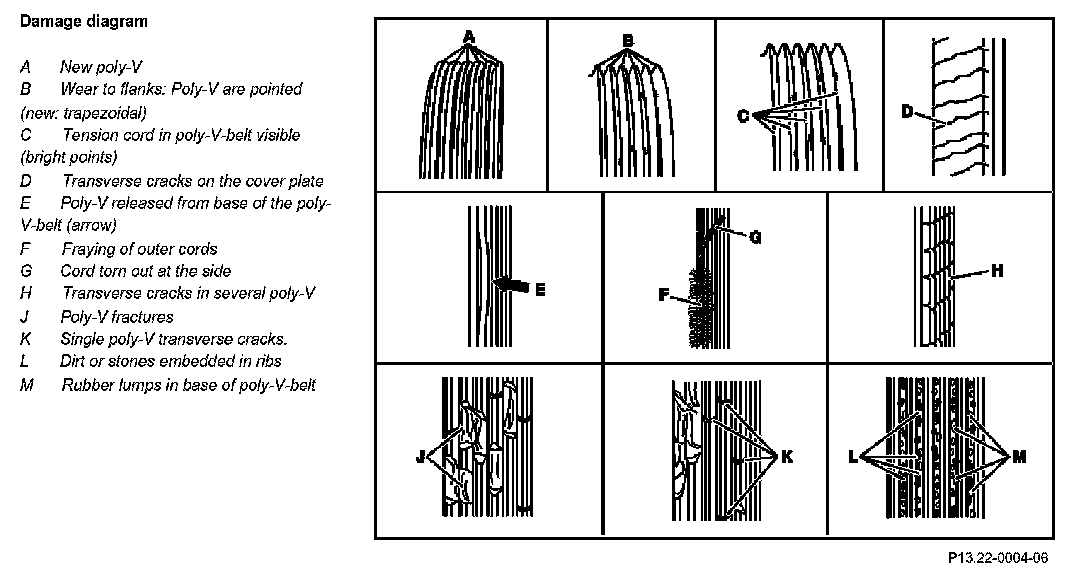

AP13.22-P-1352TI Check Poly-V-belt In Visible Area For Wear

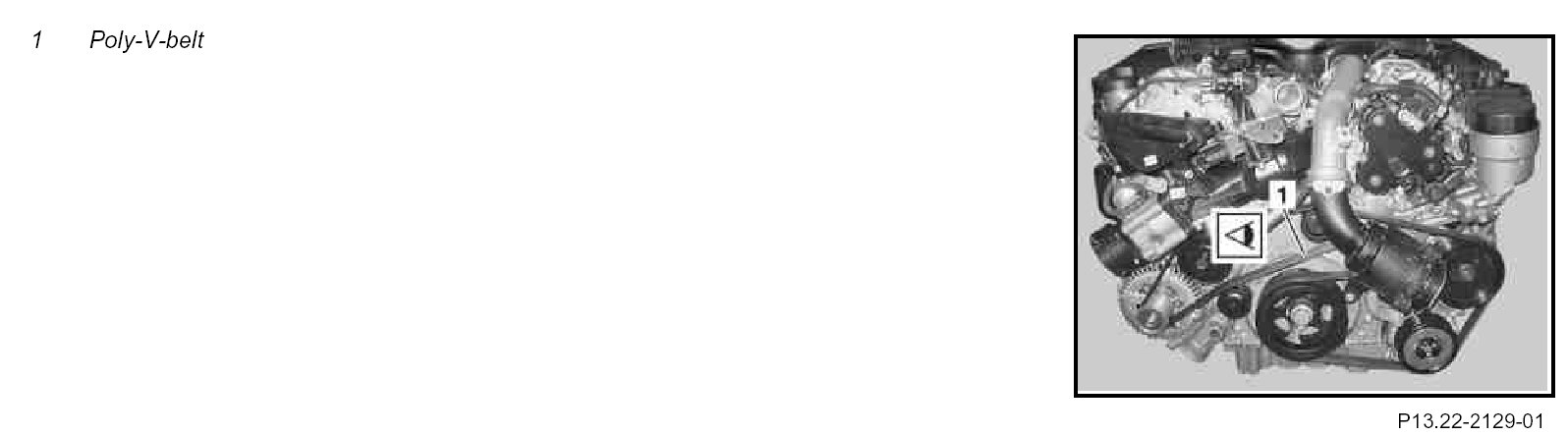

Component Identification:
Component Identification:

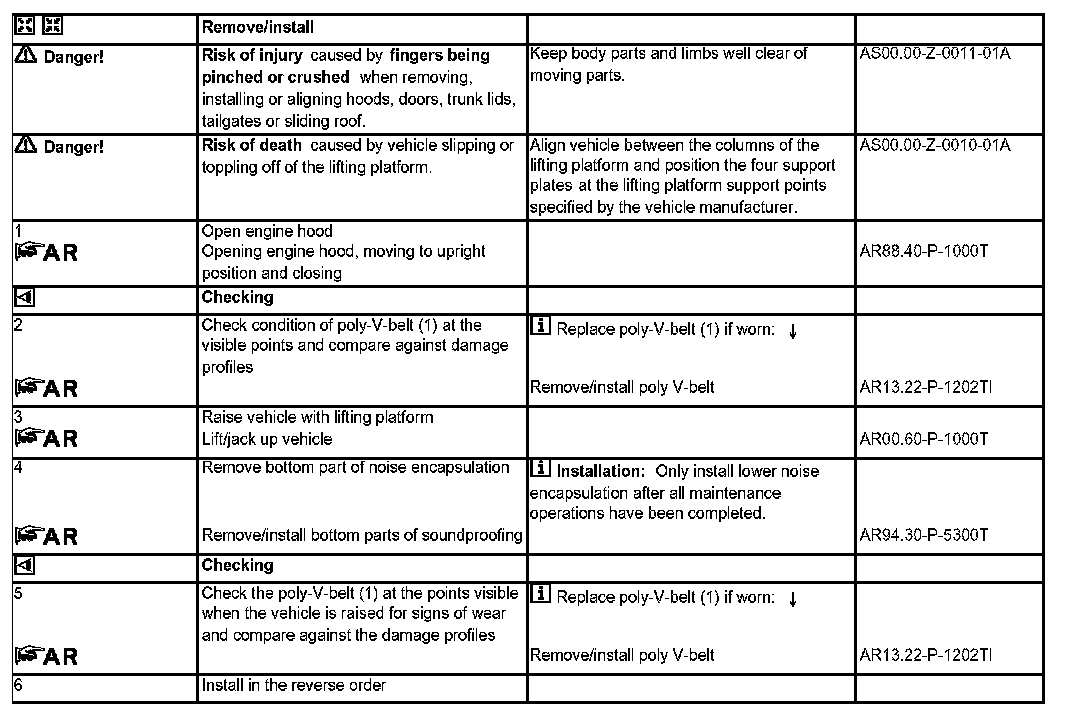

Steps 1 - 6:
