Drive Belt: Service and Repair



AR13.22-P-1202TI Remove, Install Poly V-Belt

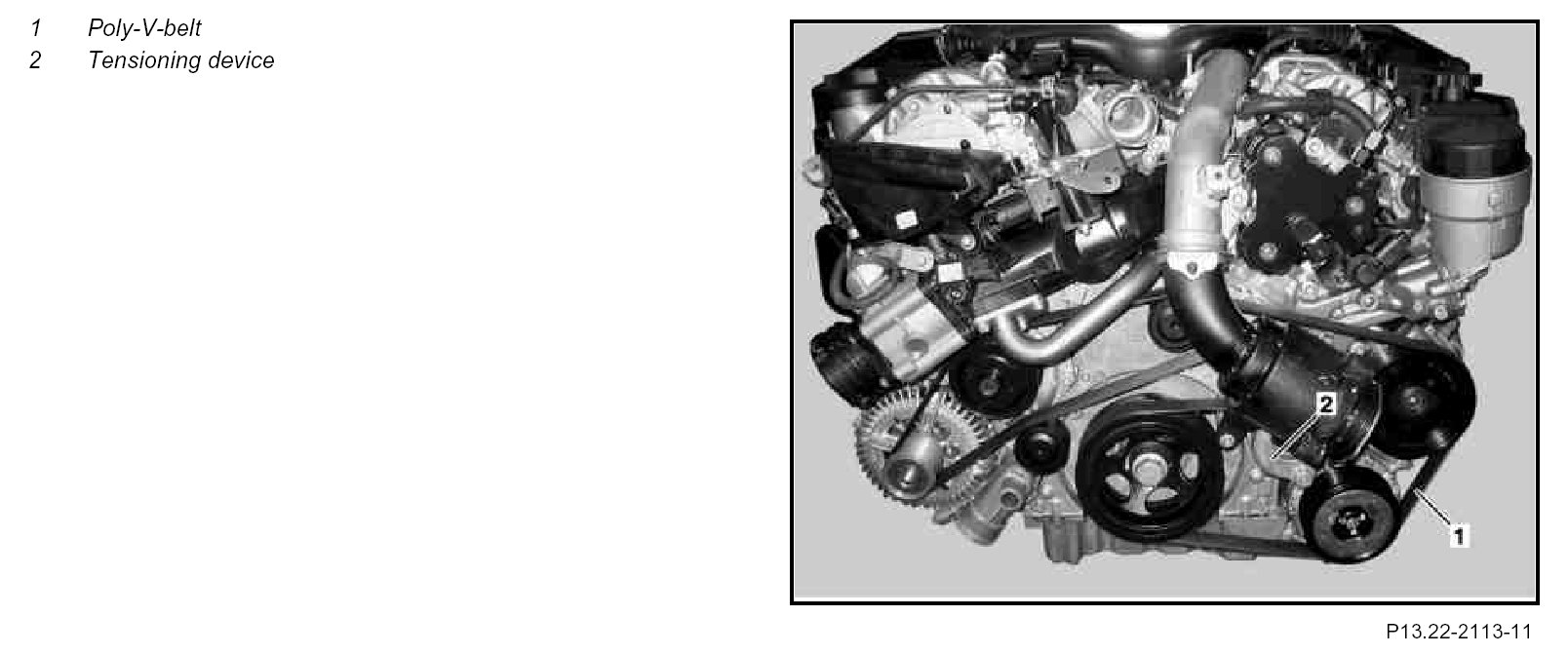

Component Identification:

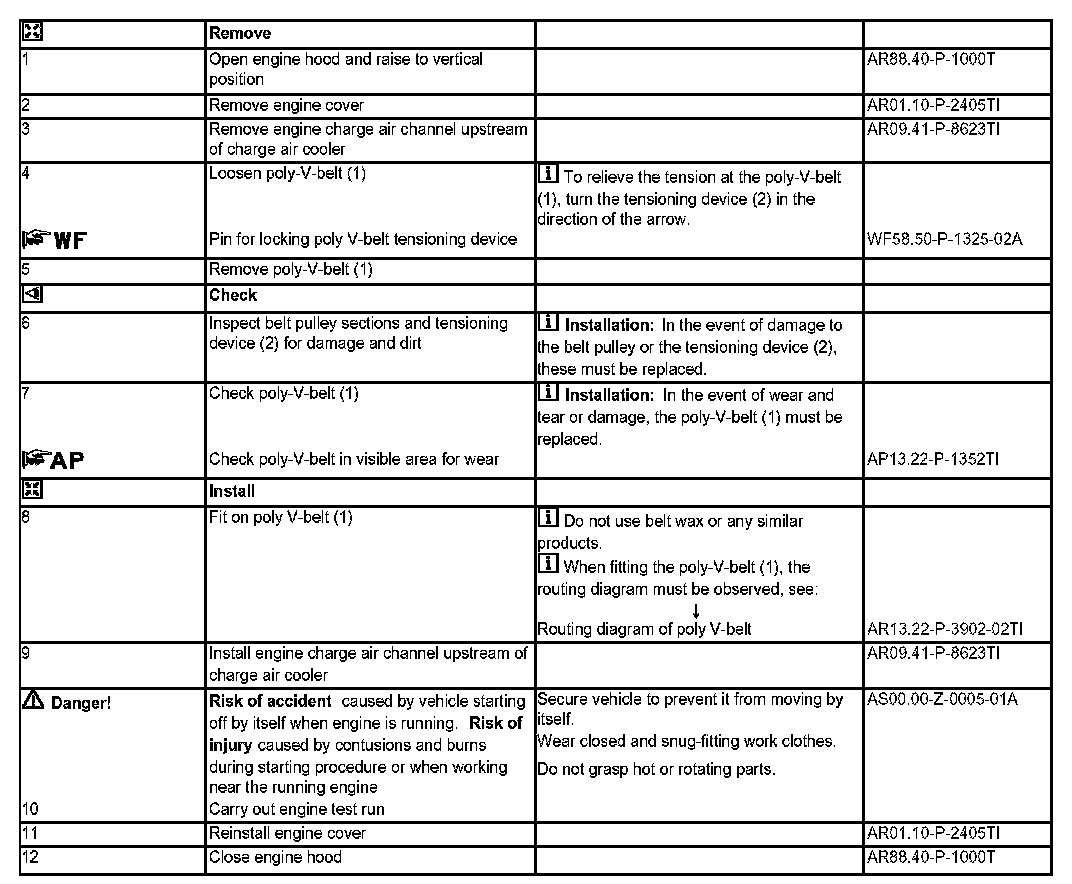

Steps 1 - 12:
