Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Lighting and Horns >> Vanity Lamp >> Service and Repair

Vanity Lamp: Service and Repair



AR82.20-P-5582T Remove/Install Lamp For Vanity Mirror
- with CODE (543) Sun visors with illuminated mirror

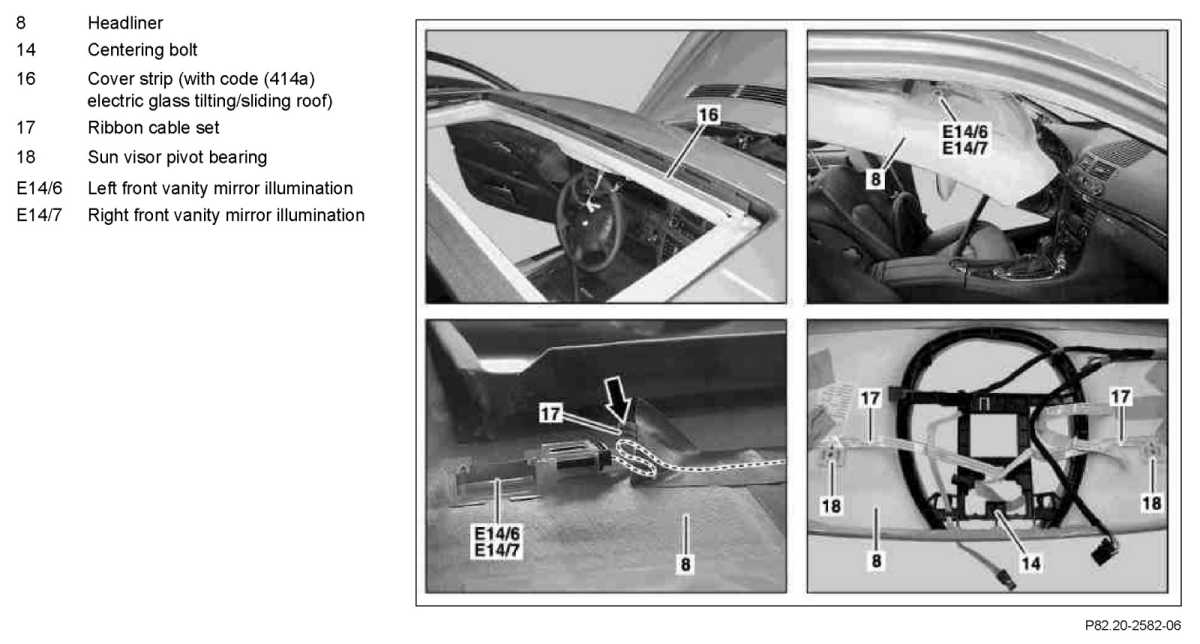

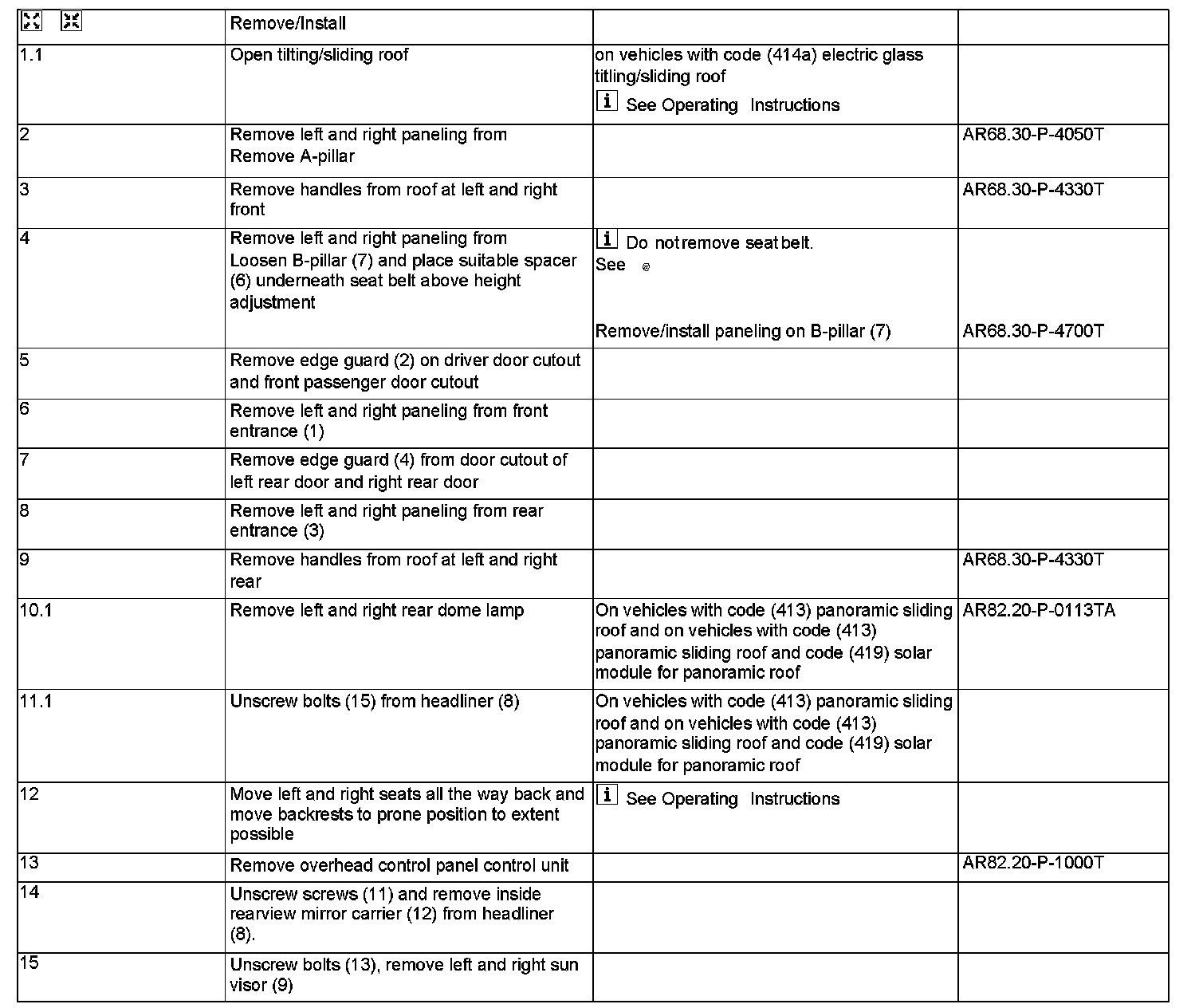

Part 1:

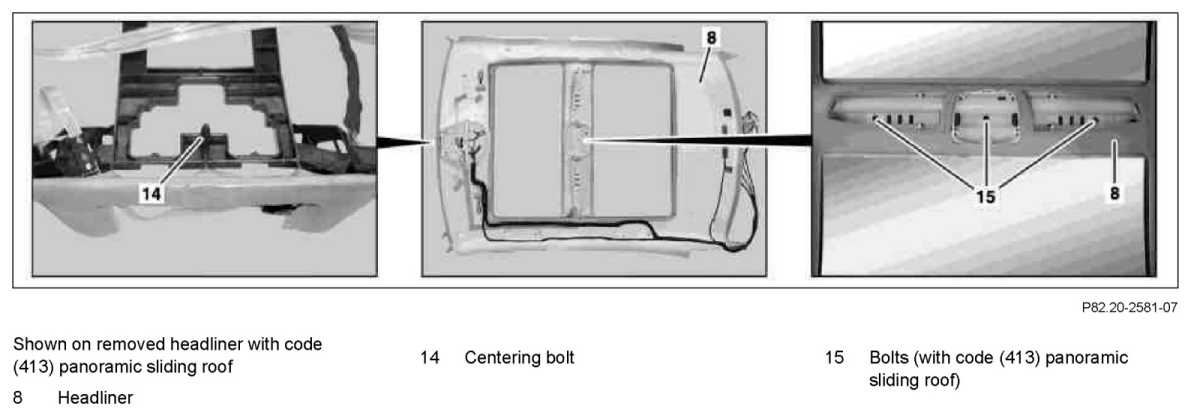

Part 2:
