Turn Signal Lamp: Service and Repair

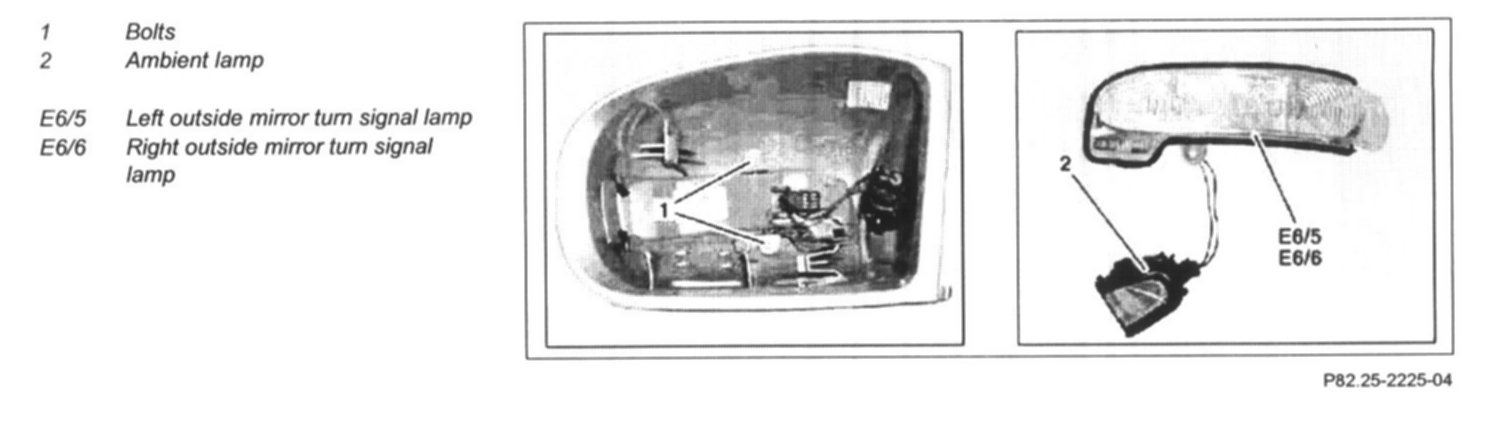

AR82.25-P-4726T Remove/Install Additional Turn Signal Lamp







1 Remove cover from outside rearview mirror, please refer to Vehicle/ Body and Frame/ Mirrors/ Service and Repair/ Removal and Replacement Service and Repair
2 Remove bolts (1)
3 Unclip surrounding lamp (2)
4 Remove left outside mirror turn signal lamp (E6/5) or right (E6/6)
5 Install in the reverse order
6 Carry out function check
