Lighting - Position Light LED Nonfunctional
Position light LED nonfunctionalTopic number LI82.10-P-054609
Version 1
Design group 82.10 Exterior lights
Date 09-07-2012
Validity 211### #B up to 100720 (11/2006 production)
Reason for change Damage code adjusted
Complaint
Standing light/position light nonfunctional.
Cause
Solder bridge between + and - of connecting line and/or cable at solder point broken.
Remedy
Replacement of the headlamp.

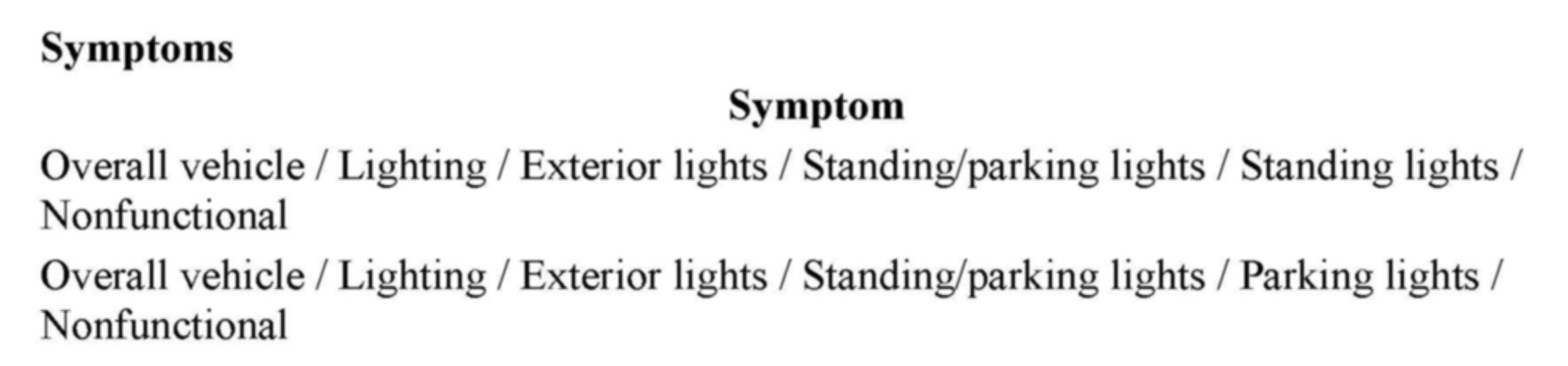

Symptoms

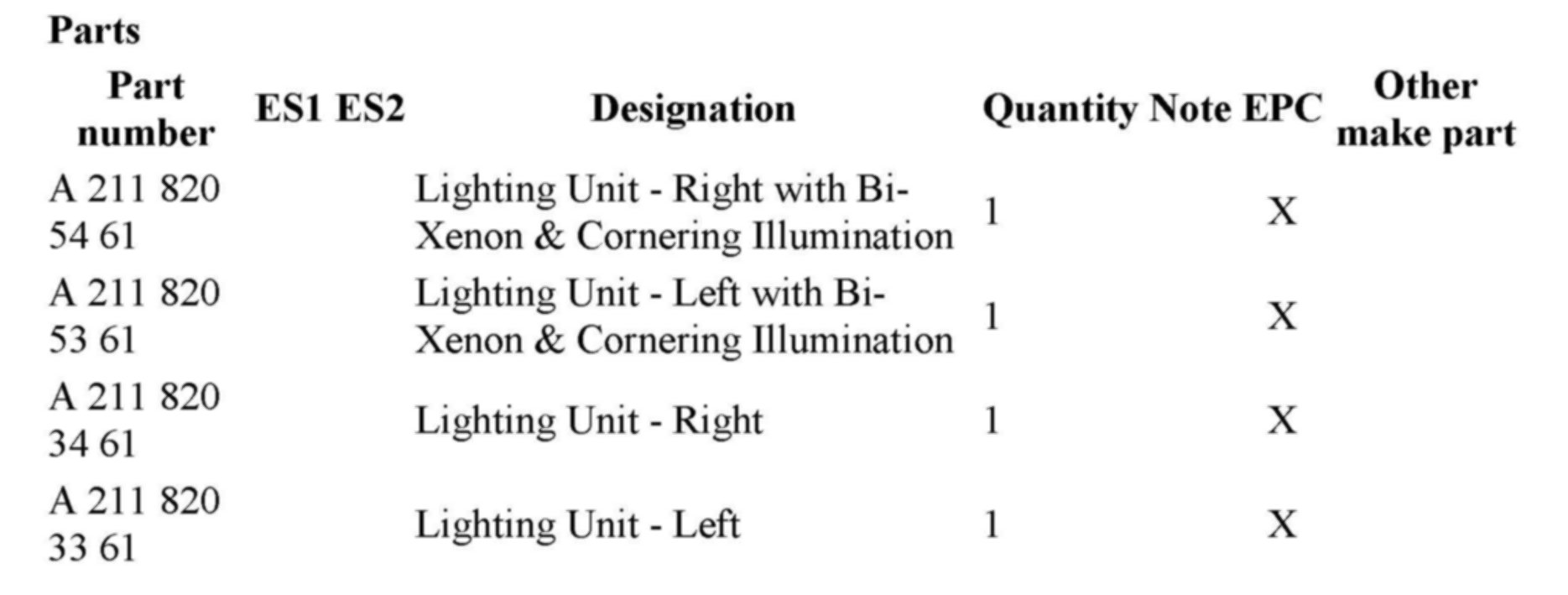

Parts

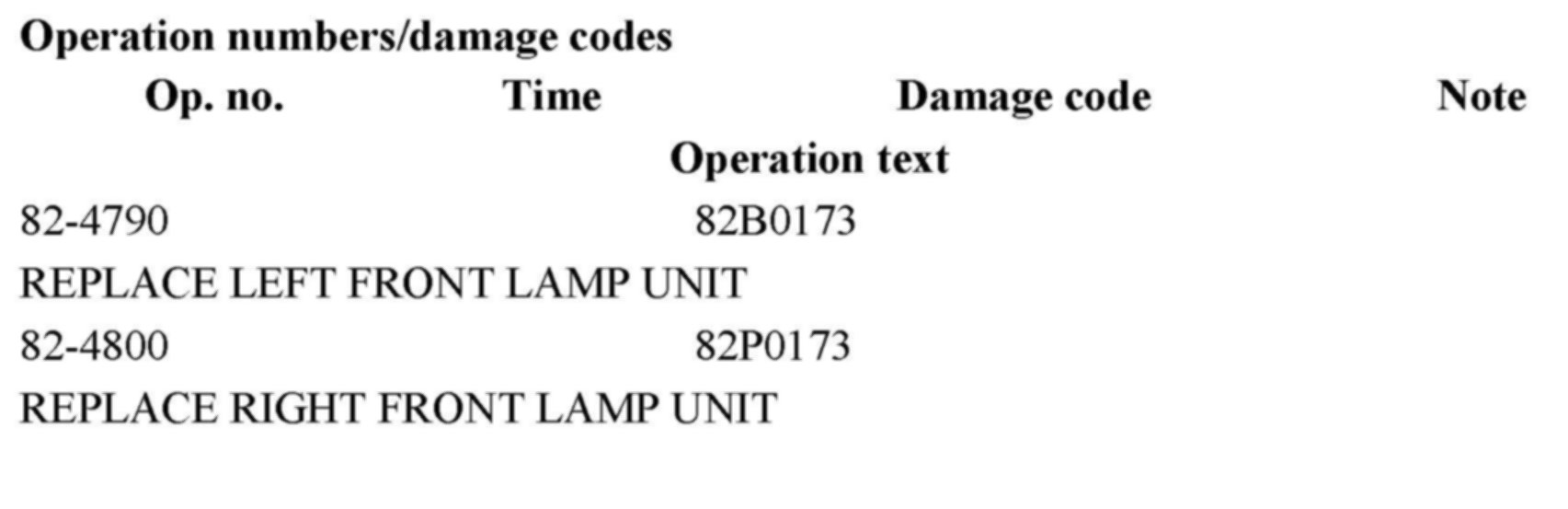

Operation numbers/damage codes
