Headlamp Control Module: Service and Repair

AR82.10-P-4632TM Remove/Install Xenon Headlamp Control Unit
- with CODE (614) Bi-xenon headlamp unit
- with CODE (615) Bi-xenon headlamp unit
- with CODE (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination
- with CODE (618) Bi-xenon headlamps
- with CODE (621) Intelligent Light System (left-hand traffic)
- with CODE (622) Intelligent Light System (right-hand traffic)

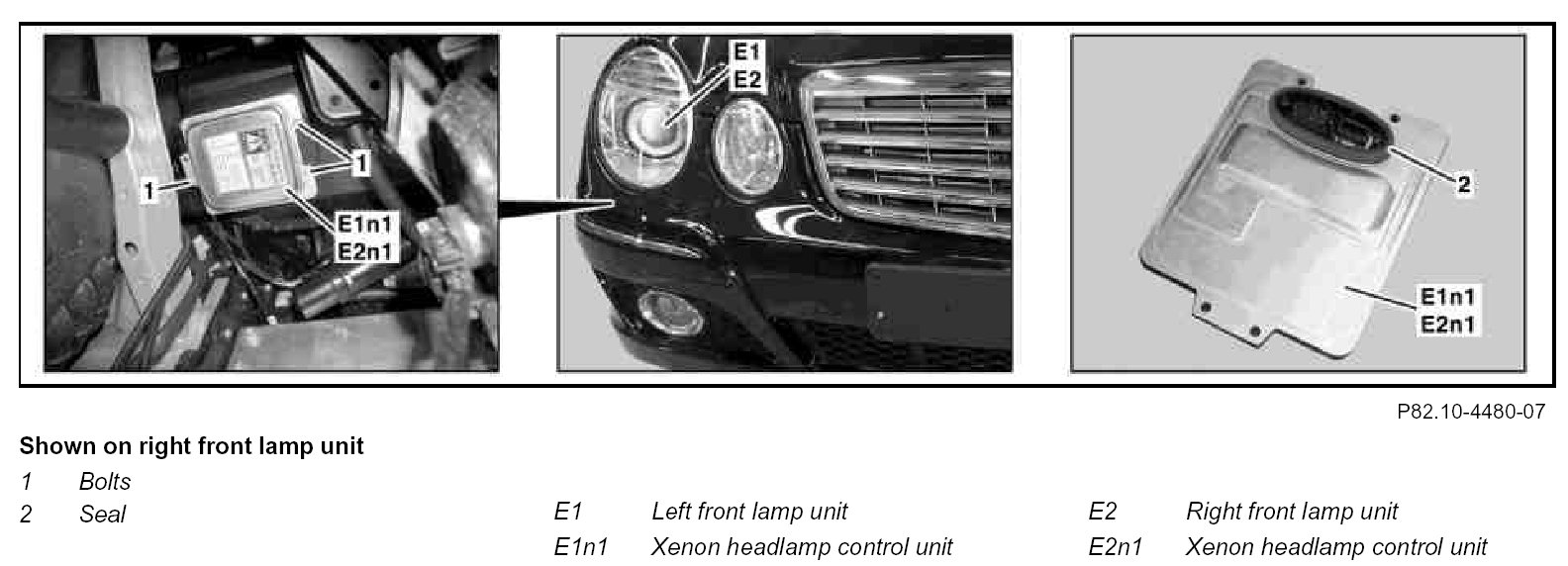

Component Identification:

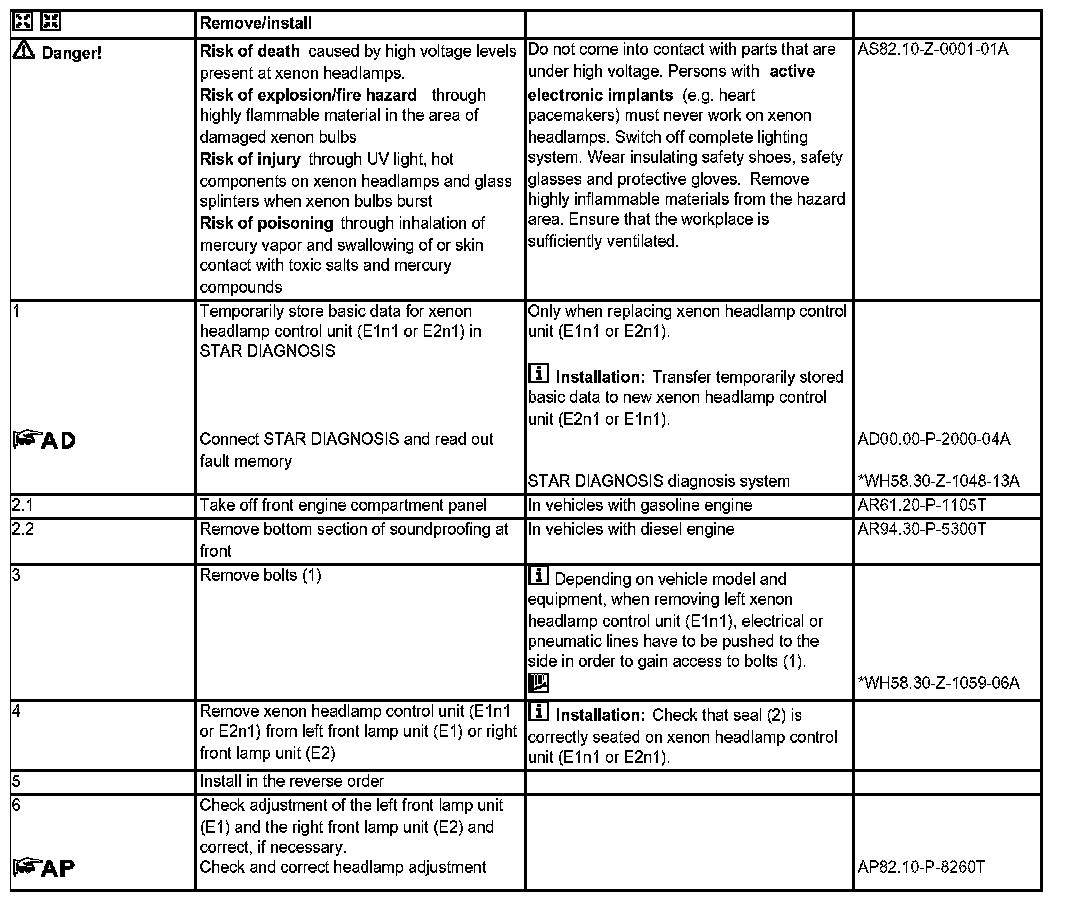

Steps 1 - 6:

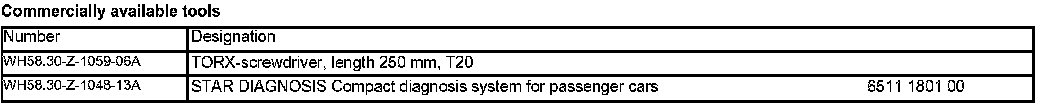

Commercially Available Tools:
