E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Adjustments
>>

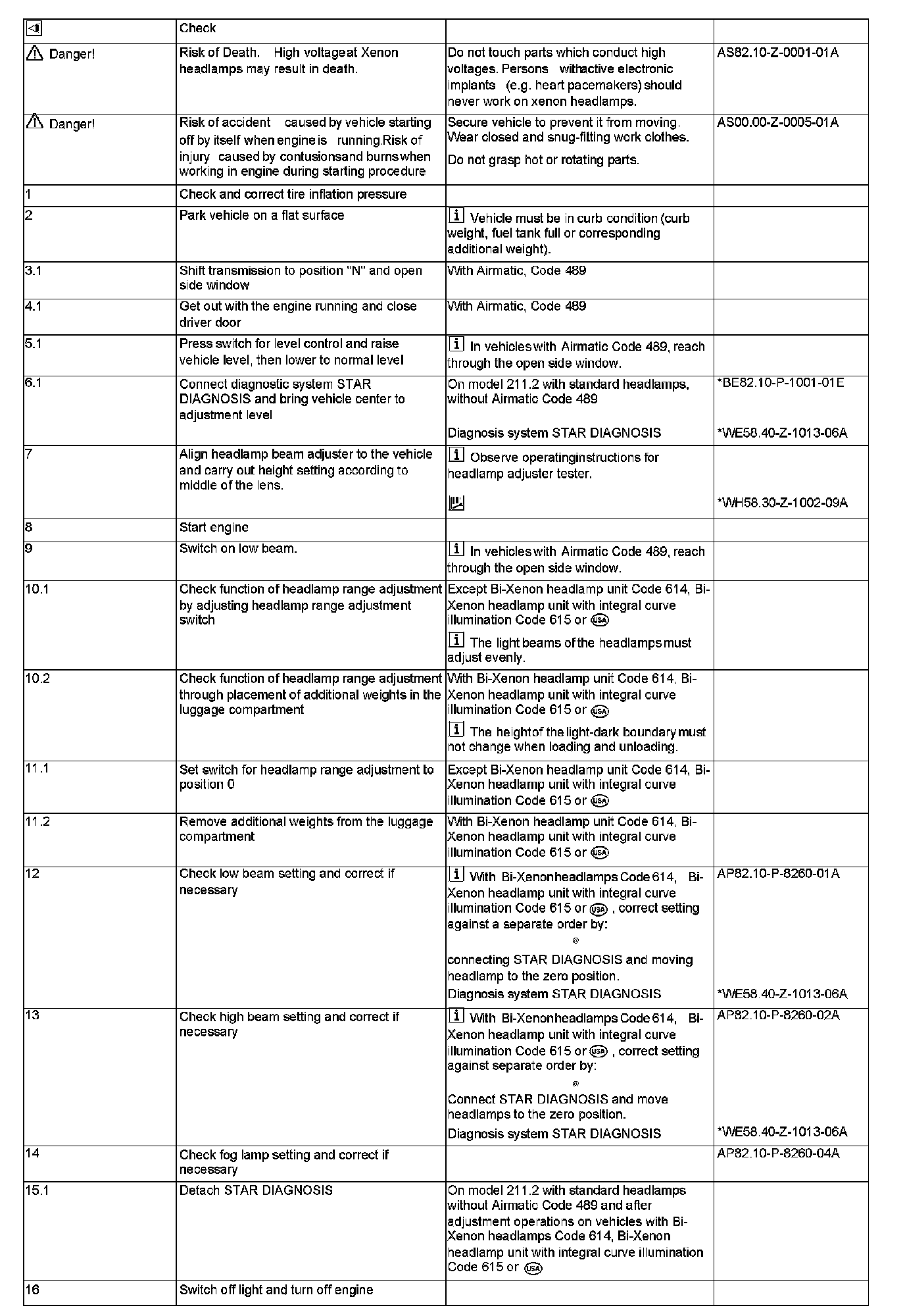

AP82.10-P-8260T Check and Correct Headlamp Adjustment
AP82.10-P-8260T Check and Correct Headlamp Adjustment
AP82.10-P-8260T Check and Correct
Headlamp
Adjustment

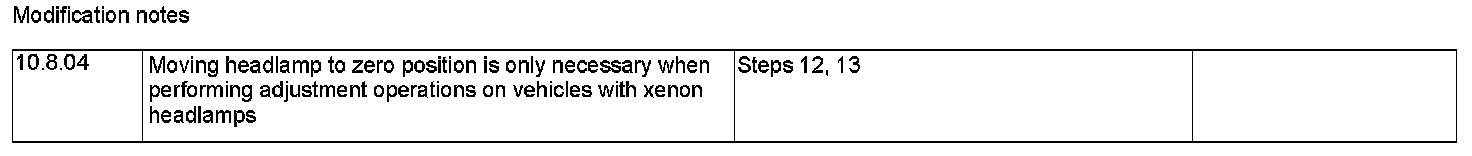

Modification Notes:
Test Values For Exterior Lights:
