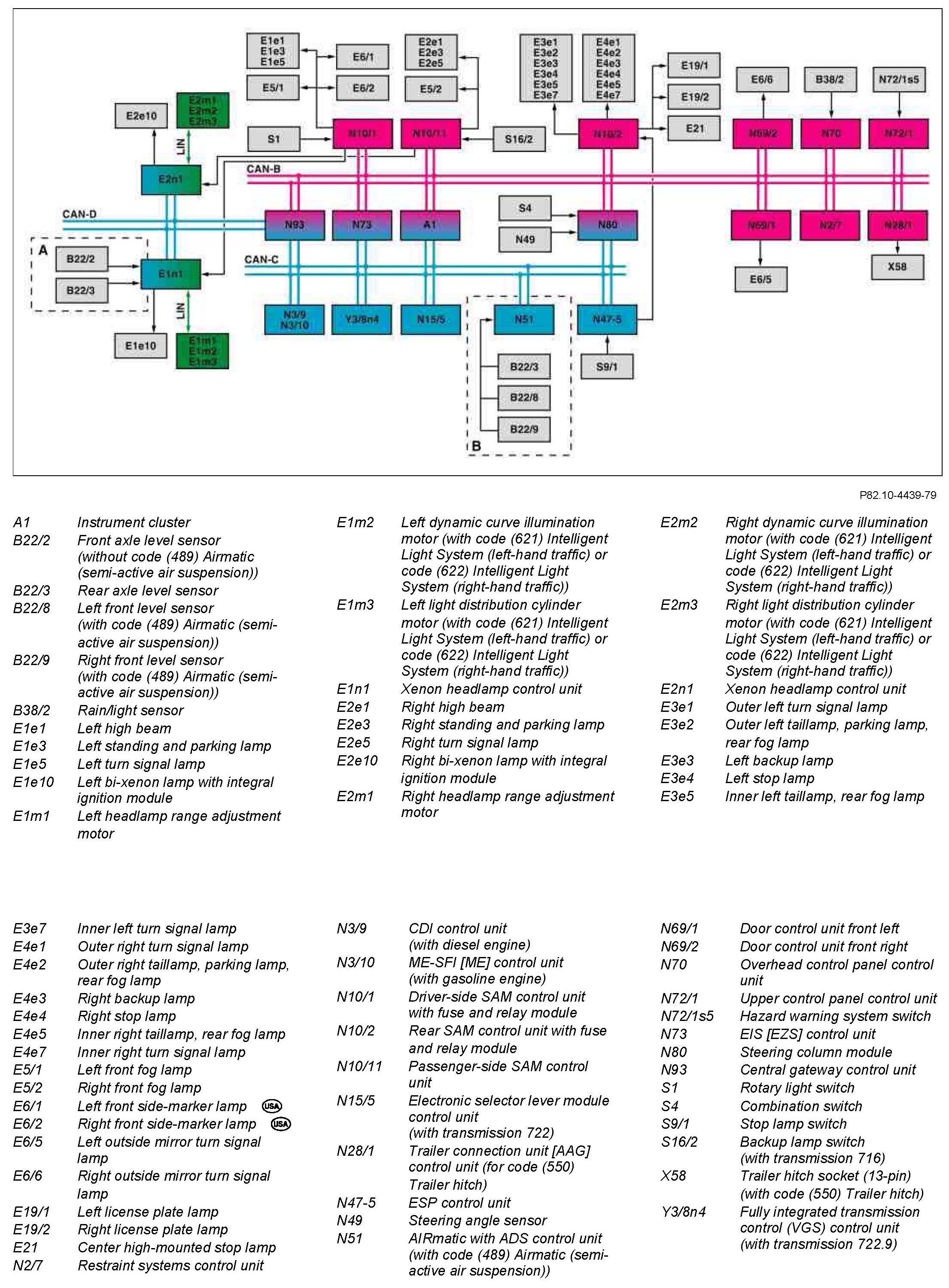

GF82.10-P-0003-03TMA Exterior Lights Block Diagram



GF82.10-P-0003-03TMA Exterior Lights Block Diagram
- with CODE (614) Bi-xenon headlamp unit
- with CODE (618) Bi-xenon headlamps

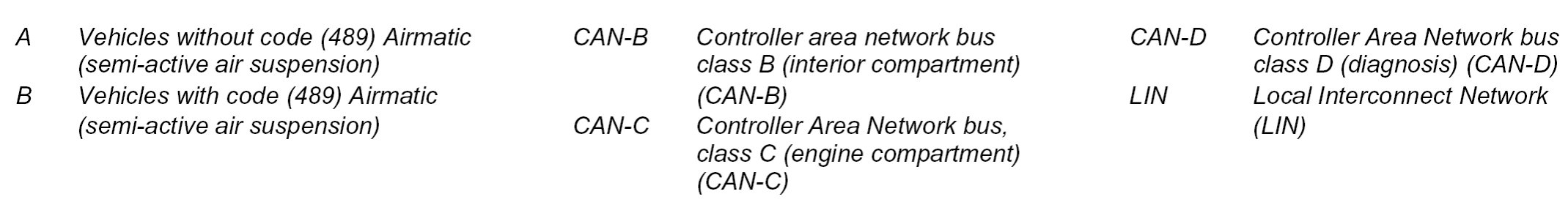

Component Identification:




Component Identification:
