Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Lighting and Horns >> Description and Operation >> GF82.10-P-0003-03TM Exterior Lights Block Diagram

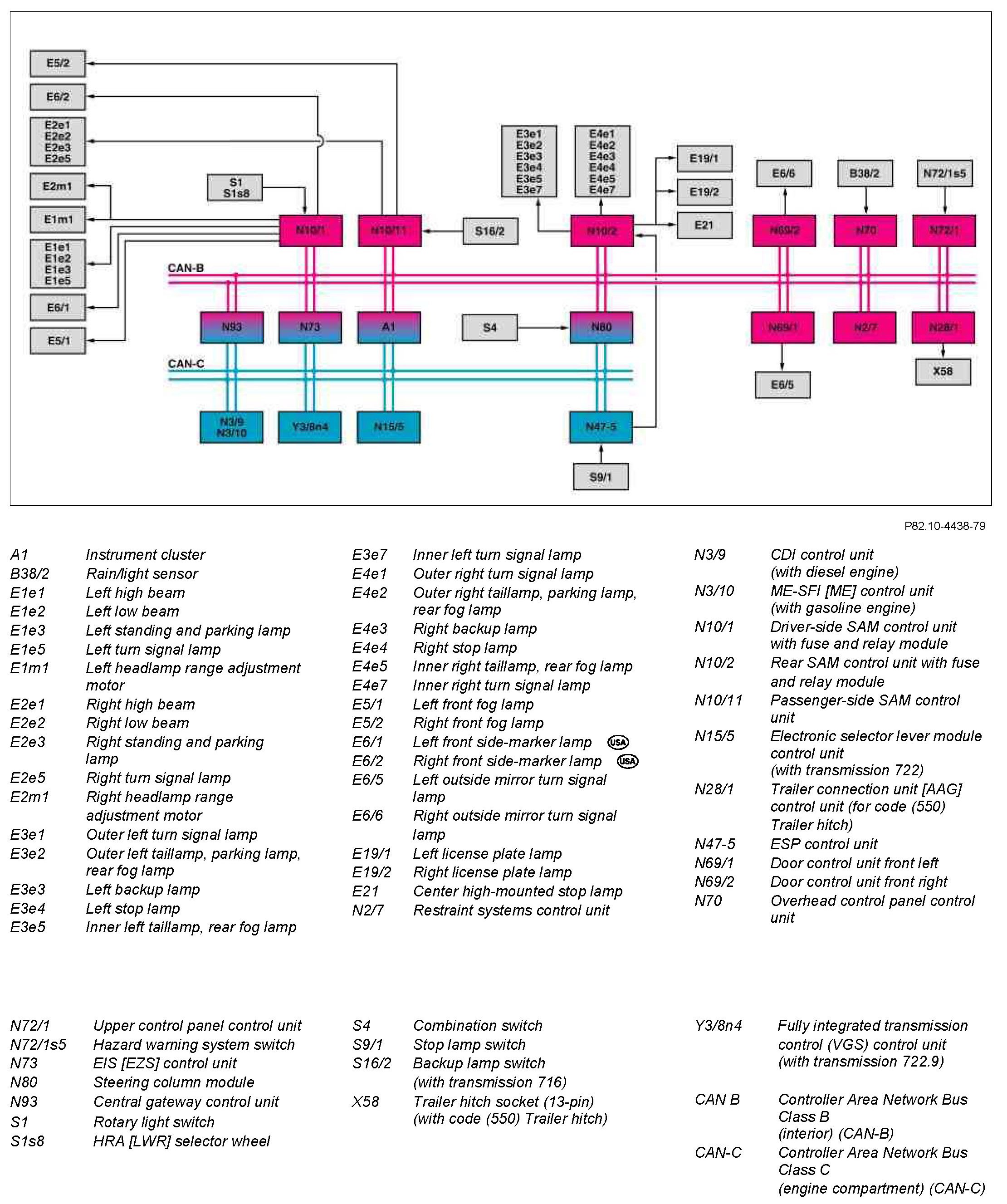

GF82.10-P-0003-03TM Exterior Lights Block Diagram



GF82.10-P-0003-03TM Exterior Lights Block Diagram
- except CODE (614) Bi-xenon headlamp unit
- except CODE (618) Bi-xenon headlamps


Component Identification:
