GF40.15-P-0001-03TR Tire Pressure Monitor (RDK) Displaying Tire Inflation Pressure

GF40.15-P-0001-03TR Tire pressure monitor (RDK) displaying tire inflation pressure
- 211 as of 1.6.05
- with CODE (475) Tire pressure monitor (Siemens)
- except CODE (494) USA version
- except CODE (498) Japan version
- 211 as of 1.7.05
- with CODE (475) Tire pressure monitor (Siemens)
- with CODE (494) USA version






Tire pressure display
The absolute pressure of individual tires is displayed in the multifunction display (A1p13) of the instrument cluster (A1).

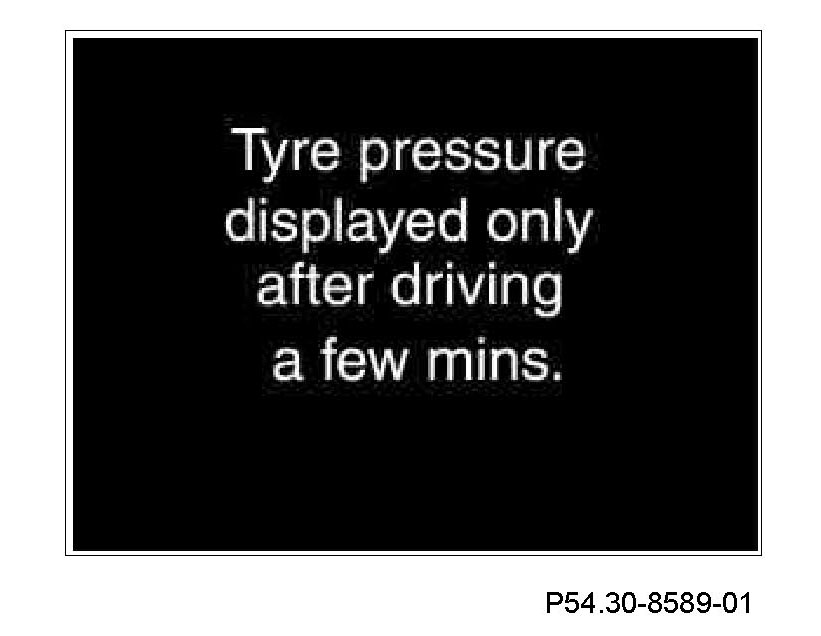

System message
Brief fading in of this system message

This is the case, if after an ignition start current values are still not available from the TPM wheel sensor. The same applies, if TPM wheel sensors are exchanged or other wheels are fitted. In these cases the TPM checks whether changes in the wheel have resulted. The pressure values are only displayed if a clear assignment was detected by the TPM system.

Individual wheel detection and management by the tire pressure monitor (TPM)

Detection of wheels and wheel sensors after the start of a journey:
^ Detects known wheels after 1 minute, at a speed of more than 25 km/h
^ Detects new wheels after a maximum of 3 minutes, at a speed of more than 25 km/h
^ Detects a missing TPM wheel sensor after a maximum of. 10 minutes, at a speed of more than 25 km/h The TPM [RDK] control unit (N88) evaluates the signals from the TPM wheel sensors and stores the corresponding wheel IDs.

The TPM [RDK] control unit (N88) evaluates the signals from the TPM wheel sensors and stores the corresponding wheel IDs.

Automatic axle assignment after the start of a journey:
^ Axle assignment of known wheels at a speed of more than 25 km/h (confirmation)
^ Axle assignment of new wheels under 300 seconds at a speed of more than 25 km/h (e.g. spare wheel fitted)

Automatic side assignment after the start of a journey:
^ Side assignment of wheels (front axle), after a maximum of 360 seconds at a speed of more than 25 km/h by evaluating signals from the front wheel antenna (TPM)
^ Side assignment of wheels (rear axle), after a longer journey with several curves at a speed of 35 to 80 km/h (by evaluating the steering angle and the different rear left and right wheel speeds)
