Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Heating and Air Conditioning >> Service and Repair >> Procedures >> AR83.30-P-5253PA Correct Oil Level In Air Conditioning System If System Is Suddenly Drained

AR83.30-P-5253PA Correct Oil Level In Air Conditioning System If System Is Suddenly Drained



AR83.30-P-5253PA Correct Oil Level In Air Conditioning System If System Is Suddenly Drained

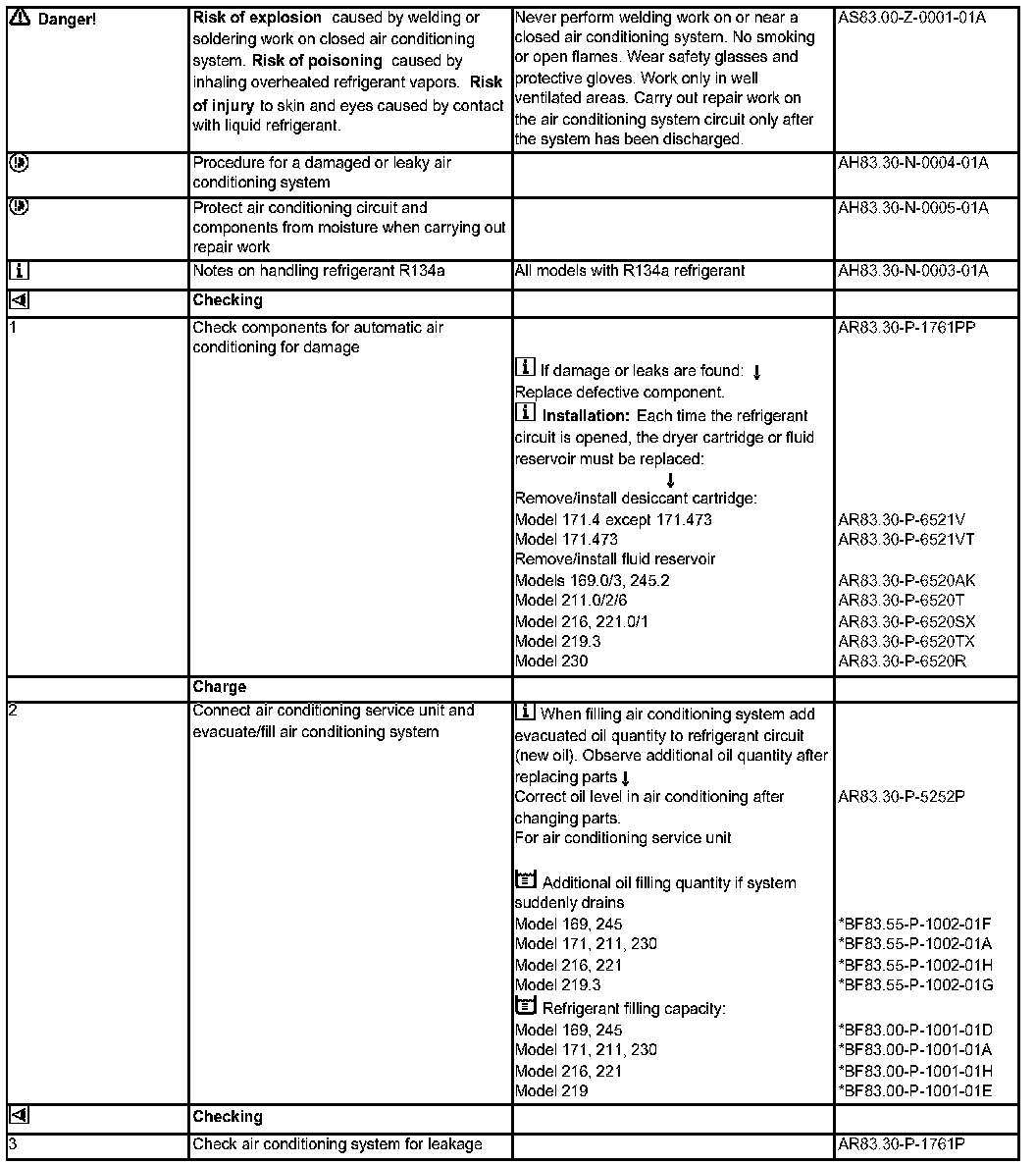

Steps 1 - 3:

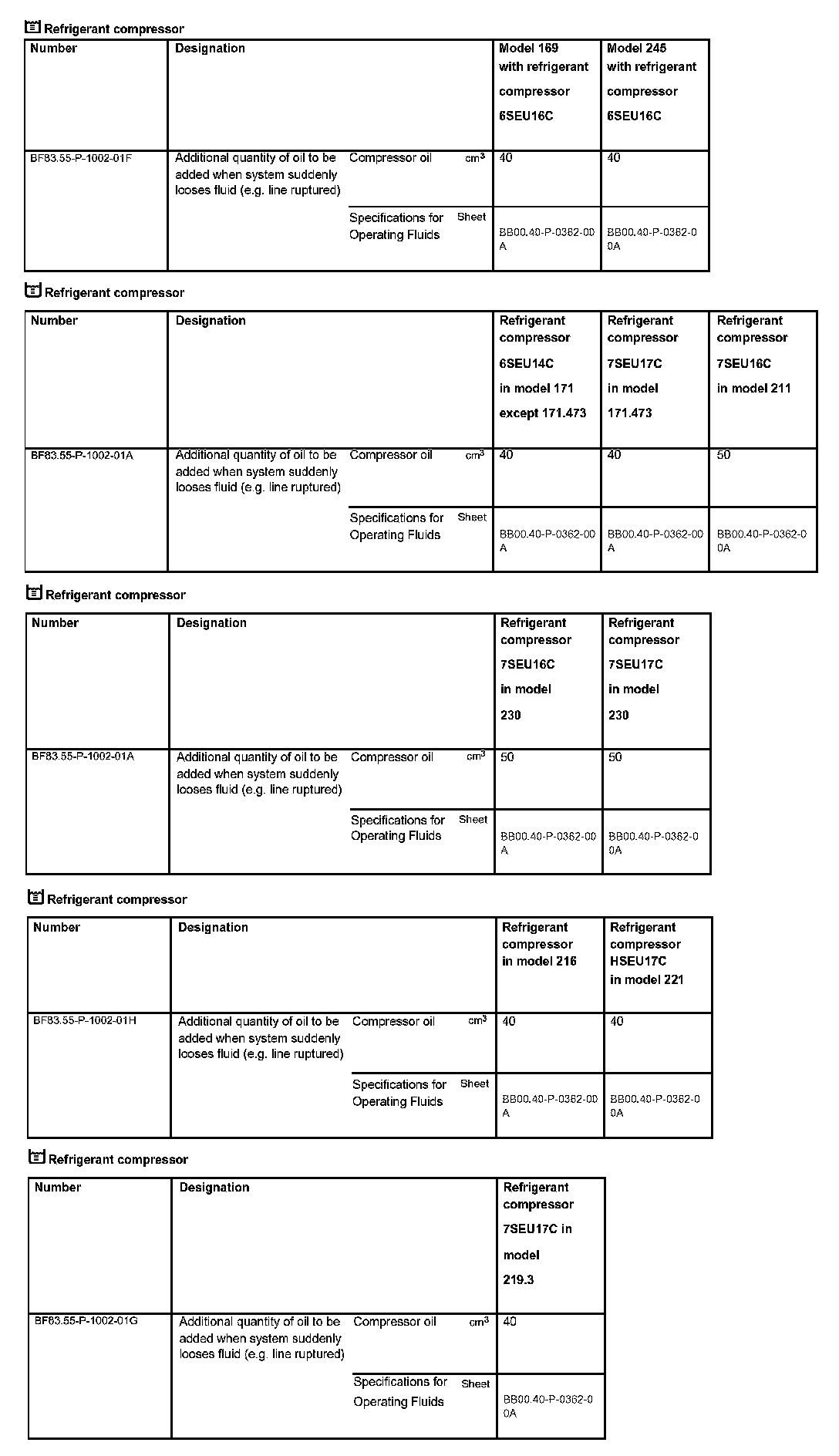

Refrigerant Compressor:

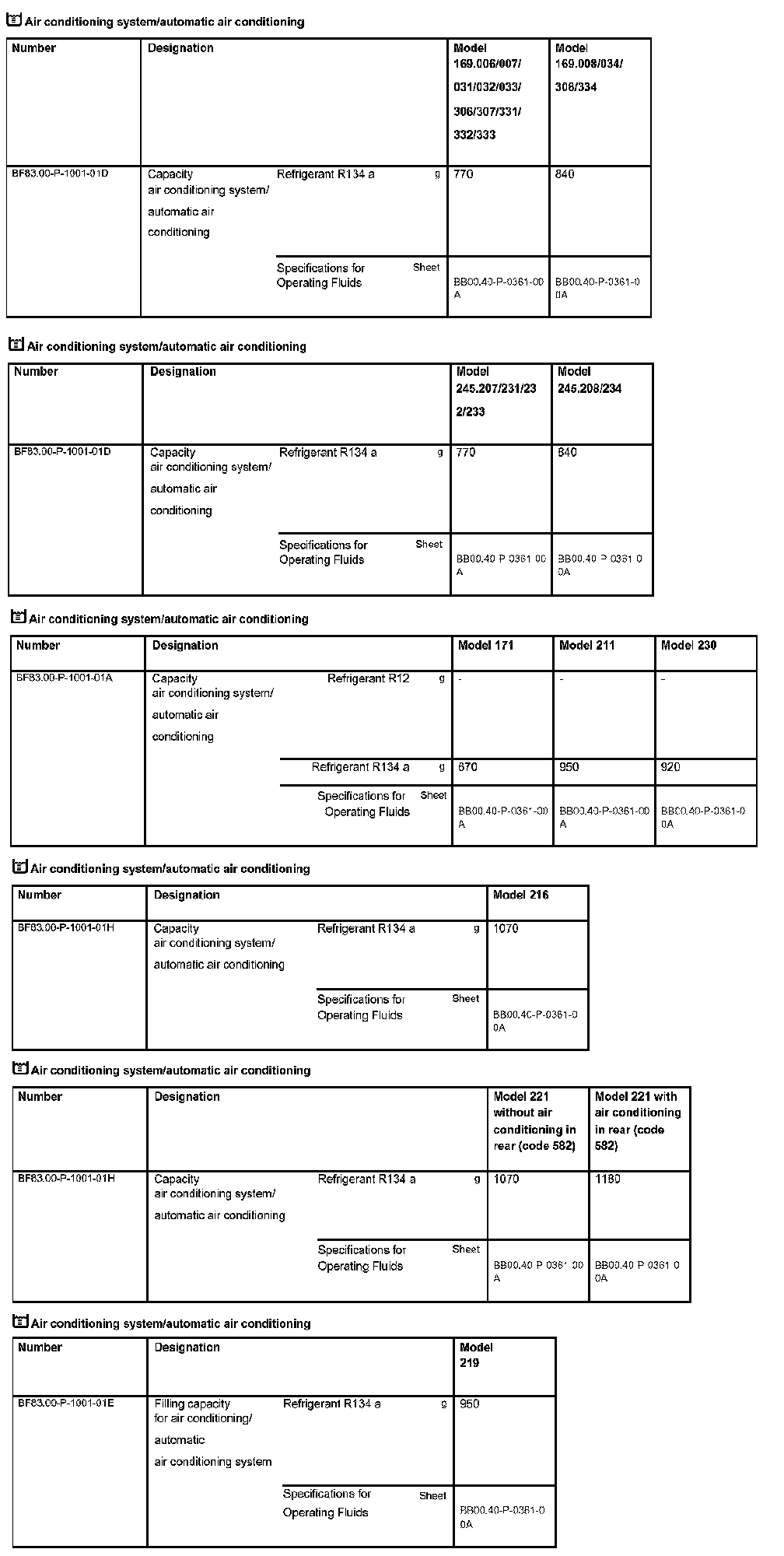

Air Conditioning System/Automatic Air Conditioning:
