Comfort Automatic Air Conditioning (C-AAX) (K-KLA), Location of Components



GF83.40-P-0004-03T Comfort Automatic Air Conditioning (C-AAC) [K-KLA], Location Of Components
- with CODE (581) Comfort automatic air conditioning

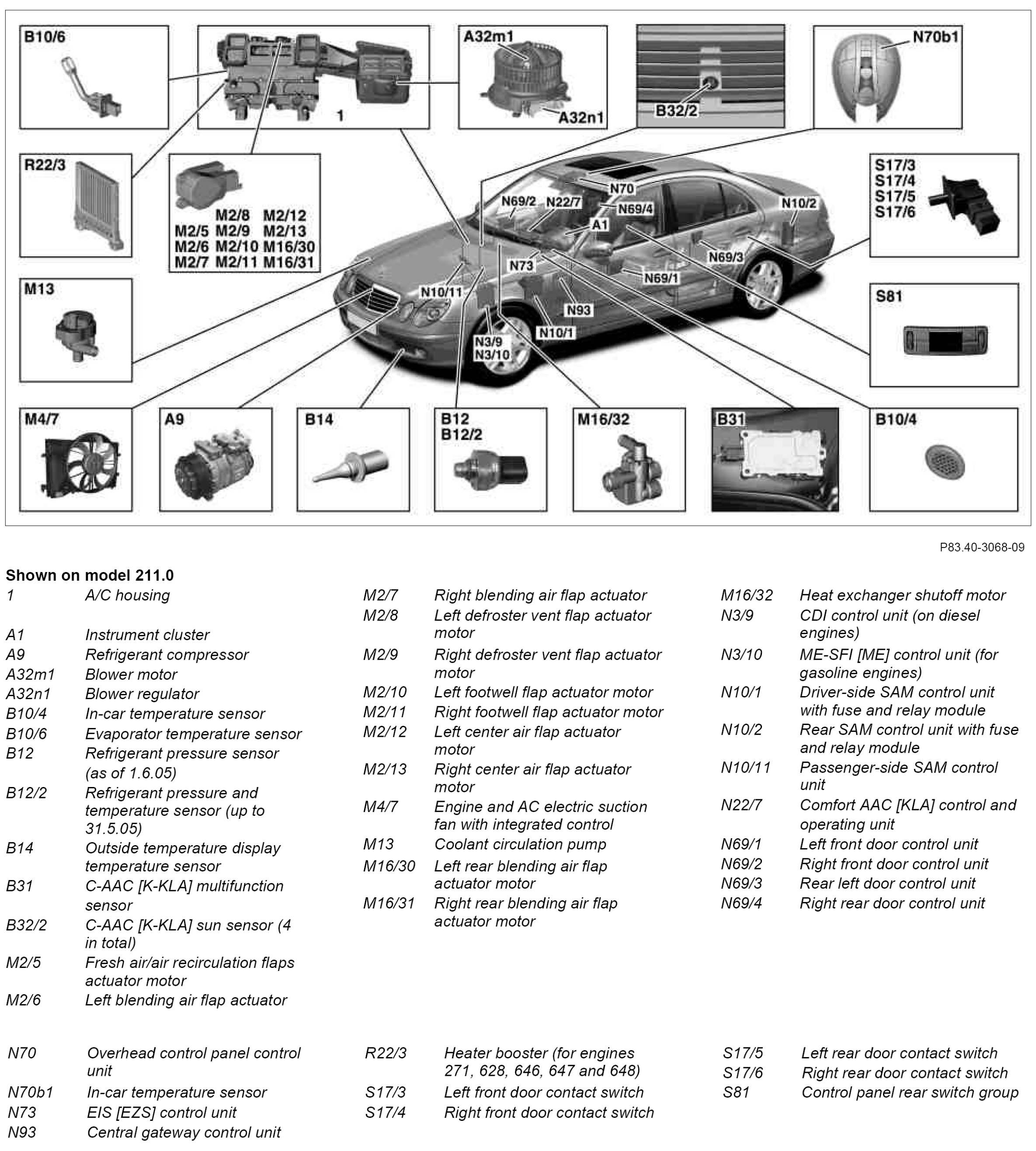

Component Identification:
