GF83.50-P-2120-01TT Rear Air Conditioning Operating Module, Task

GF83.50-P-2120-01TT Rear Air Conditioning Operating Module, Task
- with CODE (581b) Convenience automatic air conditioning

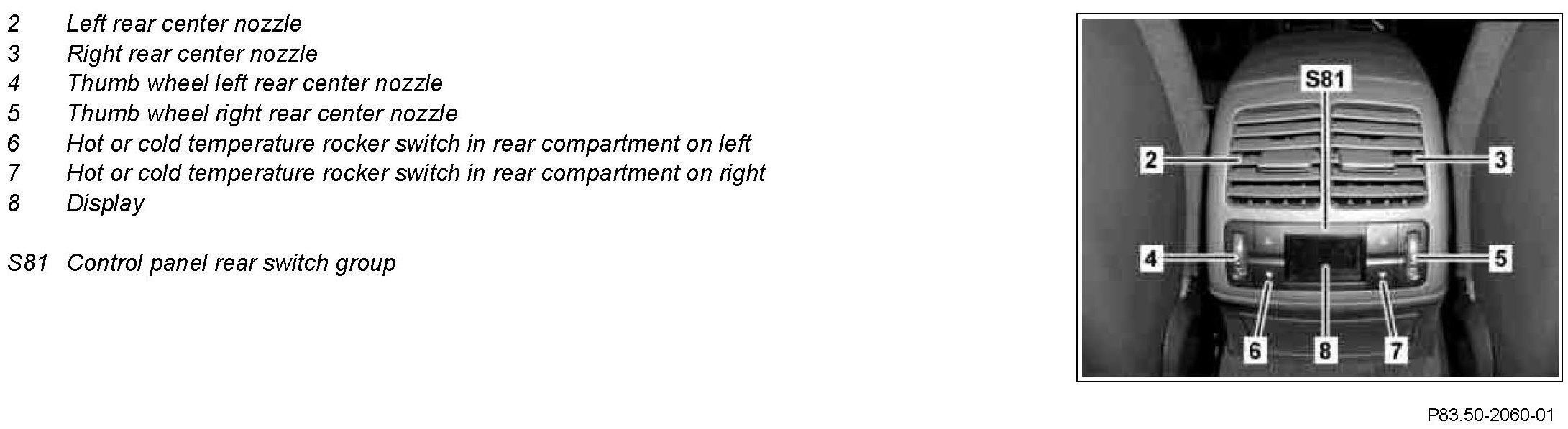

Component Identification:

Task
All the functions for climate control of the vehicle rear compartment can be selected via the control panel rear switch group (S81).

Hot or cold temperature switch in rear compartment on left (6) and hot/cold temperature switch in rear compartment on right 7)
By pressing the hot or cold temperature switch in rear compartment on left (6) or hot or cold temperature rocker switch in rear compartment on right (7) on the control panel rear switch group (S81), the desired interior temperature for the rear compartment can be set separately for the left and right. In the process the left rear blending air flap actuator (M16/30) or right rear blending air flap actuator motor (M16/31) in the comfort automatic air conditioning is actuated by the comfort AAC control and operating unit (N22/7).

Thumb wheel for rear compartment center nozzle on left (4) and thumb wheel for rear compartment center nozzle on right (5)
Via the left rear center nozzle thumb wheel (4) or the right rear center nozzle thumb wheel (5) the left rear center nozzle (2) or right rear center nozzle (3) can be opened or closed separately for each side as well as regulate the air volume. To open, turn the thumb wheels upward.

Display (8)
Basically the display serves to inform the rear occupants about the adjustments of the rear temperature control. The information is in symbols and figures.
The temperature is given in the display.
