GF83.10-P-2182T Air Ducting, Location/Task/Function

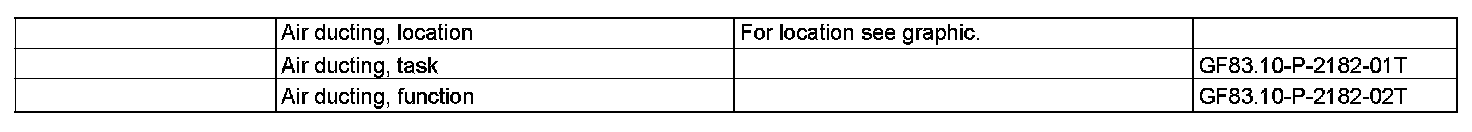

GF83.10-P-2182T Air Ducting, Location/task/function

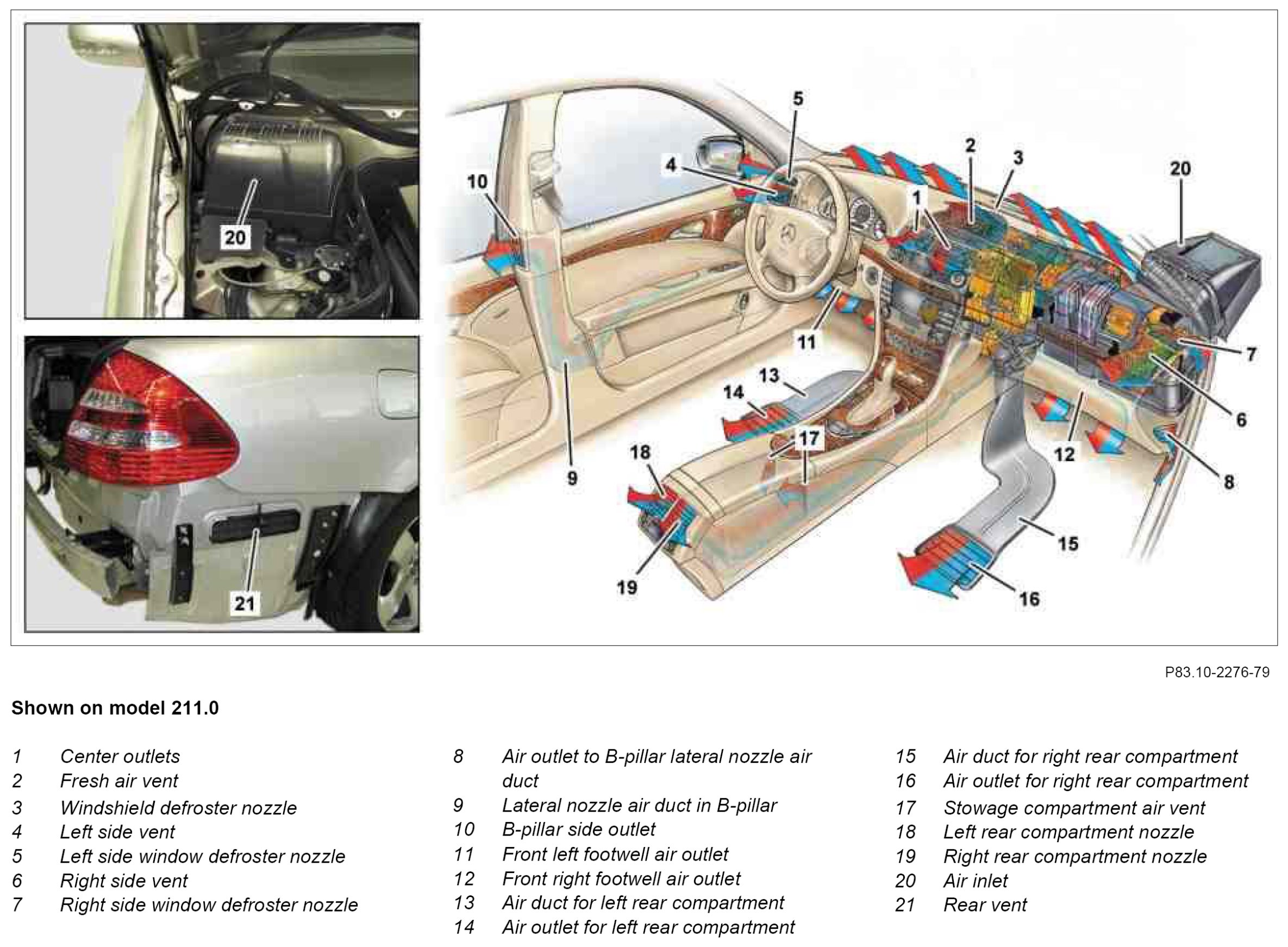

Component Identification:
