AR49.10-P-5531-01DA Replacing Rivet Nuts In Exhaust Manifold

AR49.10-P-5531-01DA Replace the rivet nuts in the exhaust manifold.

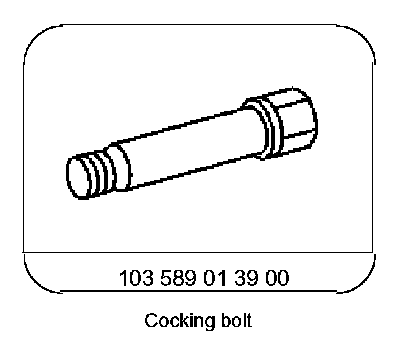

Special Tools:

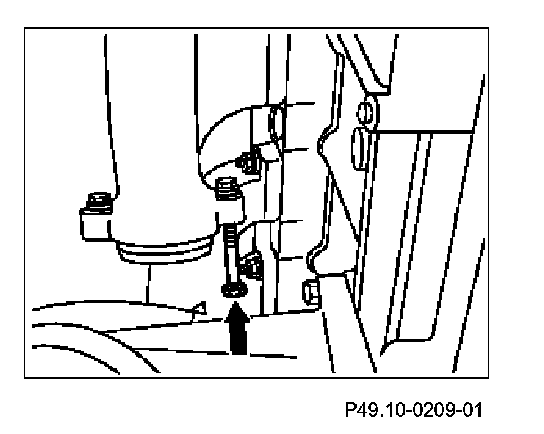

1 Hammer rivet nuts with a suitable bolt (arrow) out of exhaust manifold bores.

Only screw bolt into rivet nut by hand.





2 Insert new rivet bushes into exhaust manifold bore.

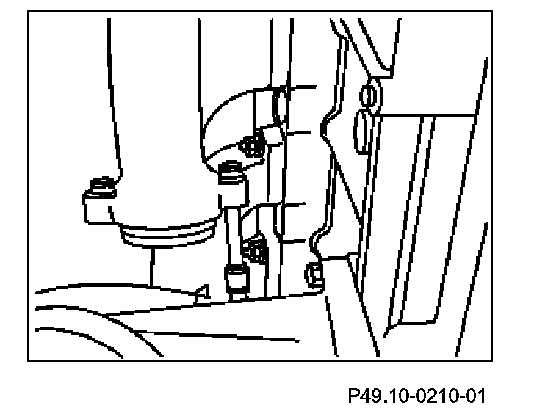

3 Screw cocking bolt into rivet nut and tighten.
4 Unscrew cocking bolt.
