Mechanical Specifications

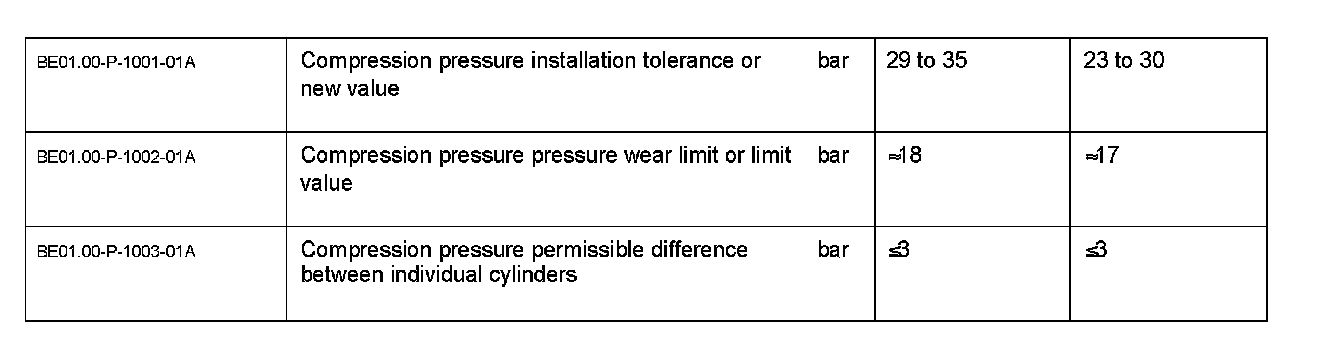

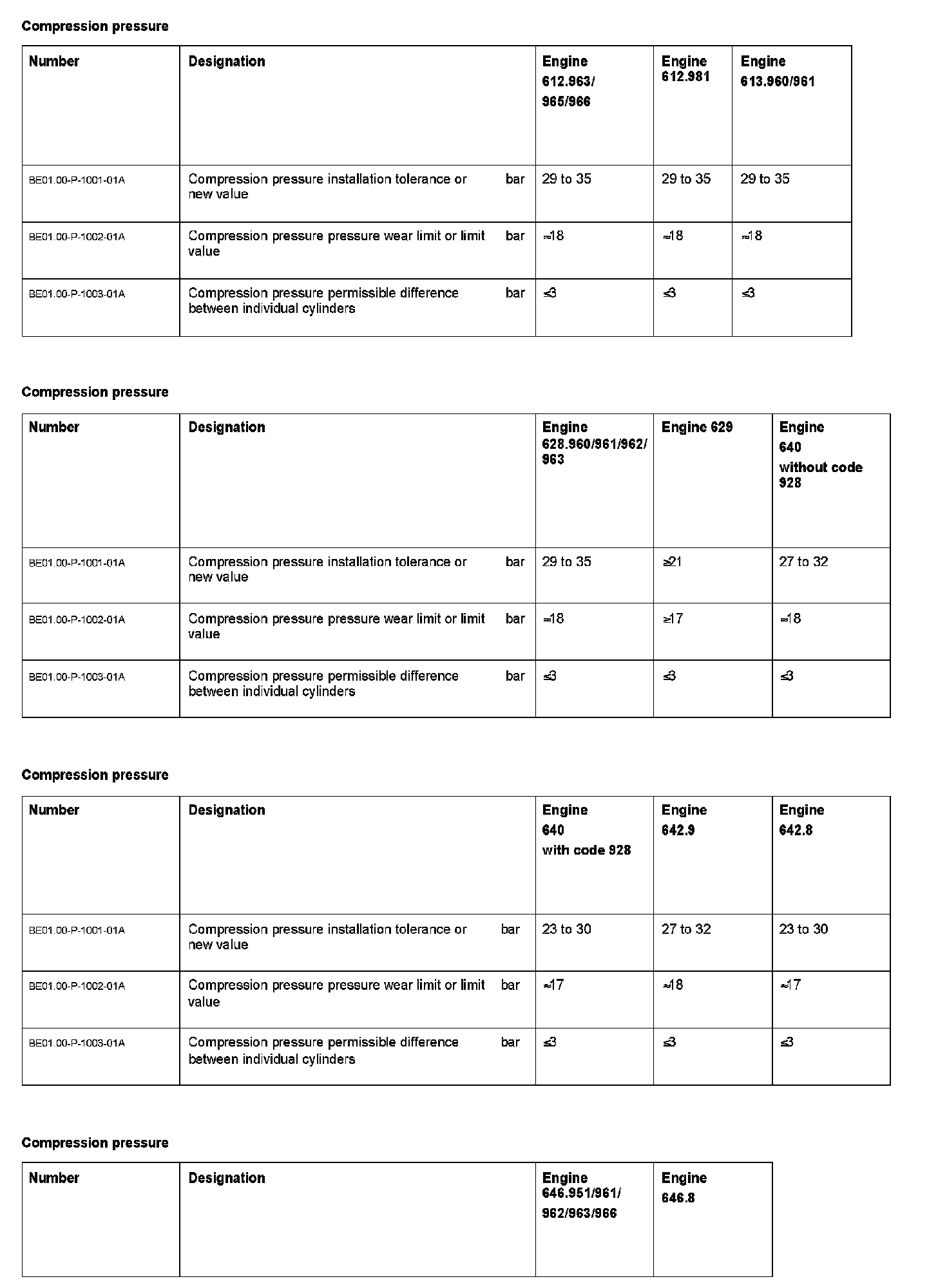

BE01.00-P-1000-01A Compression Pressure
ENGINE 601, 602, 603, 604, 605, 606, 611, 612, 613, 628, 629, 640, 642, 646, 647, 648, 651
