AR01.40-P-8000TI Removing/Installing The Timing Case Cover



AR01.40-P-8000TI Removing/installing the timing case cover

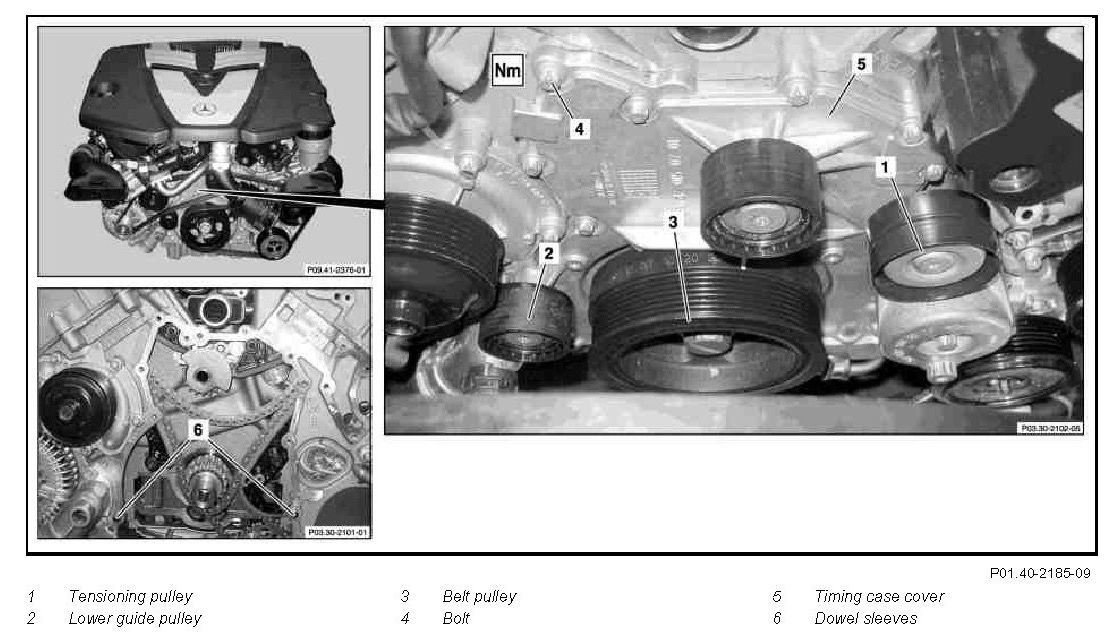

Component Identification:

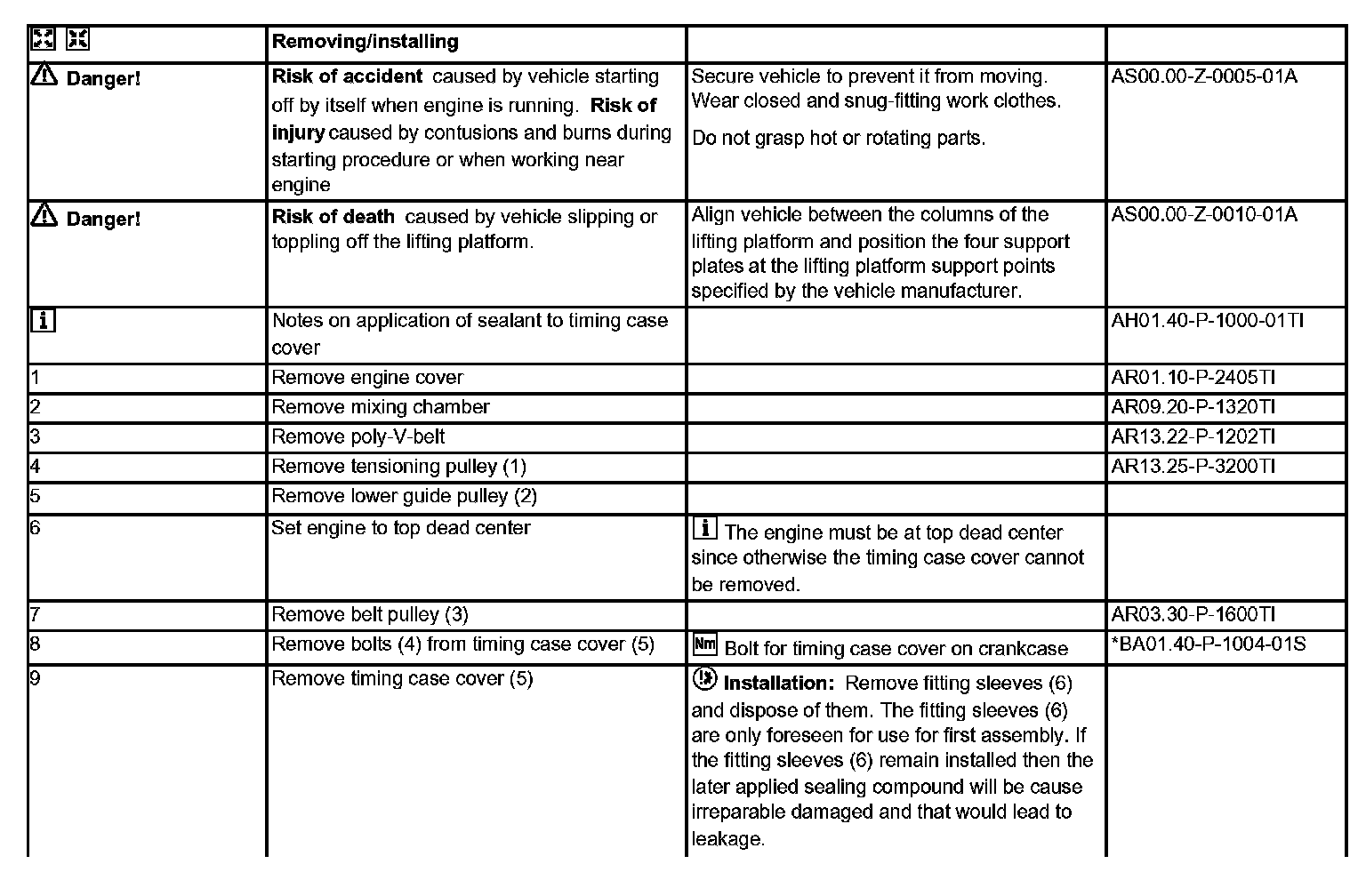

Remove/install Steps 1-9:

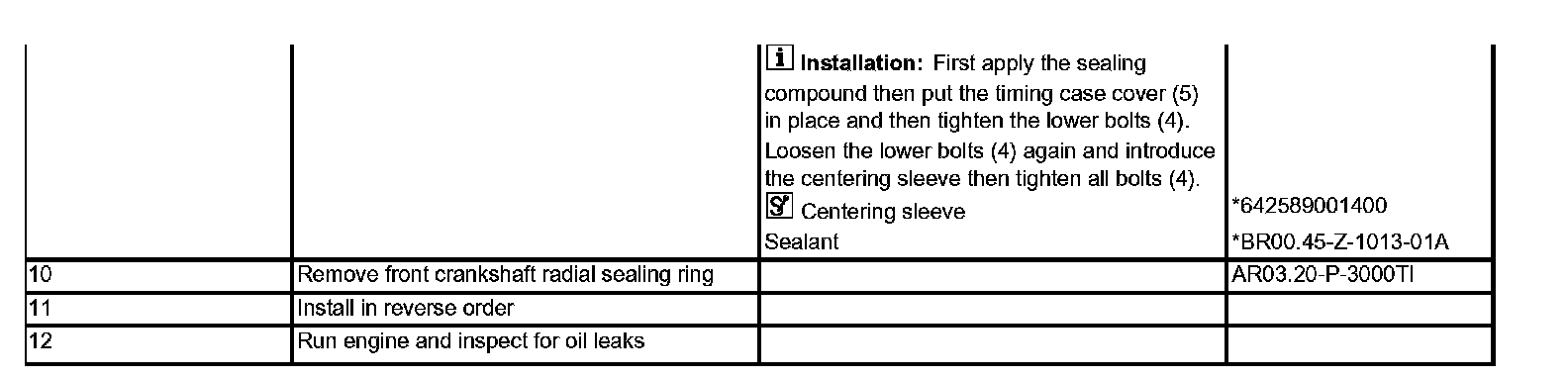

Remove/install Steps 9 (Continued)-12:

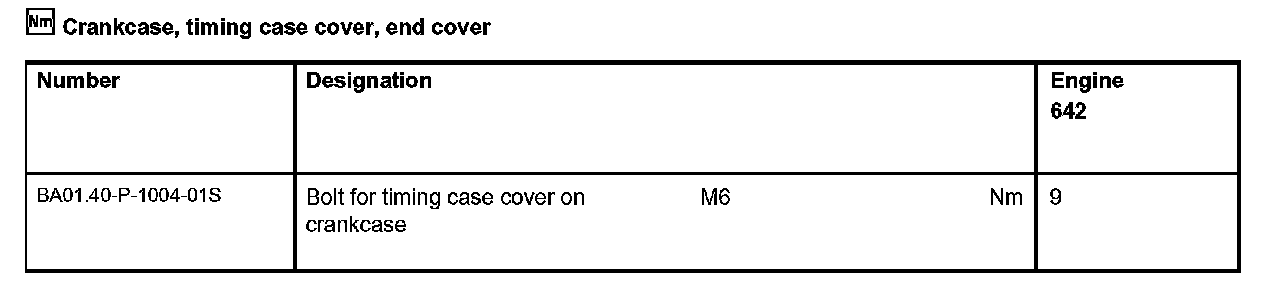

Crankcase, timing case cover, end cover:

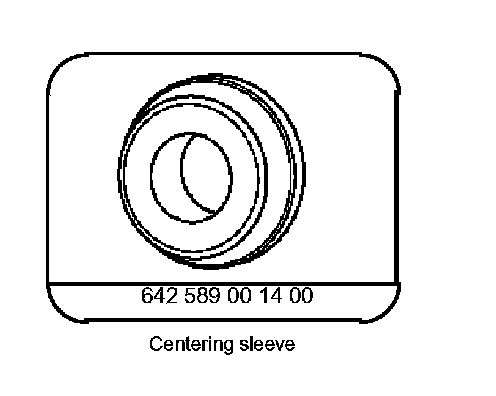

Special Tools:

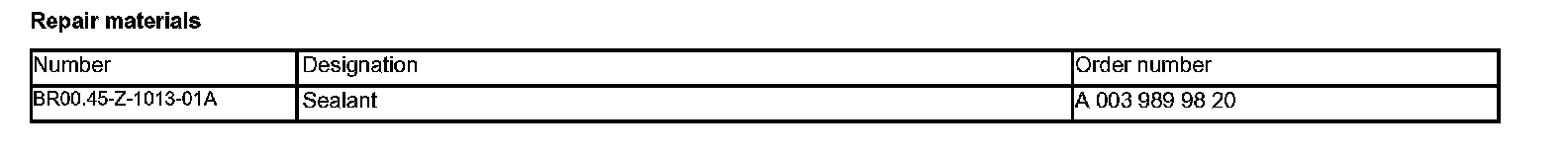

Repair materials:
