AR01.40-P-8000TI Remove/Install Timing Case Cover



AR01.40-P-8000TI Remove/install timing case cover

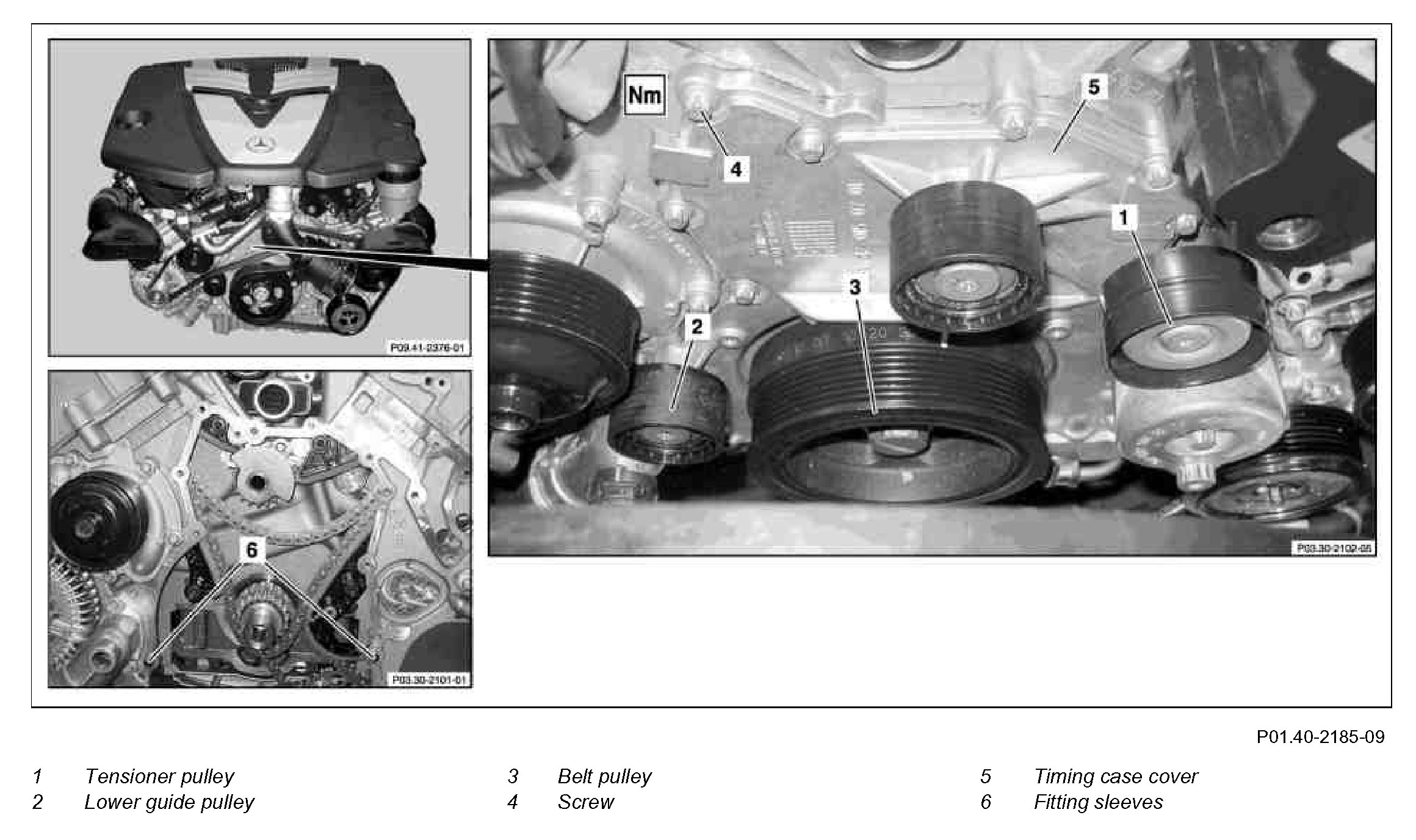

Component Identification:

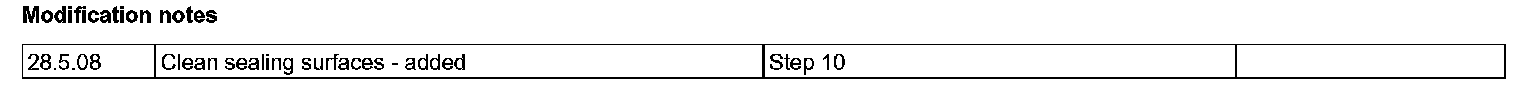

Modification notes:

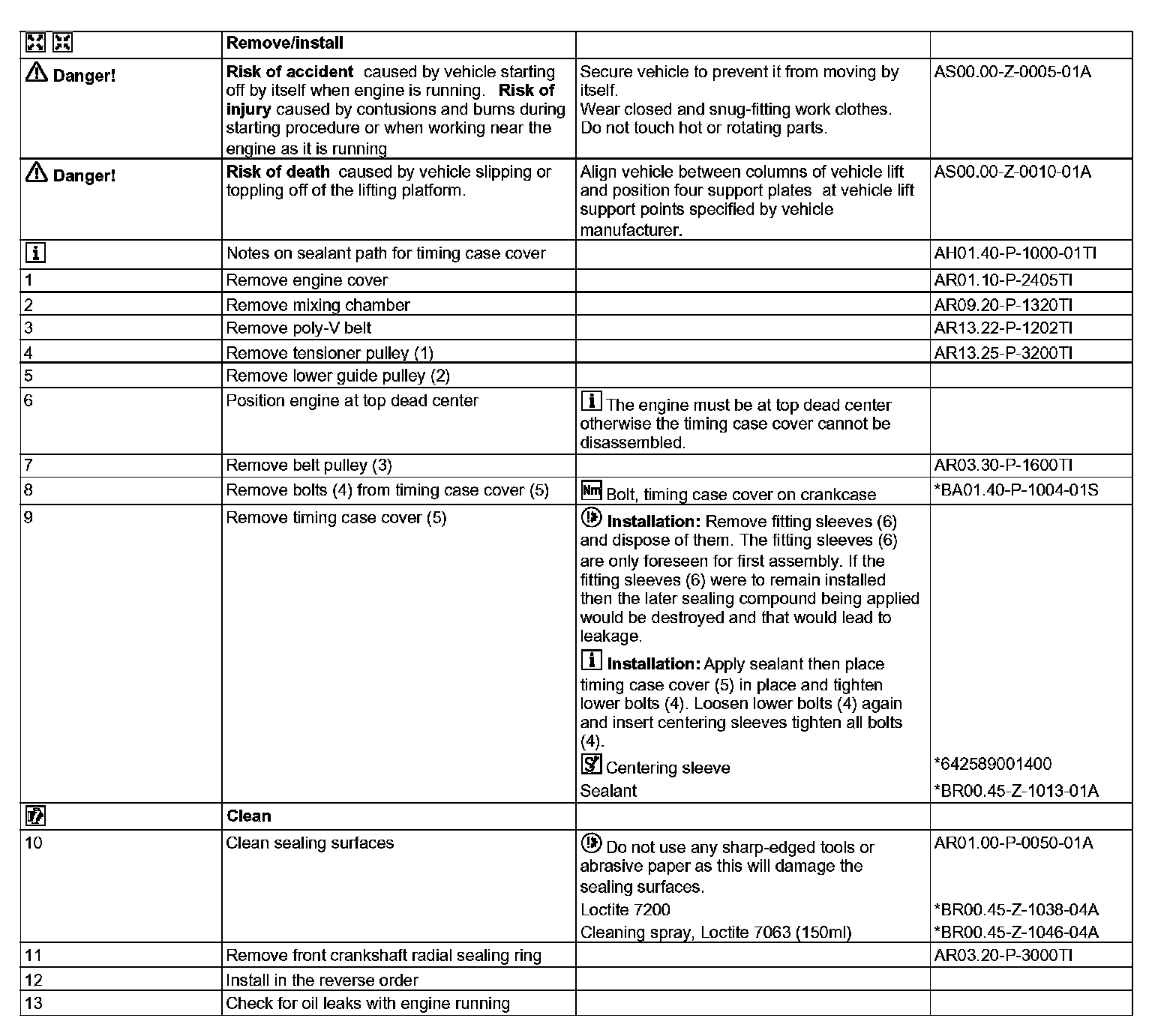

Steps 1-13:

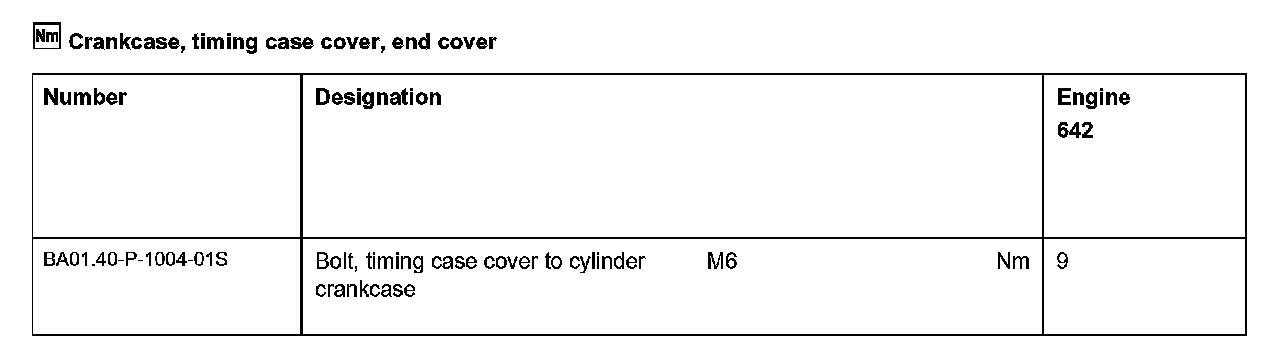

Crankcase, timing case cover, end cover:

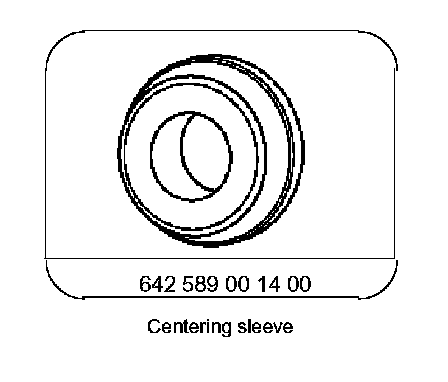

Special Tools:




Repair materials:
