Timing Chain: Testing and Inspection



AR05.10-P-7600TI Check timing chain

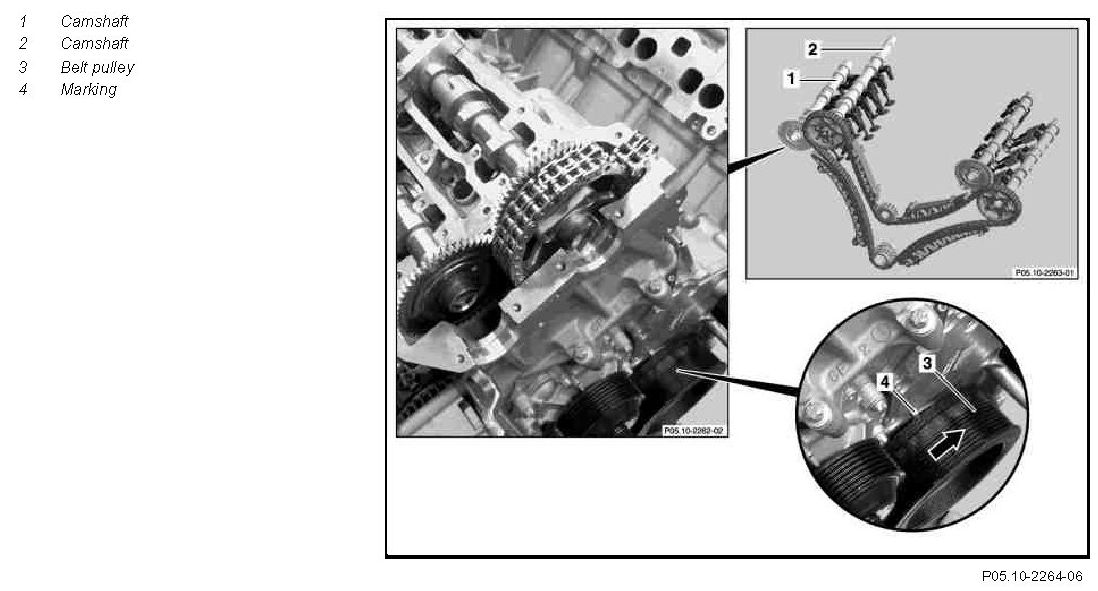

Component Identification:

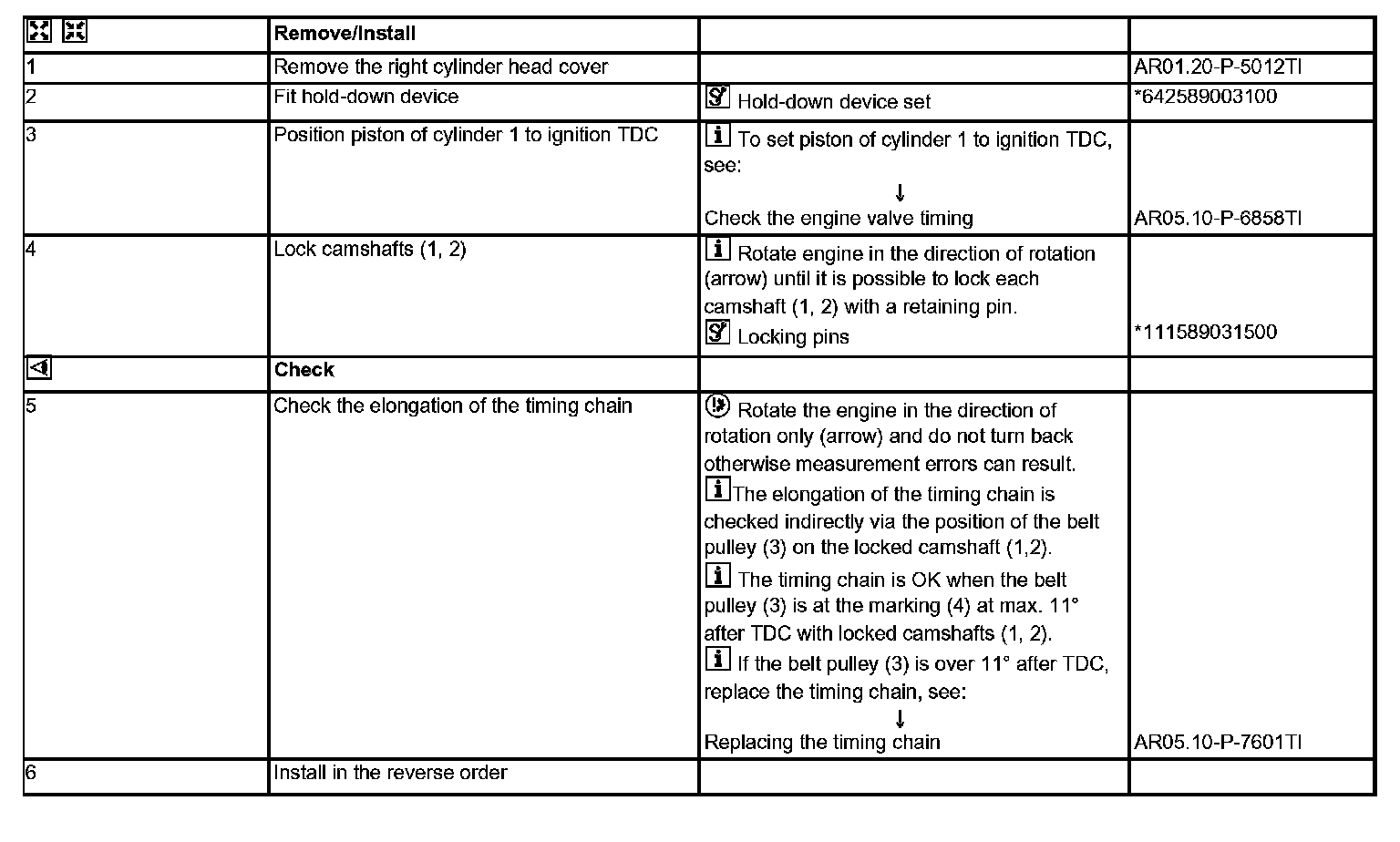

Remove/install Steps 1-6:

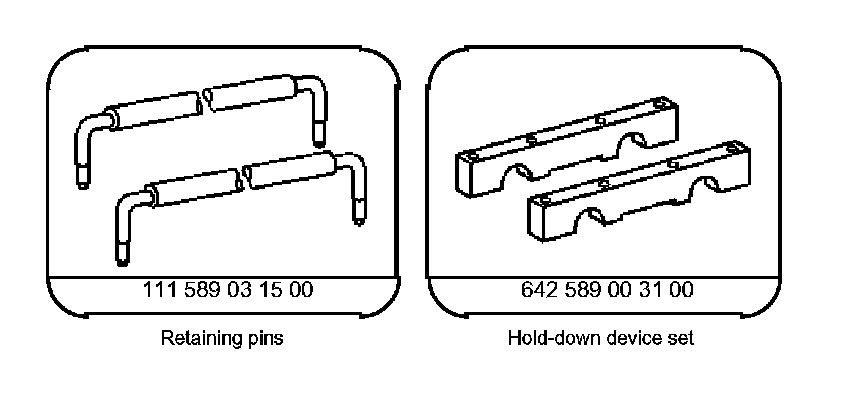

Special Tools:
