Removal and Replacement
AR05.10-P-7601TI Replacing the timing chain

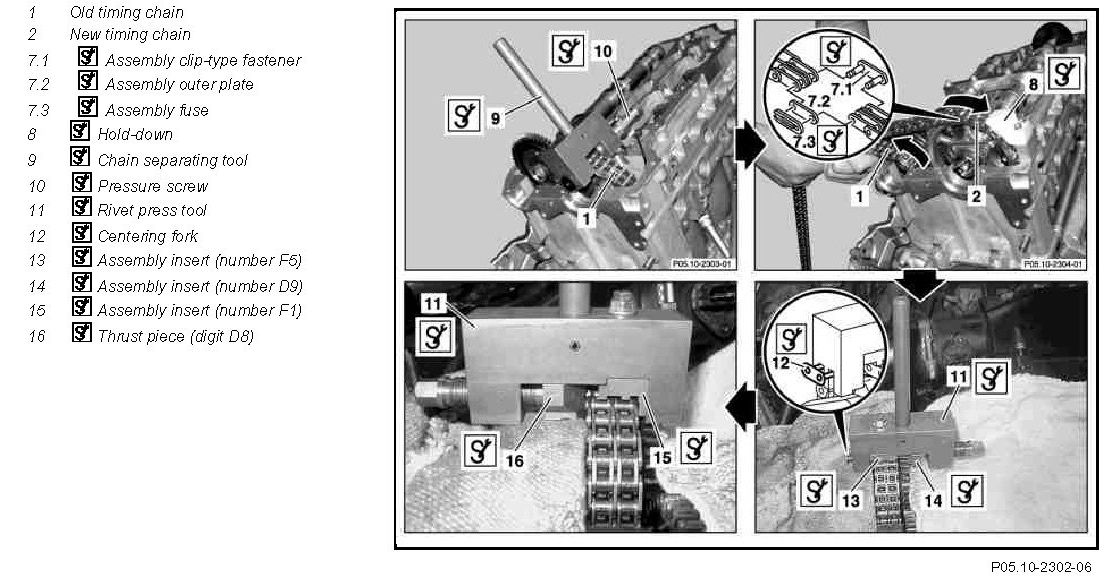

Component Identification:
Component Identification:
Remove:

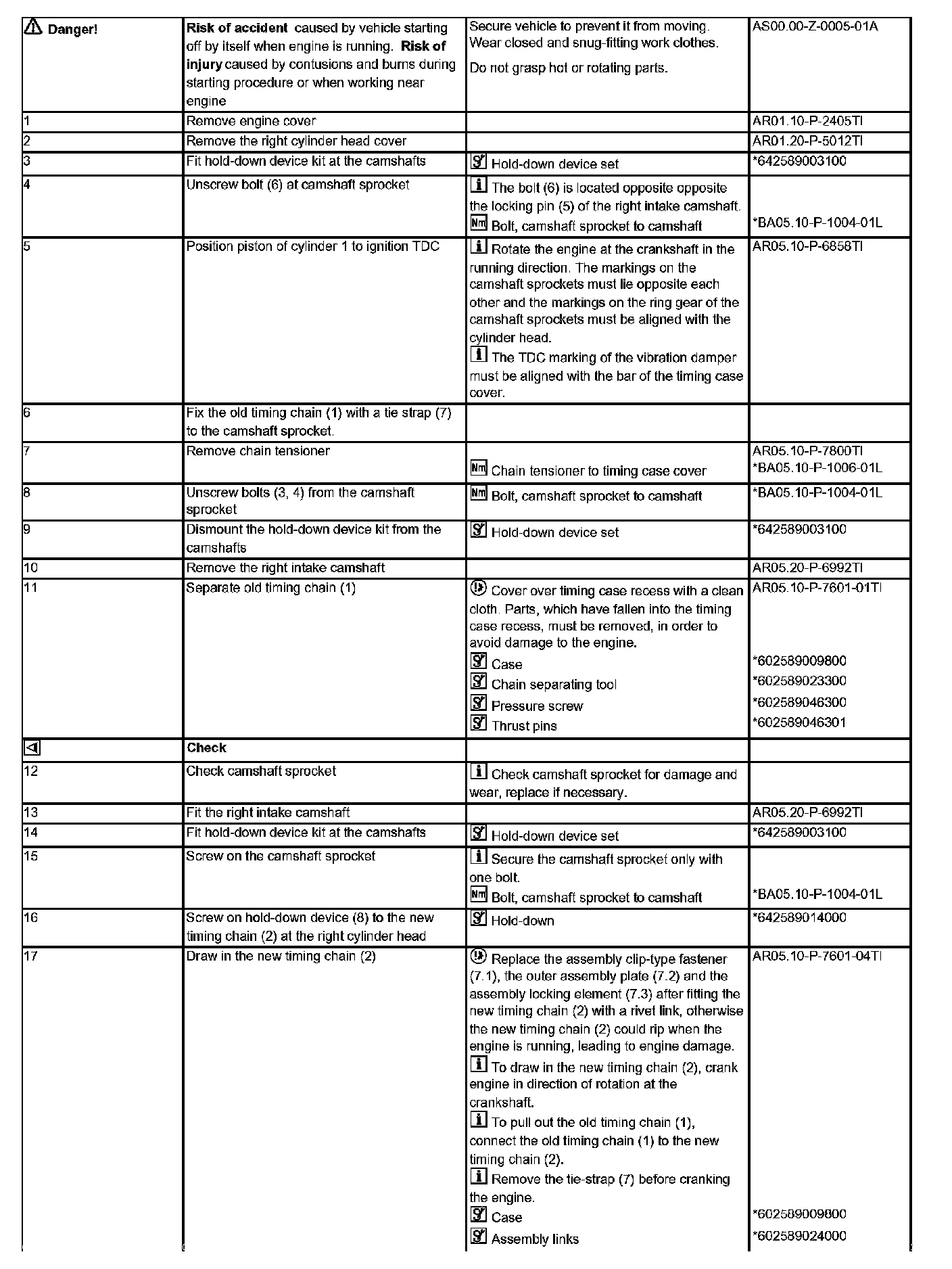

Steps 1-17:

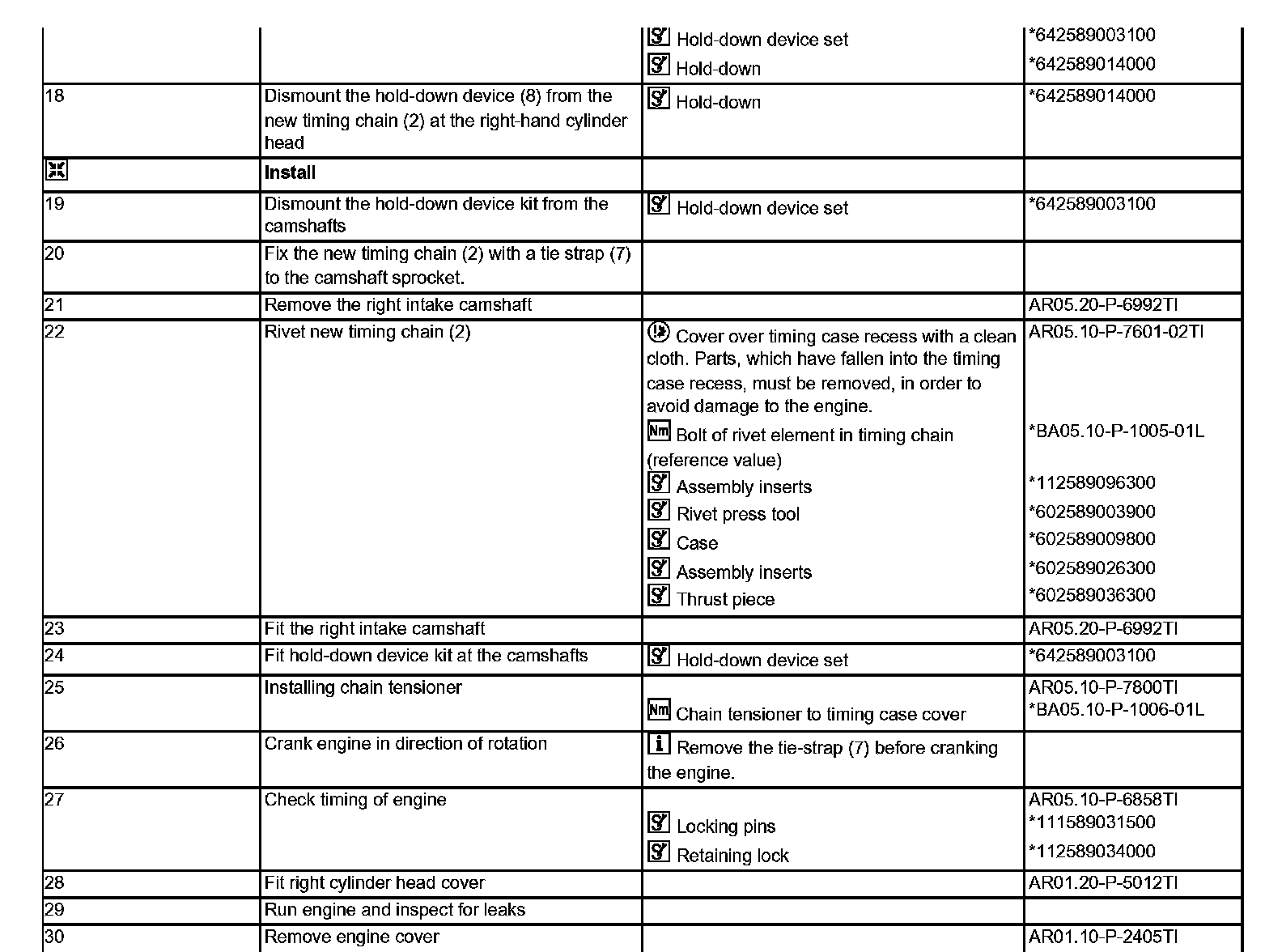

Steps 17 (Continued)-30:

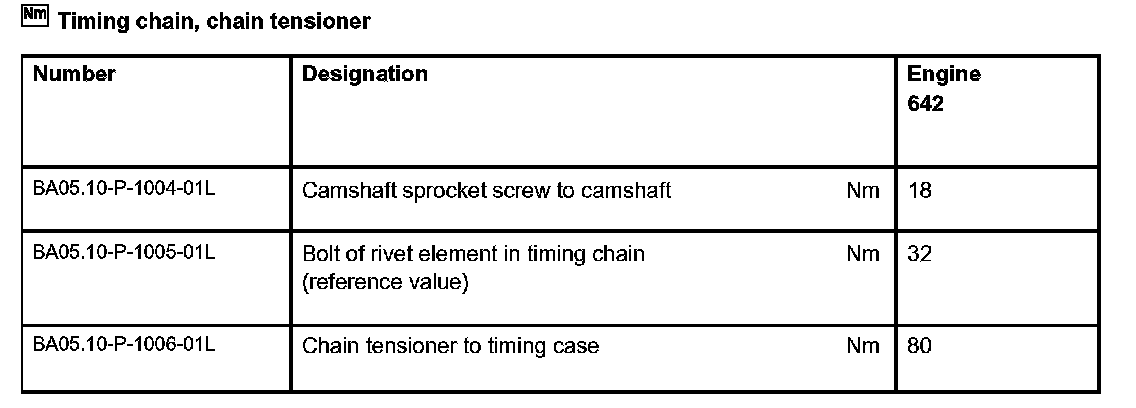

Timing chain, chain tensioner:

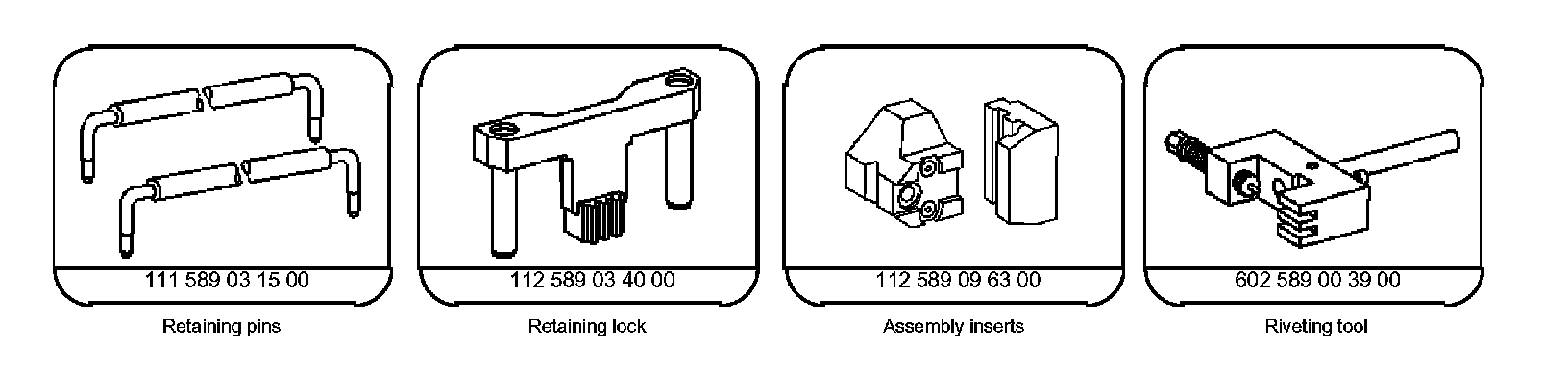

Special Tools:

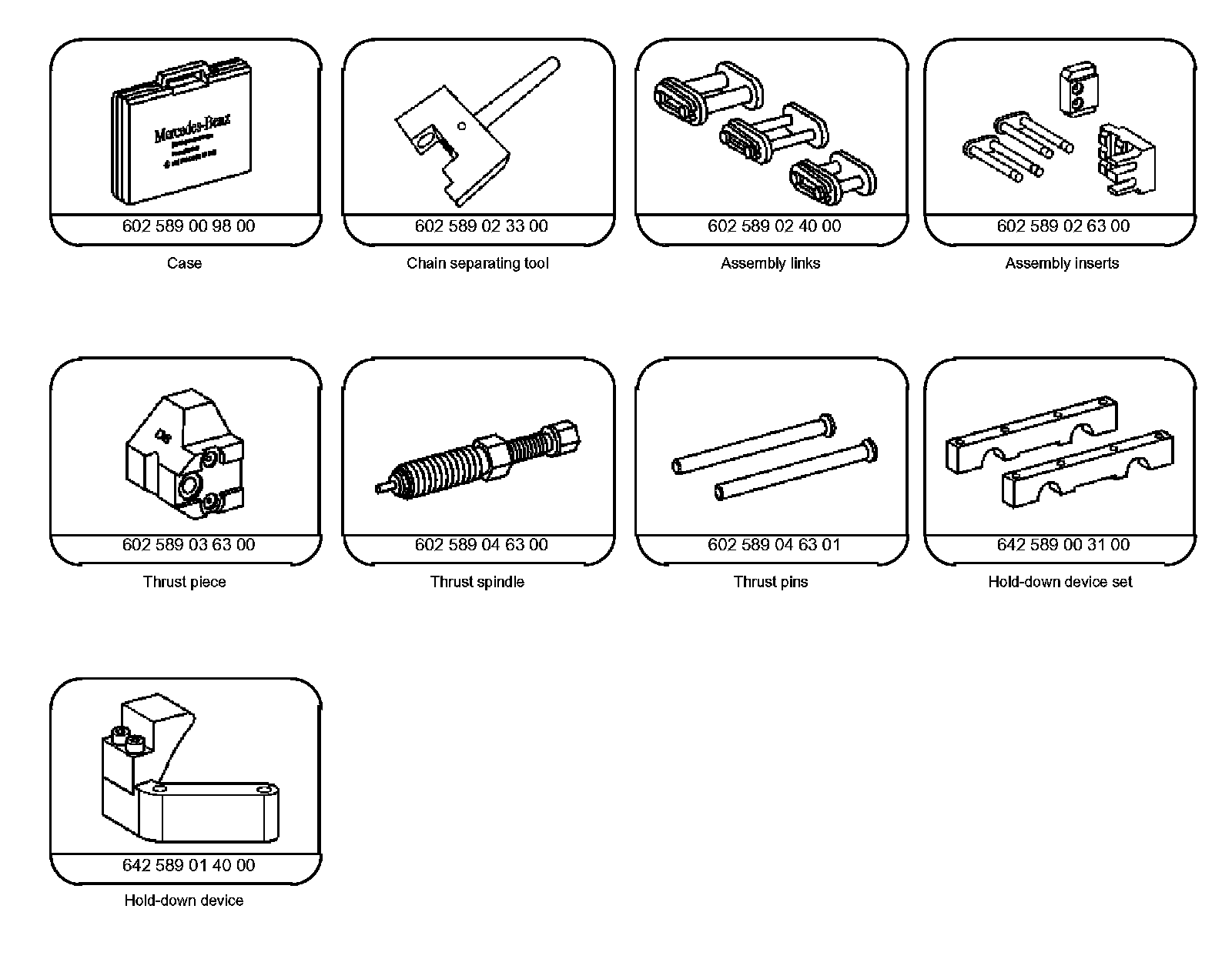

Special Tools:
AR05.10-P-7601TI Replacing the timing chain
