Timing Chain Guide: Service and Repair
AR05.10-P-8484TI Remove/install slide rail in timing case cover

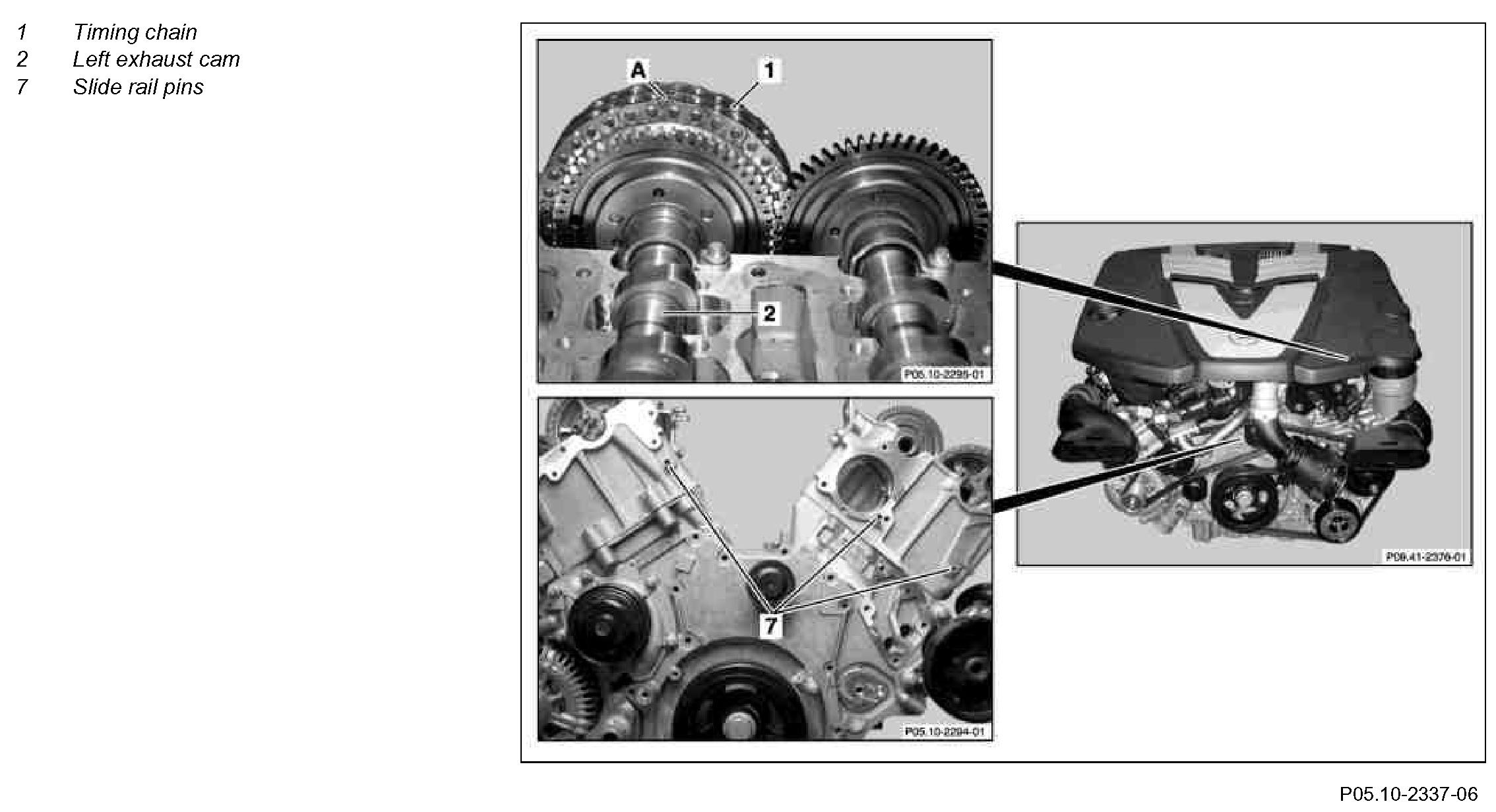

Component Identification:

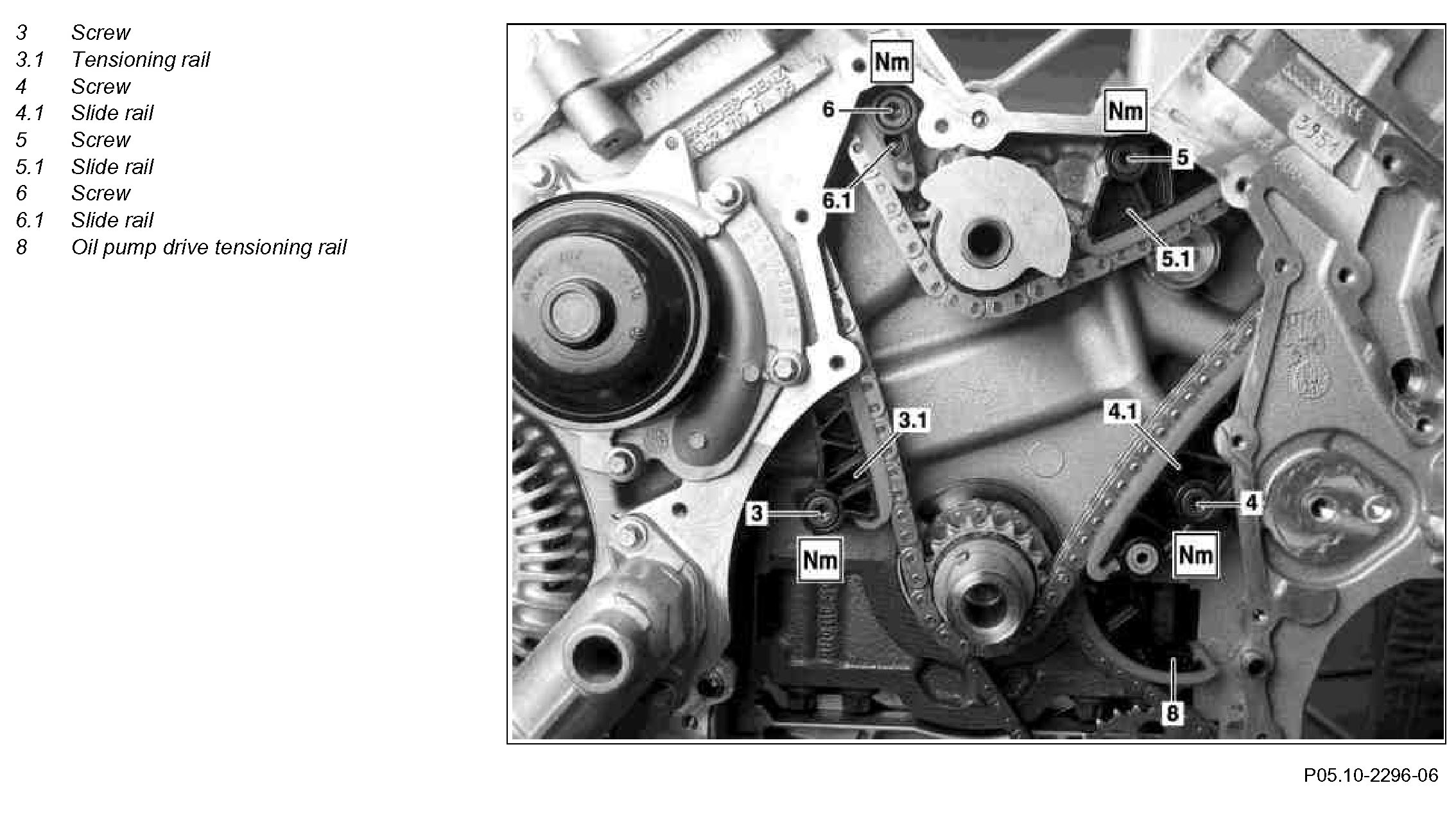

Component Identification:

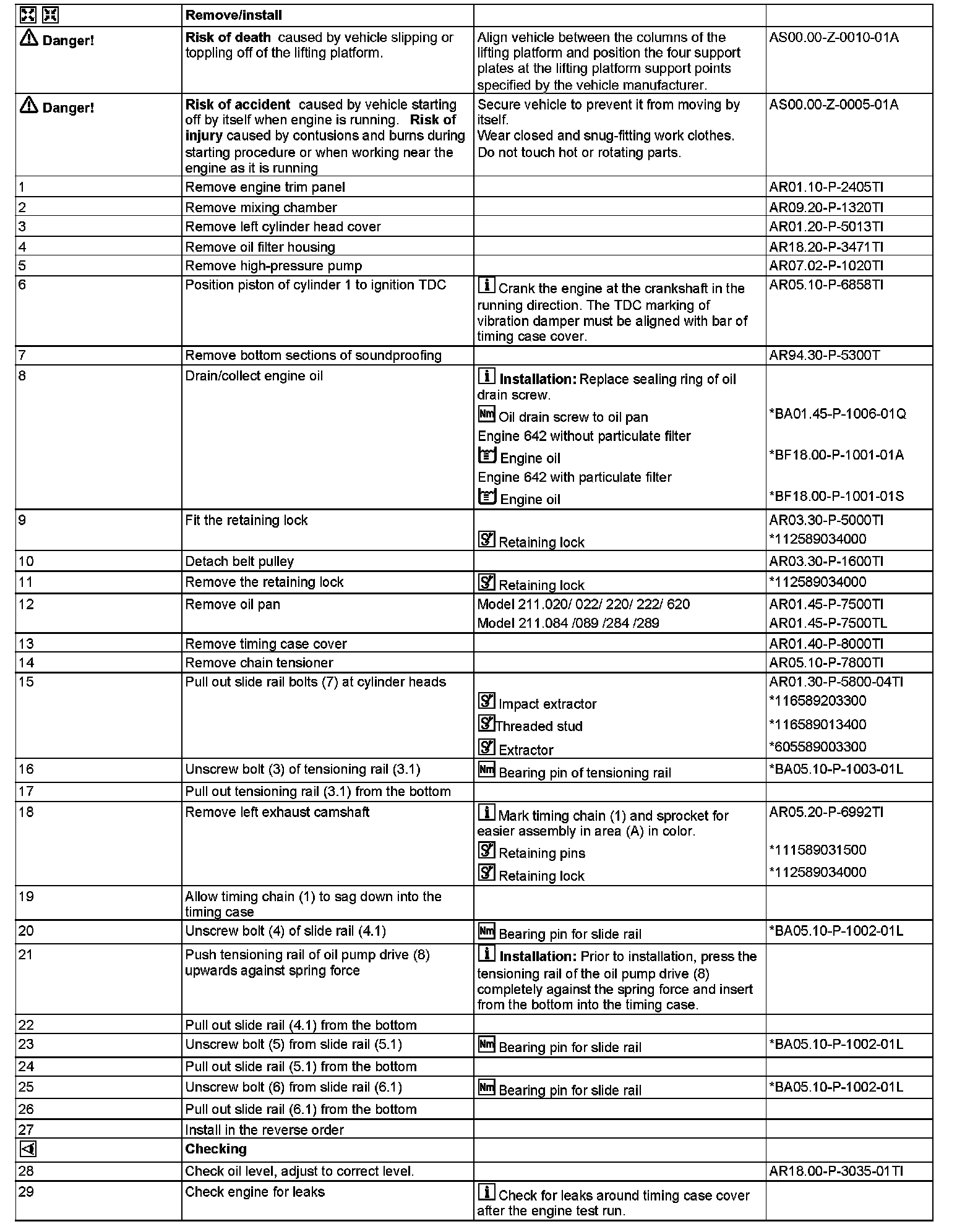

Steps 1-29:

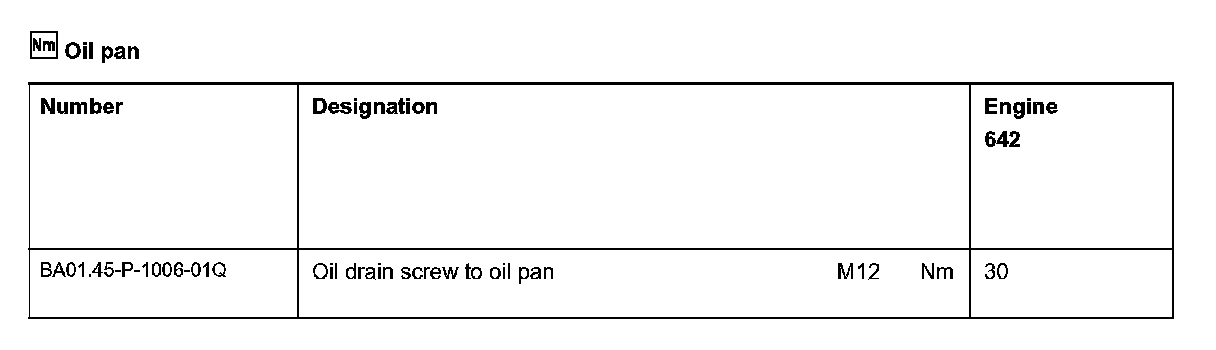

Oil pan:

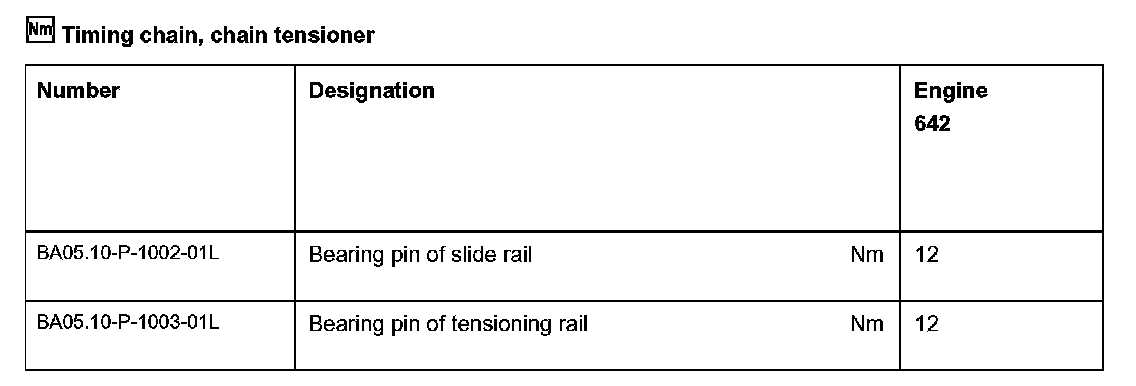

Timing chain, chain tensioner:

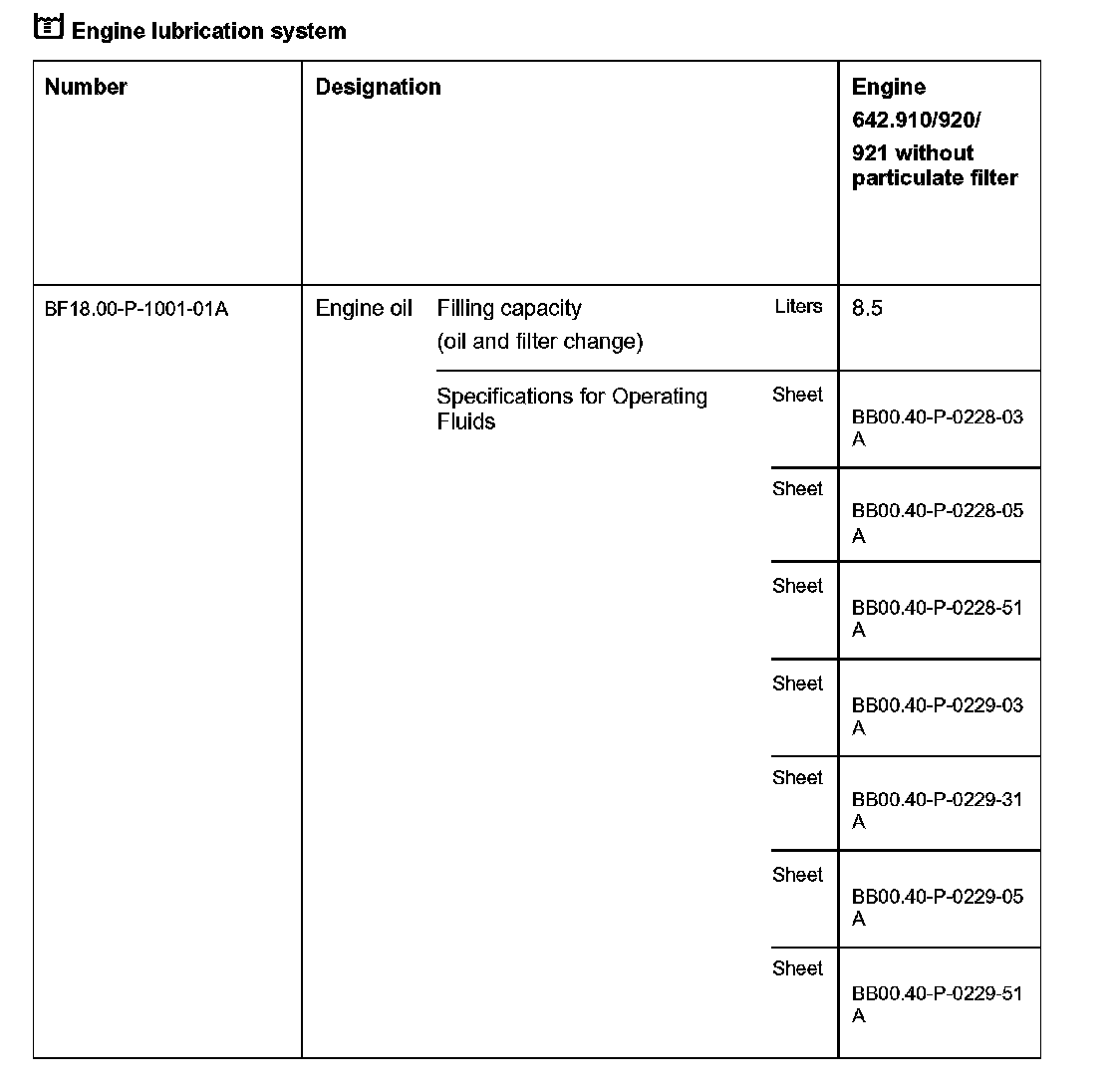

Engine lubrication system:

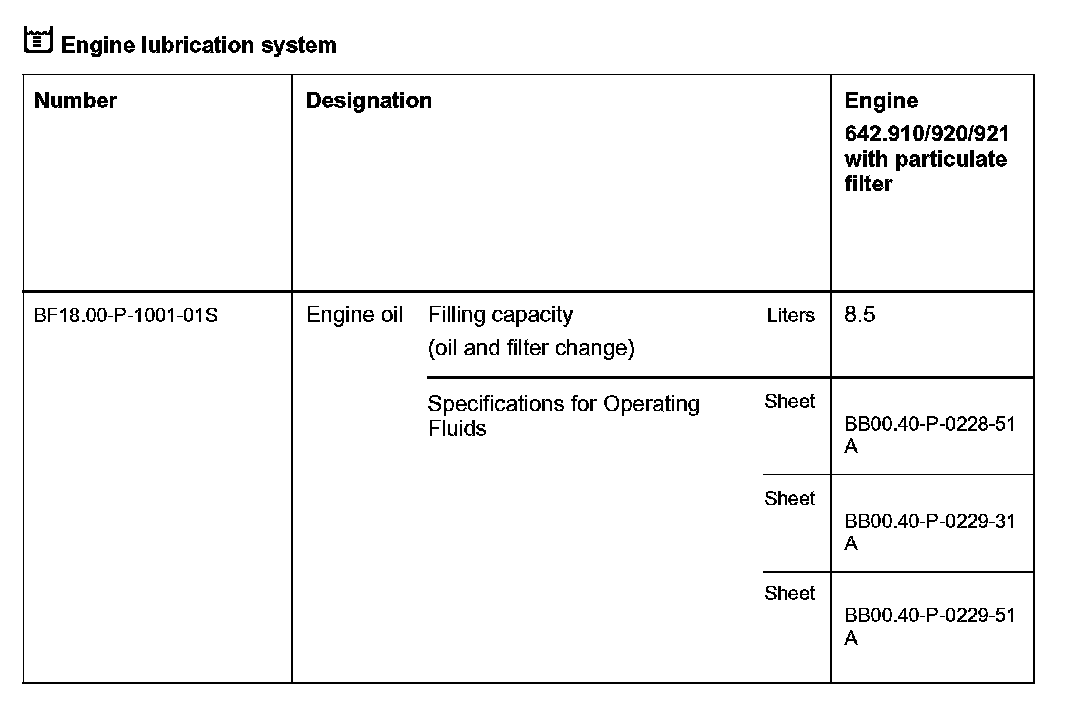

Engine lubrication system:

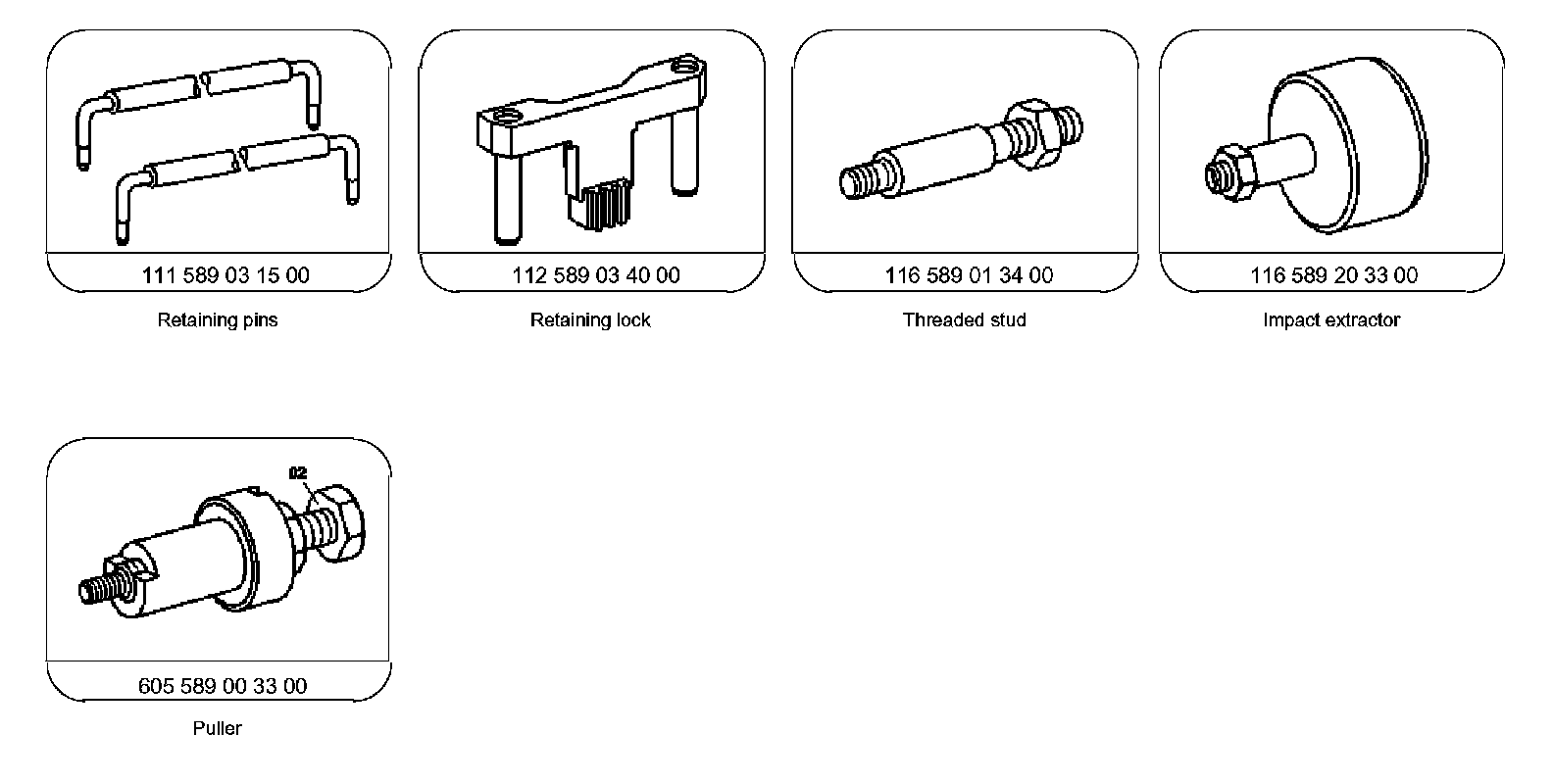

Special Tools:
