AR03.20-P-1000TI Remove/Install Balance Shaft



AR03.20-P-1000TI Remove/install balance shaft

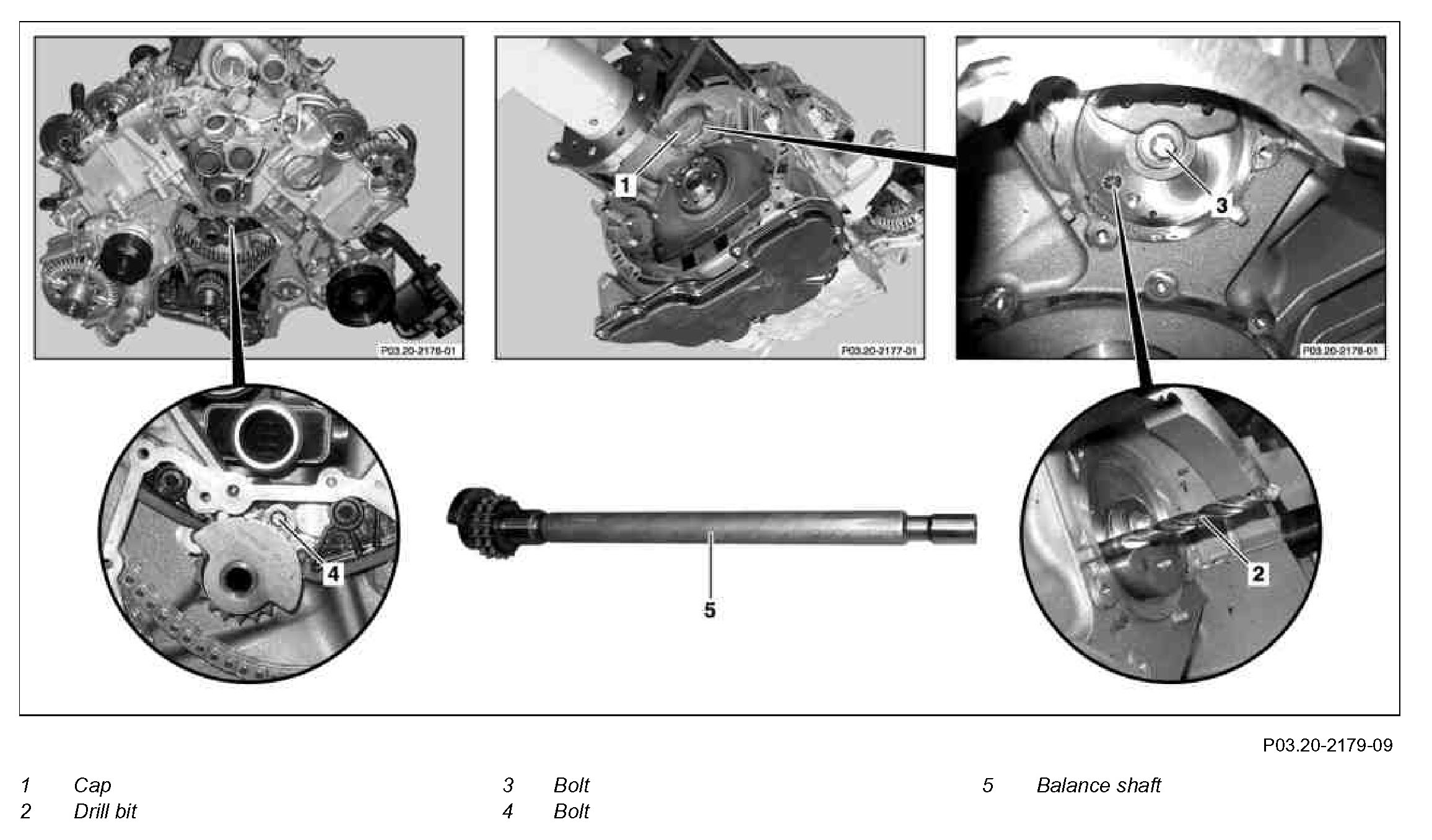

Component Identification:

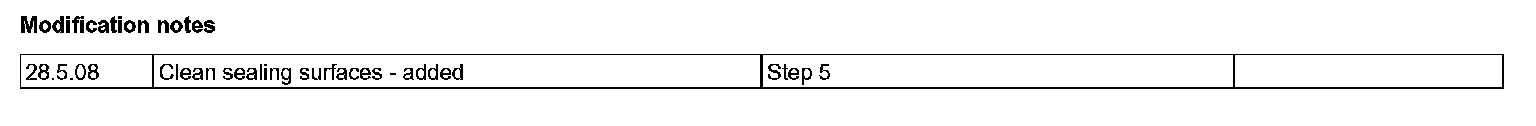

Modification notes:

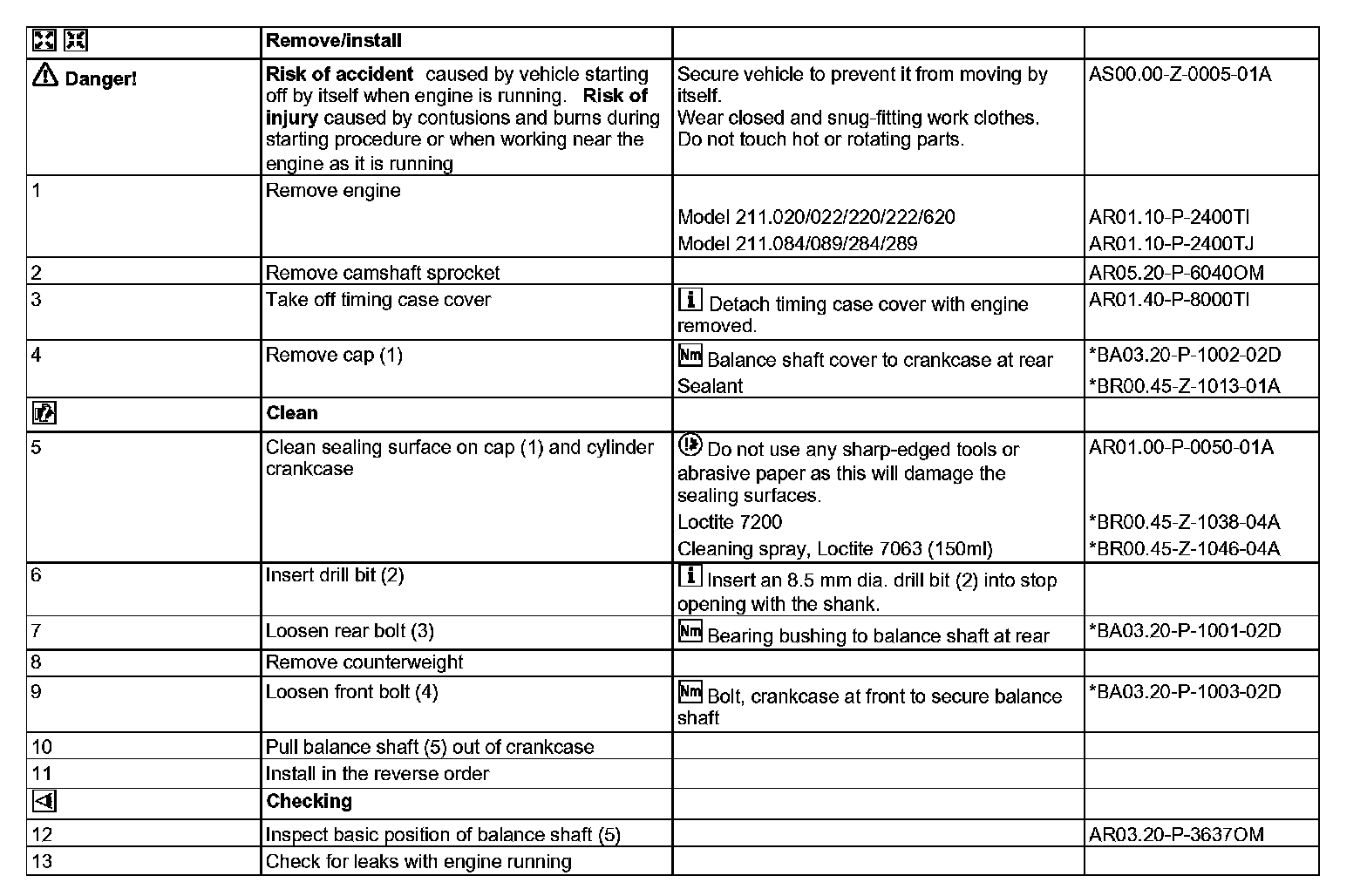

Steps 1-13:

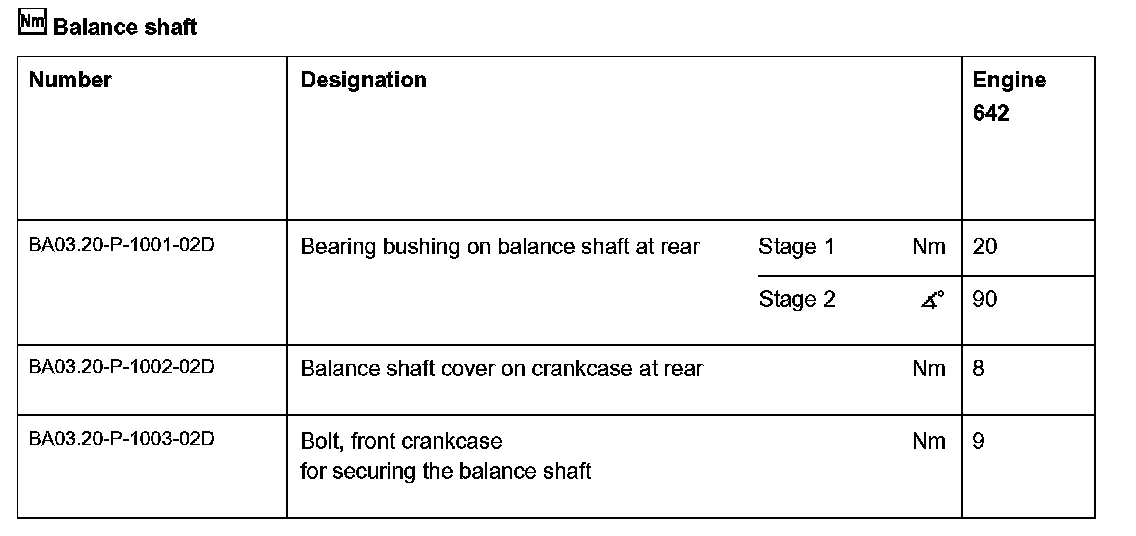

Balance shaft:

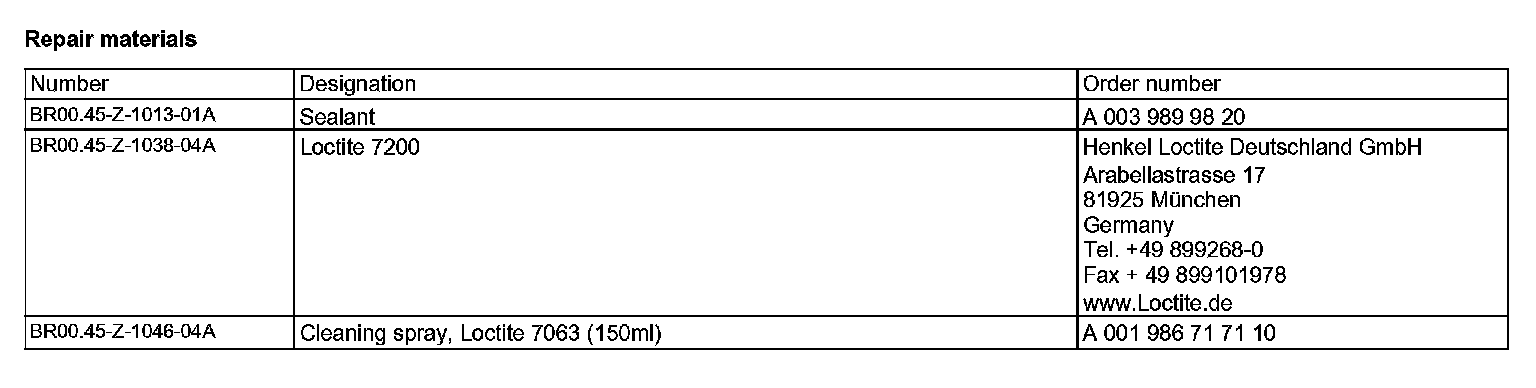

Repair materials:
