AR05.10-P-6858TI Check The Engine Valve Timing



AR05.10-P-6858TI Check the engine valve timing

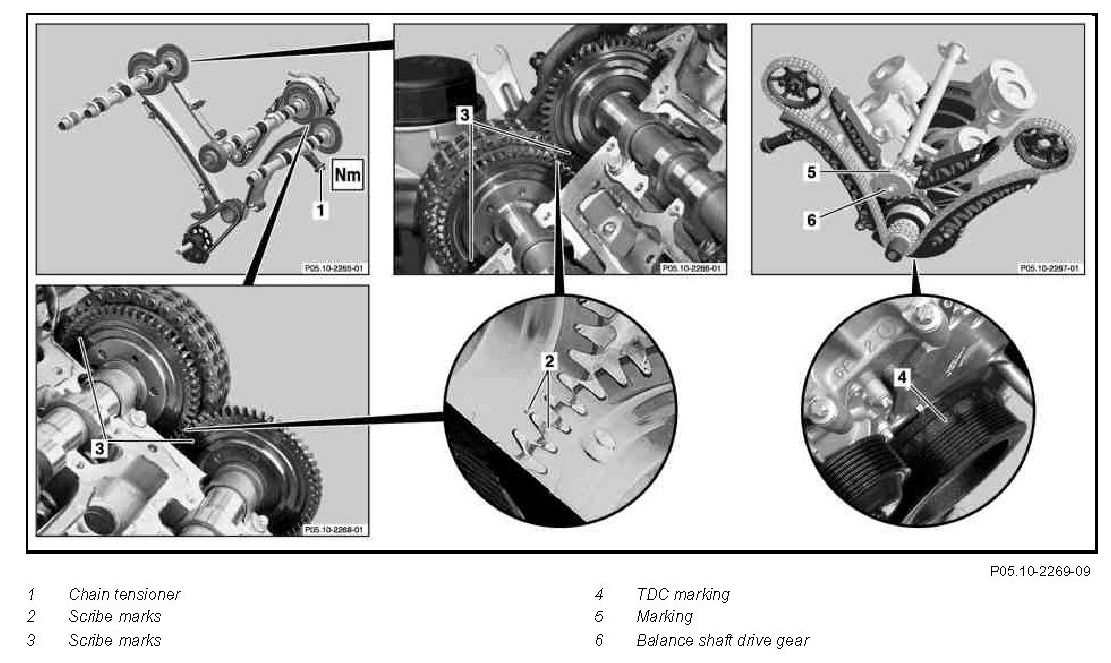

Component Identification:

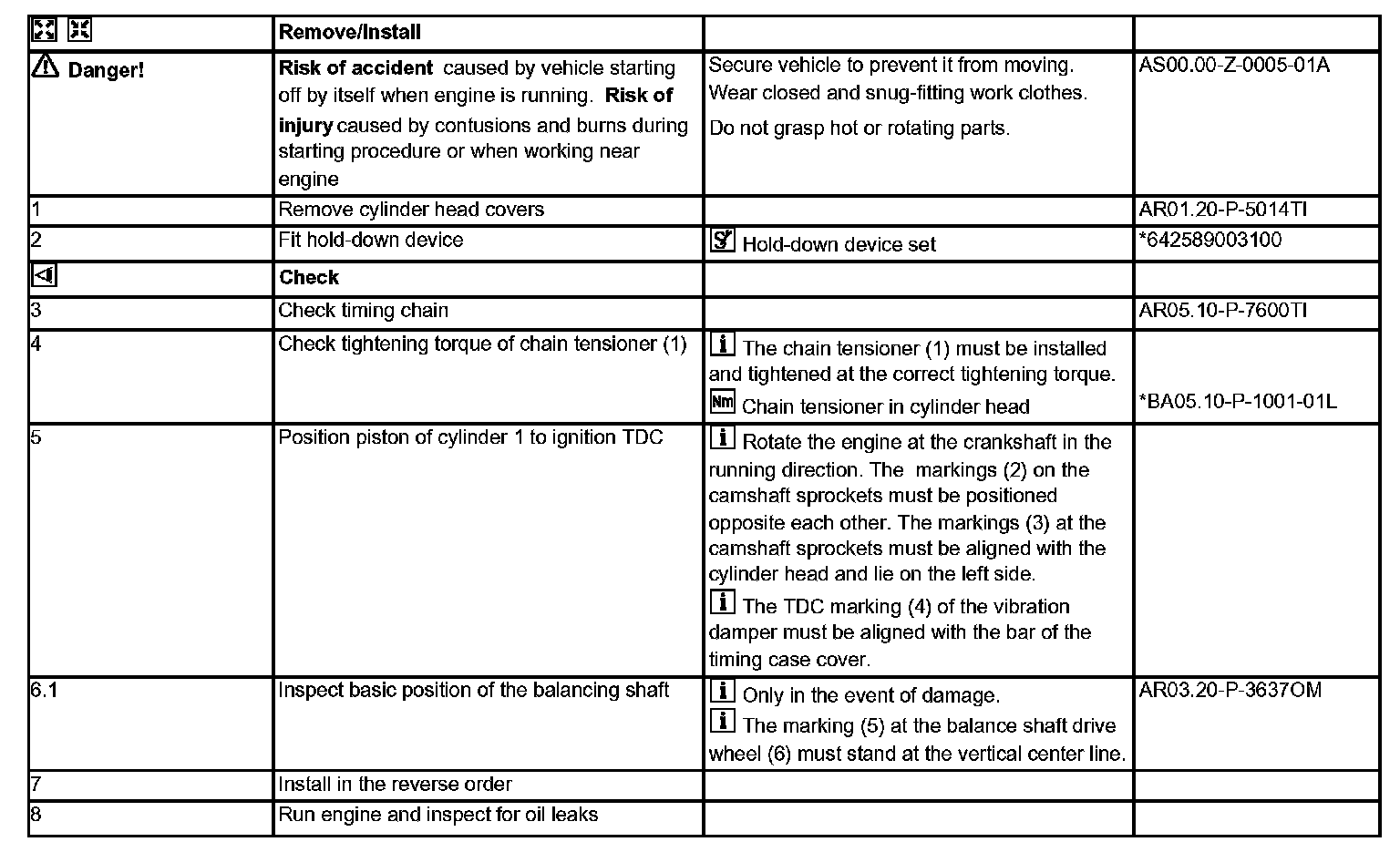

Remove/install Steps 1-8:

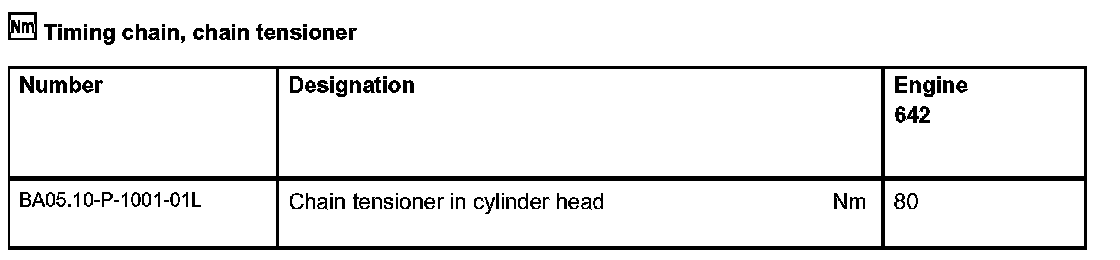

Timing chain, chain tensioner:

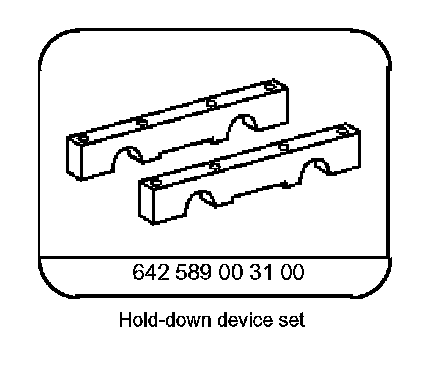

Special Tools:
