AR01.00-P-0200TI Inspecting Cylinders Using A Light Probe



AR01.00-P-0200TI Inspecting cylinders using a light probe

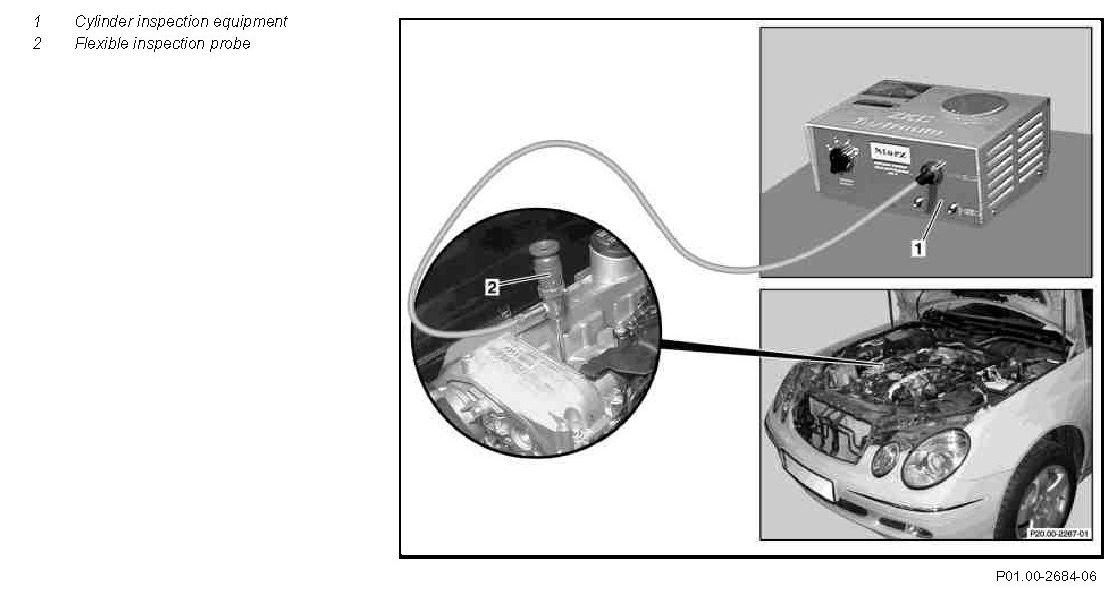

Component Identification:

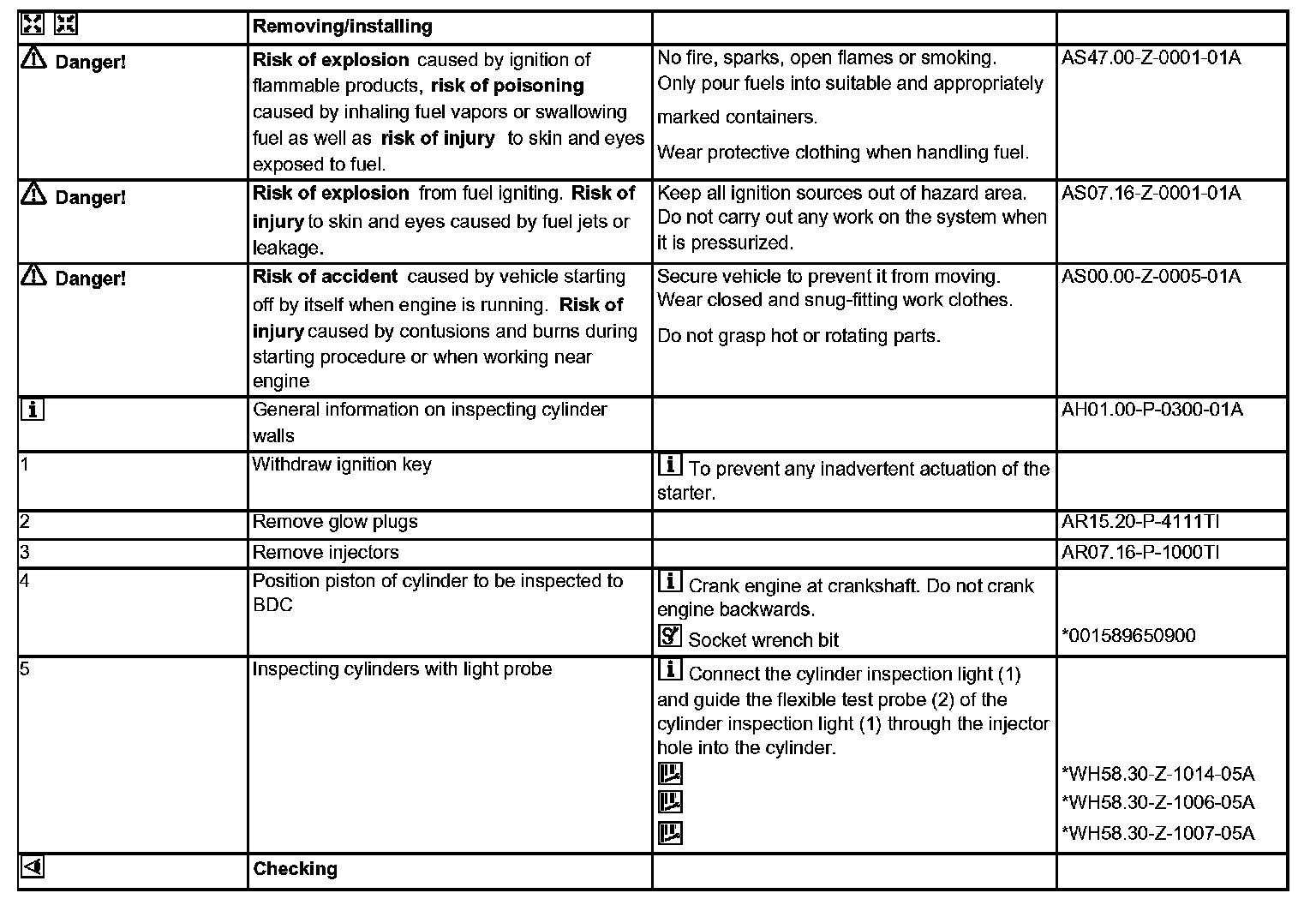

Remove/install Steps 1-5:

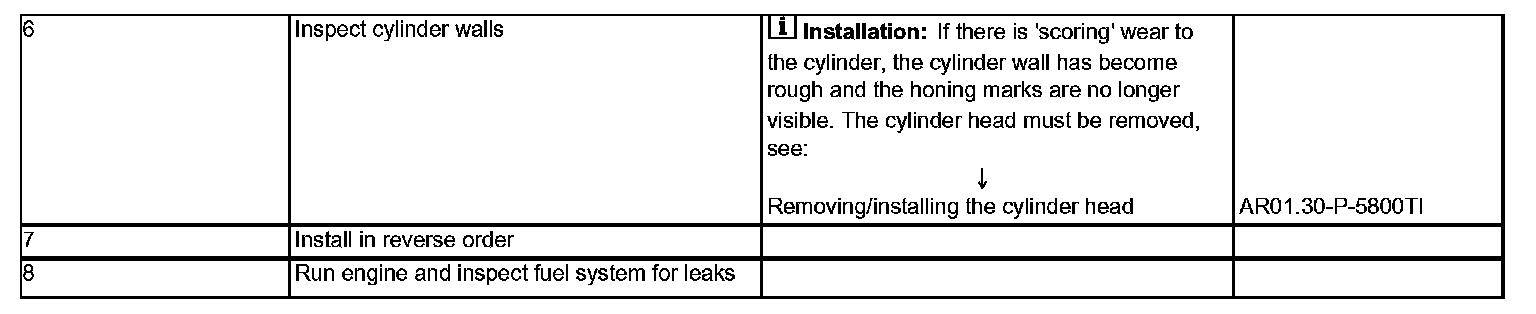

Remove/install Steps 6-8:

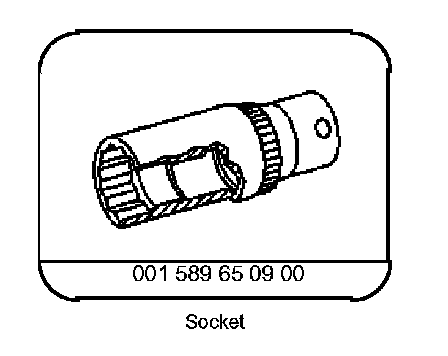

Special Tools:

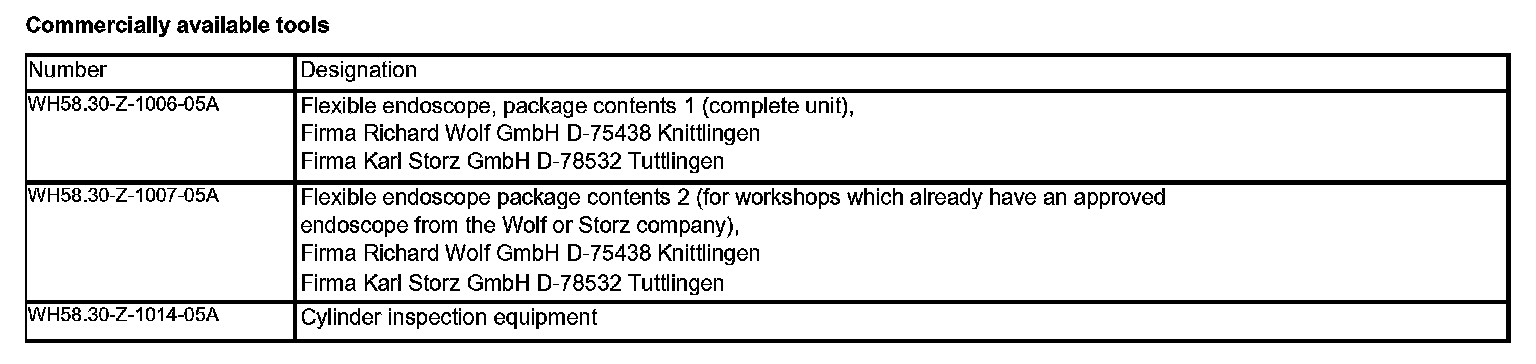

Commercially available tools:
