AR03.30-P-5000TI Removing/Installing Retaining Lock For Crankshaft/Ring Gear



AR03.30-P-5000TI Removing/installing retaining lock for crankshaft/ring gear

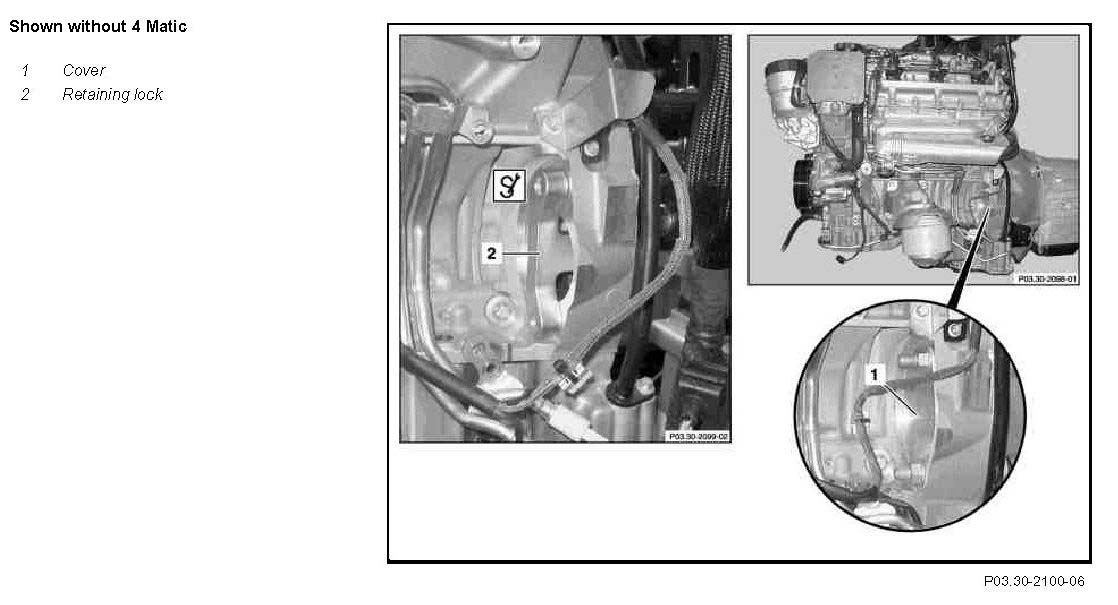

Component Identification:

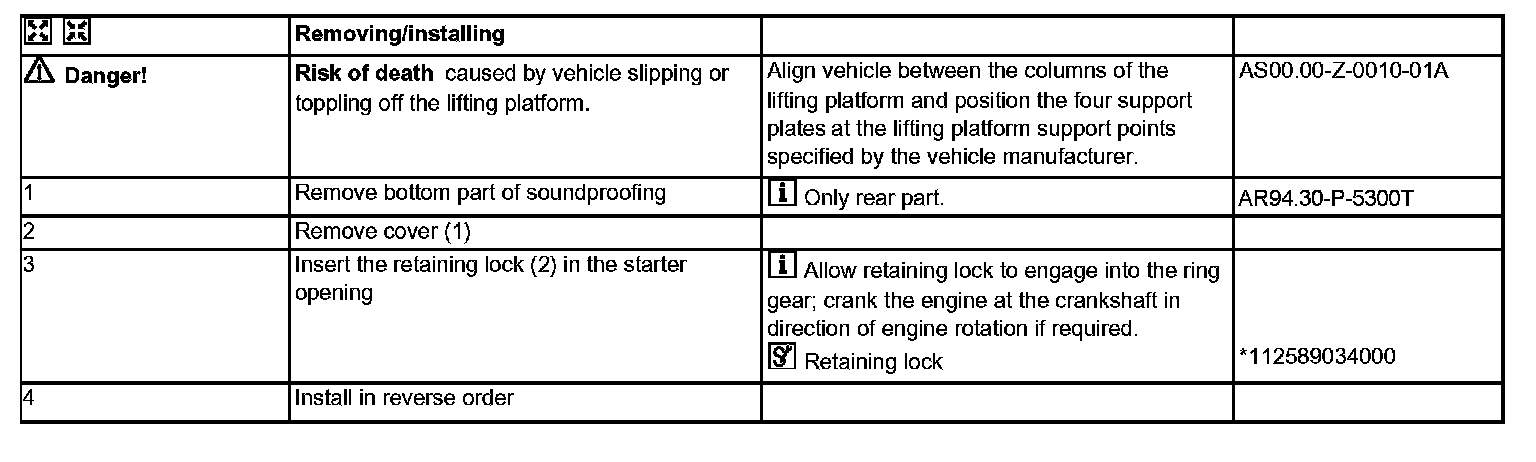

Remove/install Steps 1-4:

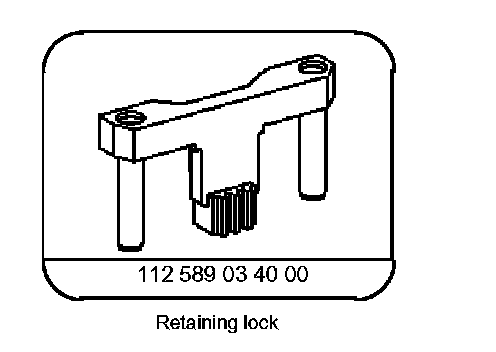

Special Tools:
