AR01.00-P-2410TI Disconnecting/Connecting The Engine Wiring Harness



AR01.00-P-2410TI Disconnecting/connecting the engine wiring harness

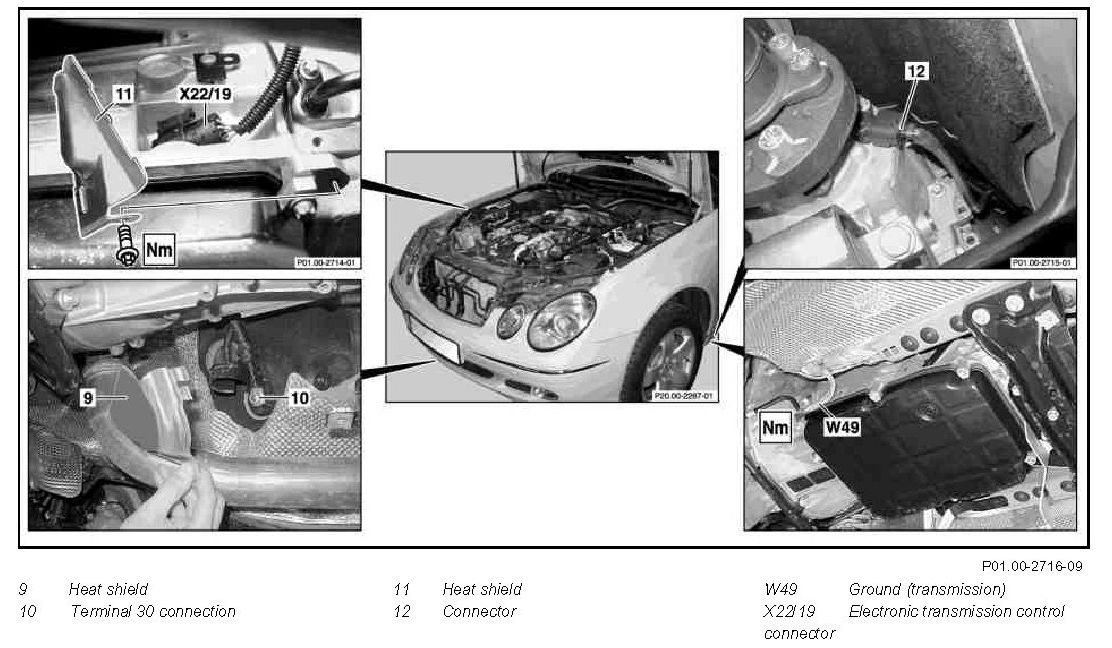

Component Identification:

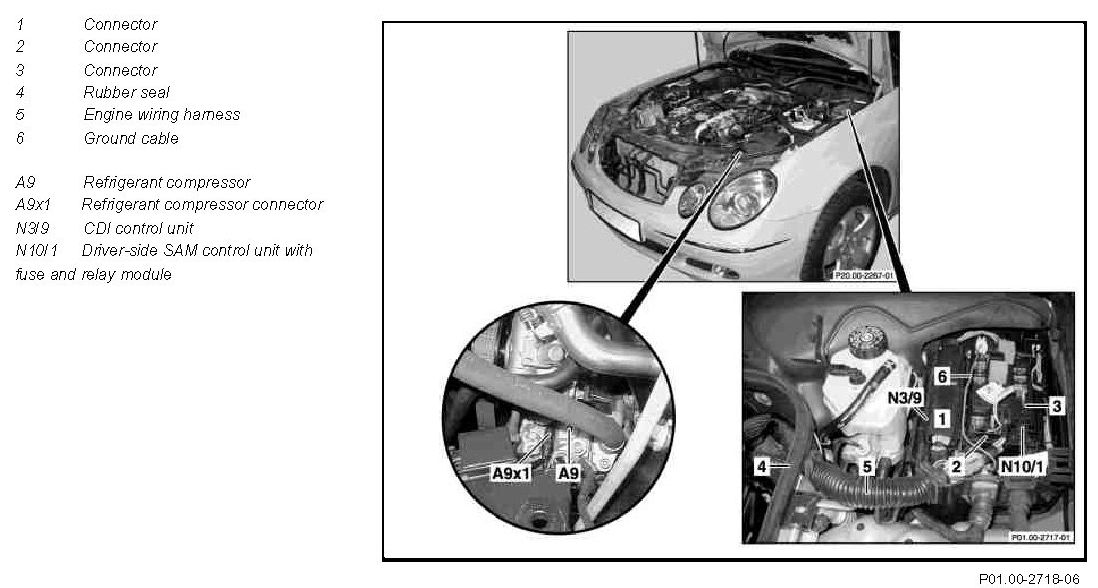

Component Identification:

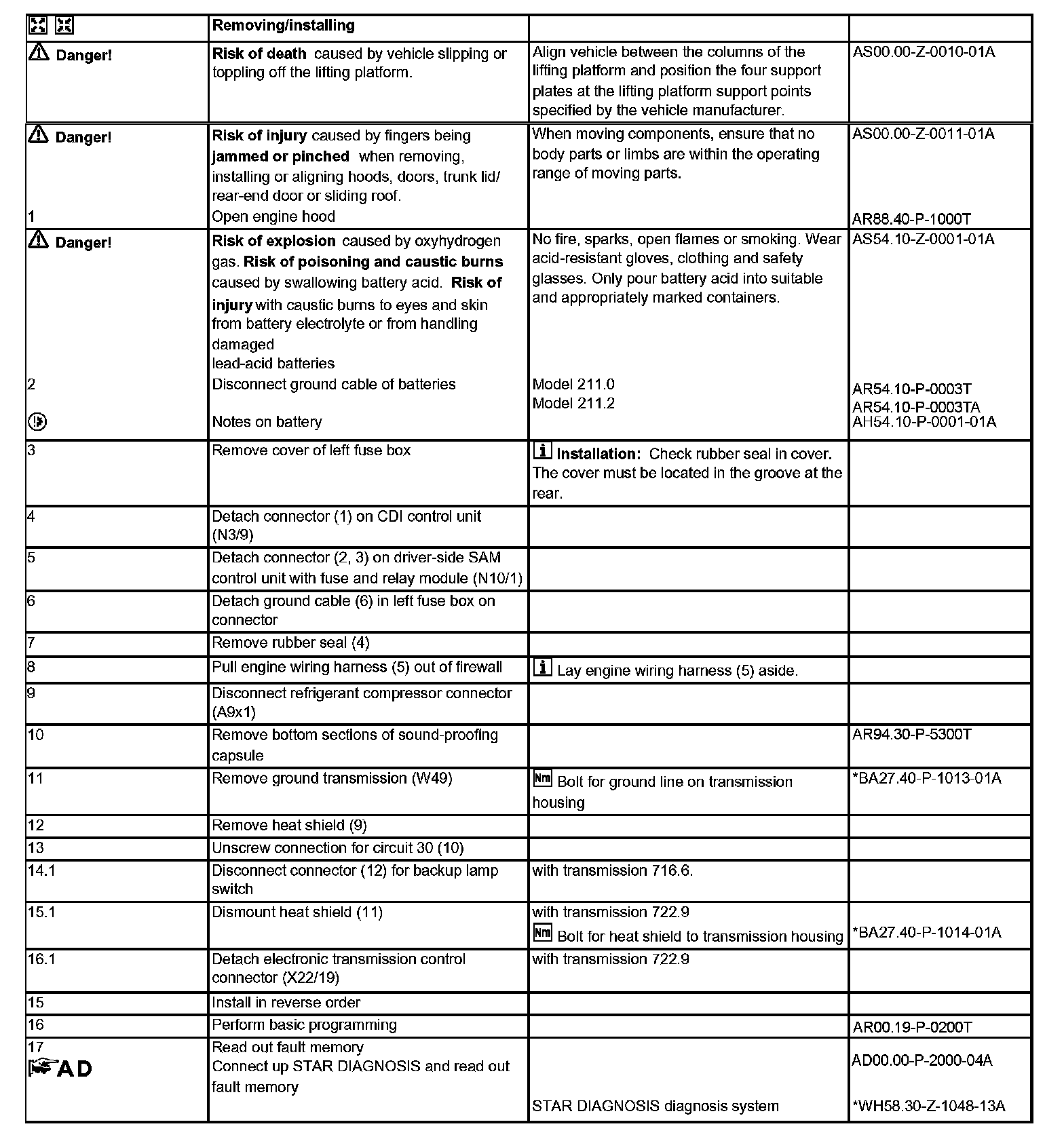

Remove/install Steps 1-17:

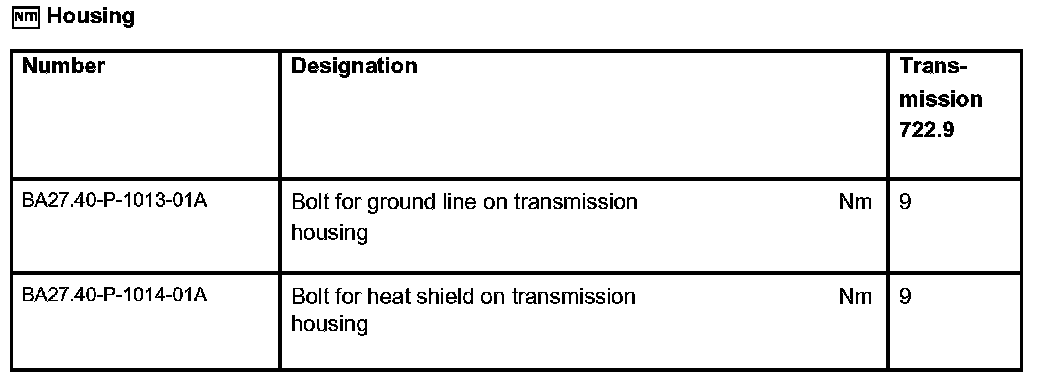

Housing:

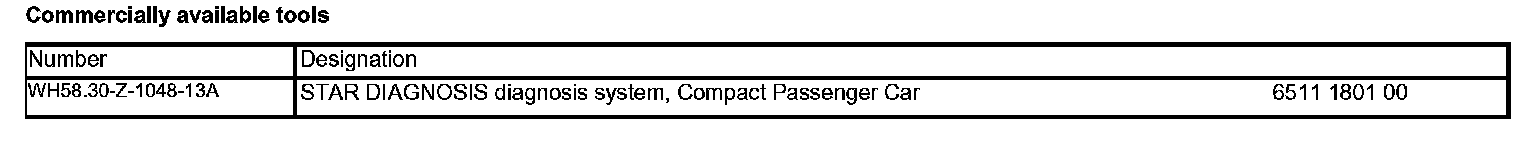

Commercially available tools:
