AR01.10-P-0110TI Cranking Engine With The Starter



AR01.10-P-0110TI Cranking engine with the starter

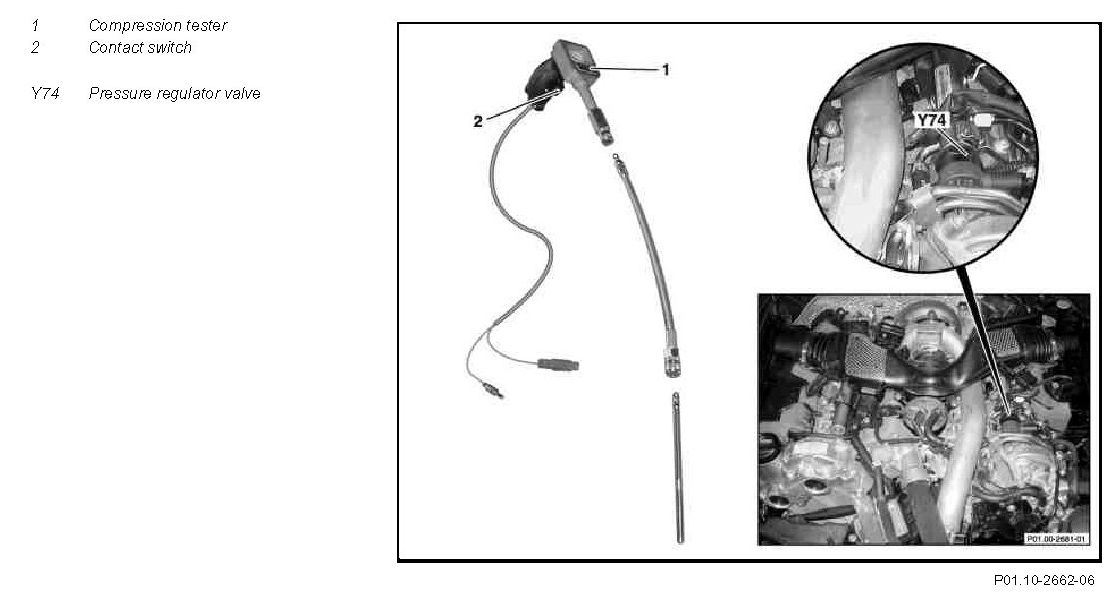

Component Identification:

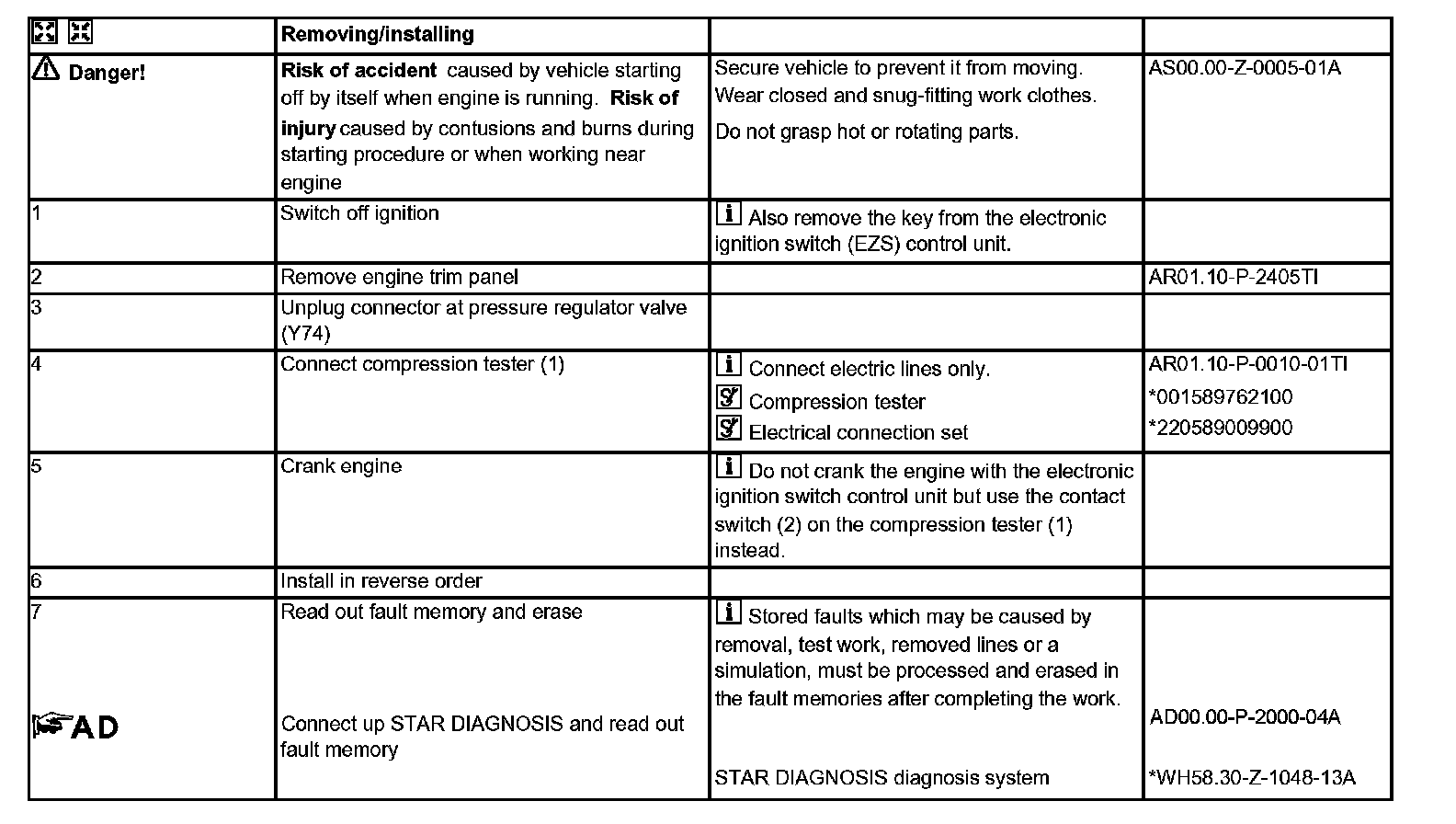

Remove/install Steps 1-7:

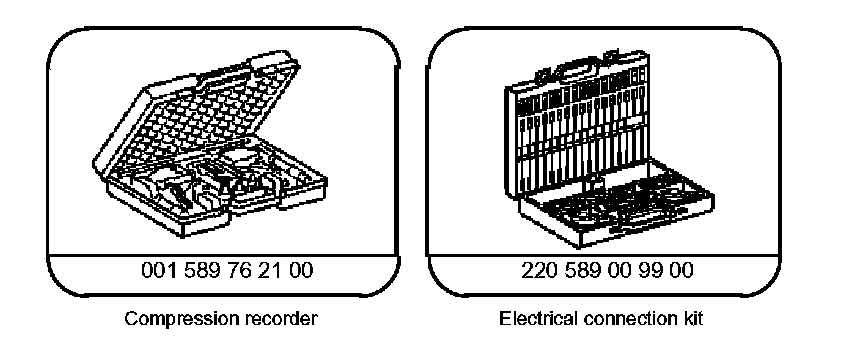

Special Tools:




Commercially available tools:
