AR18.40-P-4123TI Remove/Install Sensor For Engine Oil Temperature



AR18.40-P-4123TI Remove/install sensor for engine oil temperature

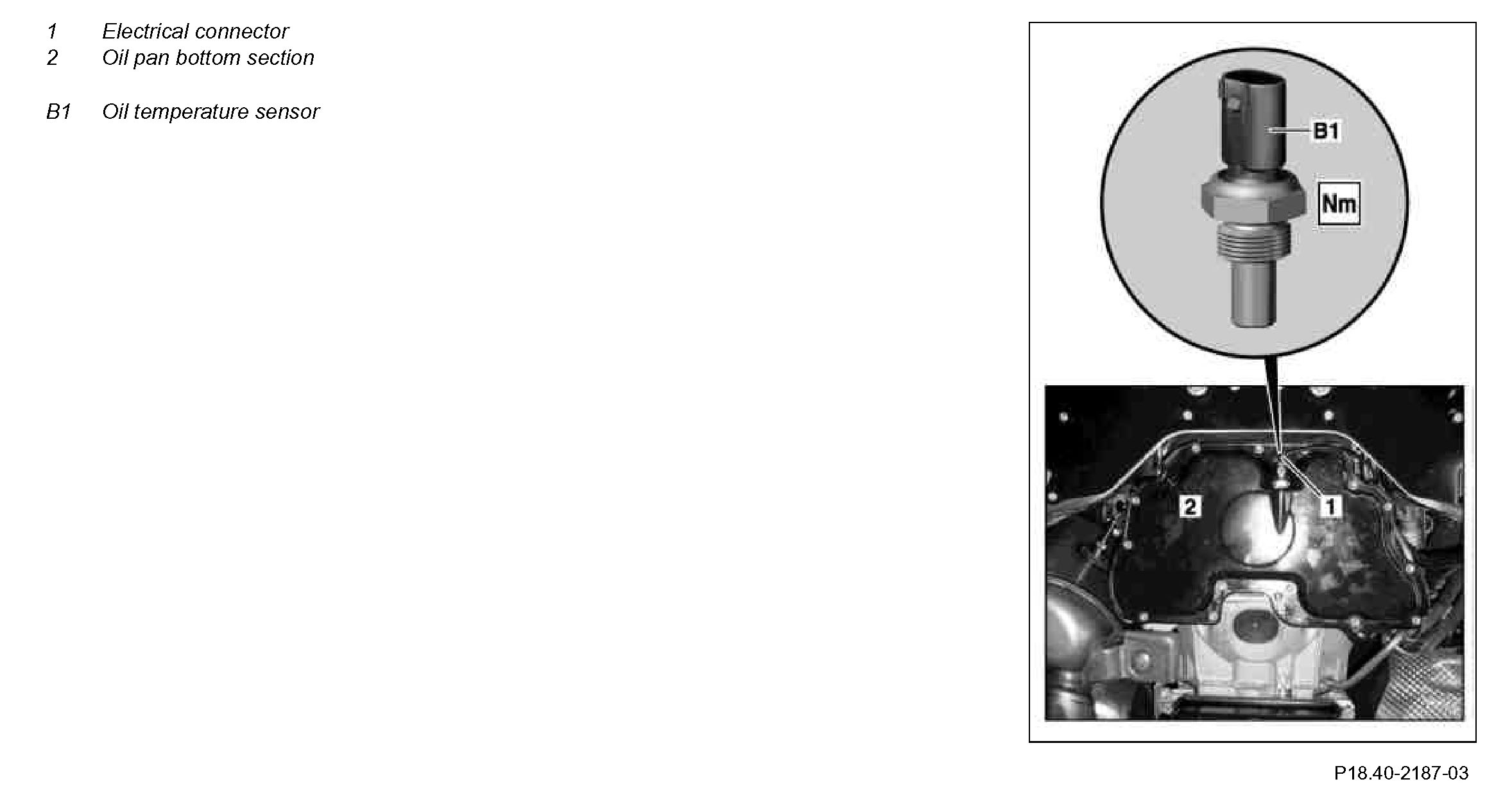

Component Identification:

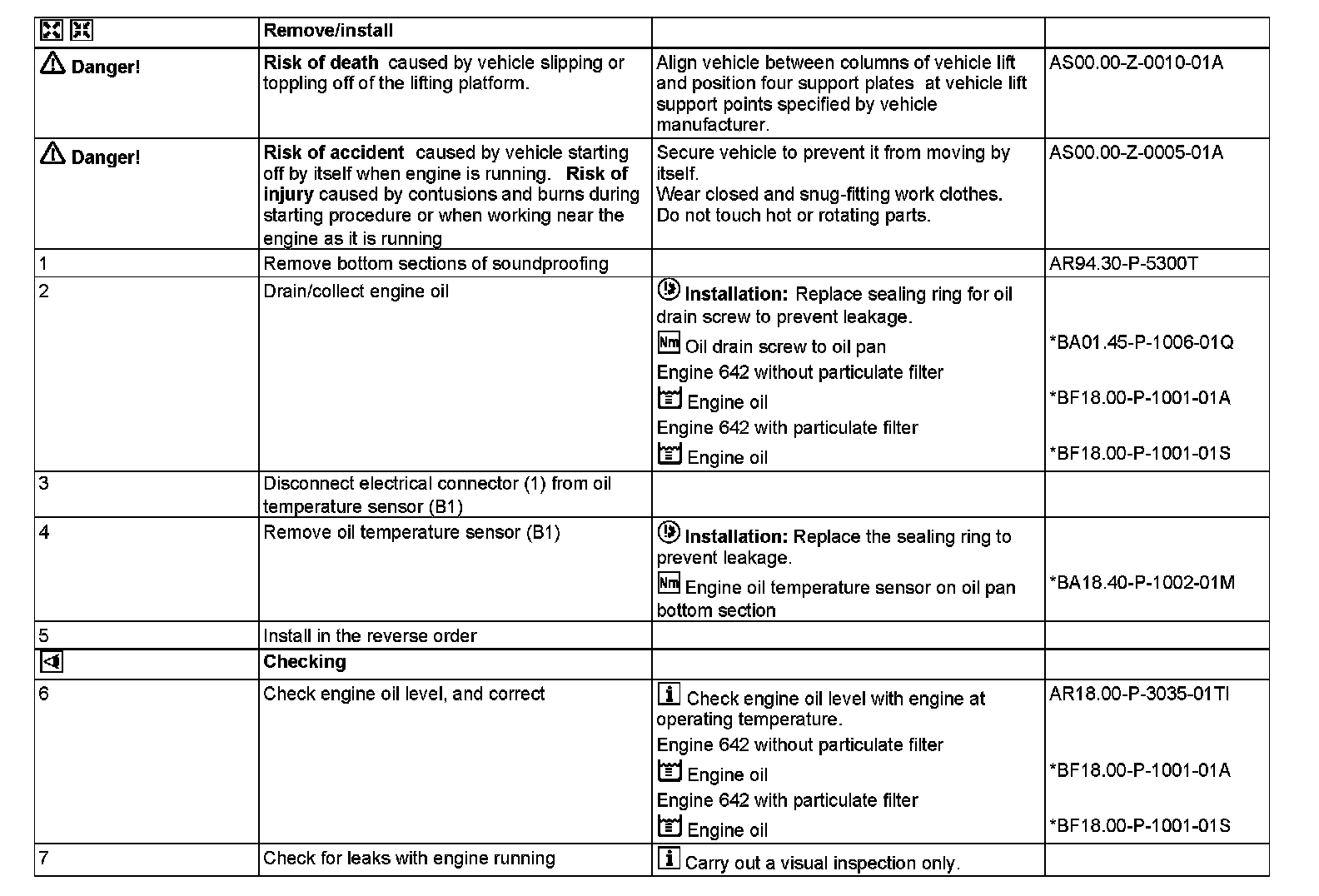

Steps 1-7:

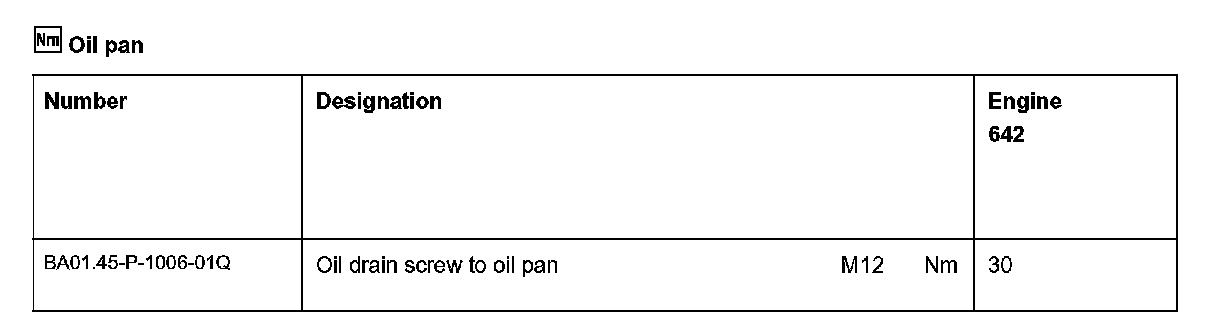

Oil pan:

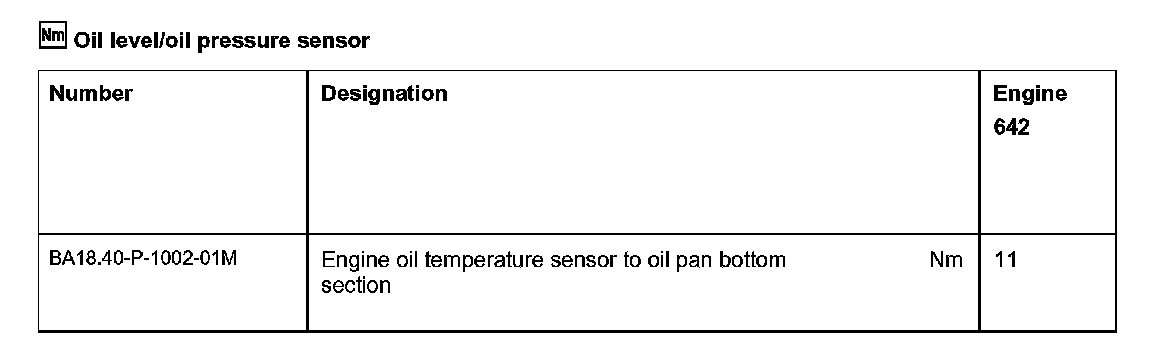

Oil level/oil pressure sensor:

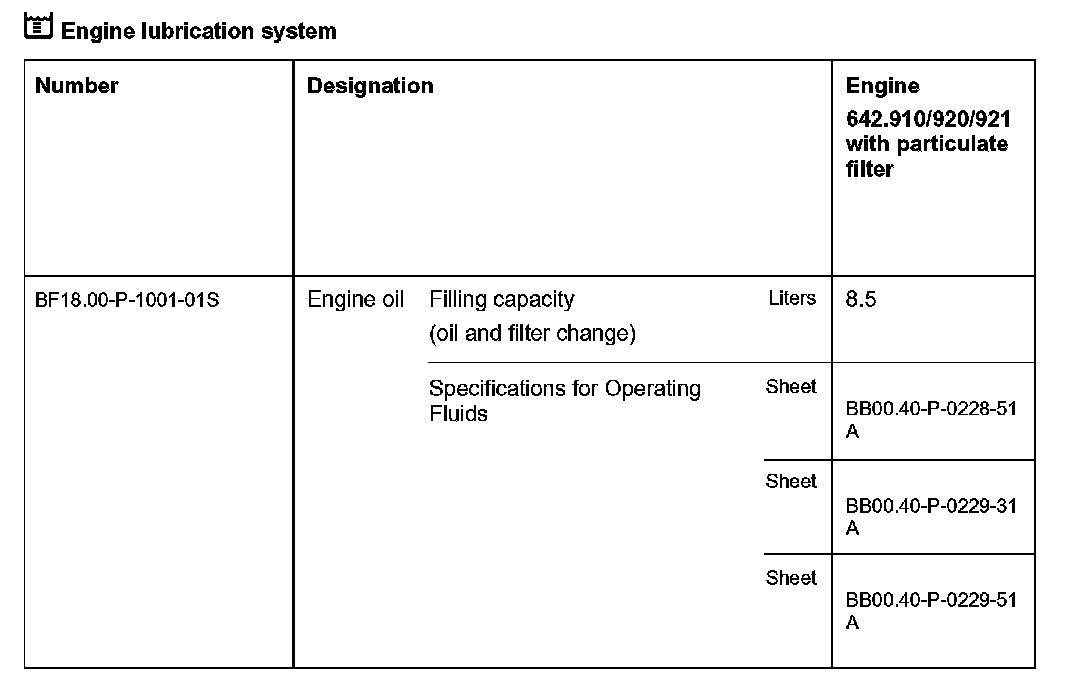

Engine lubrication system:

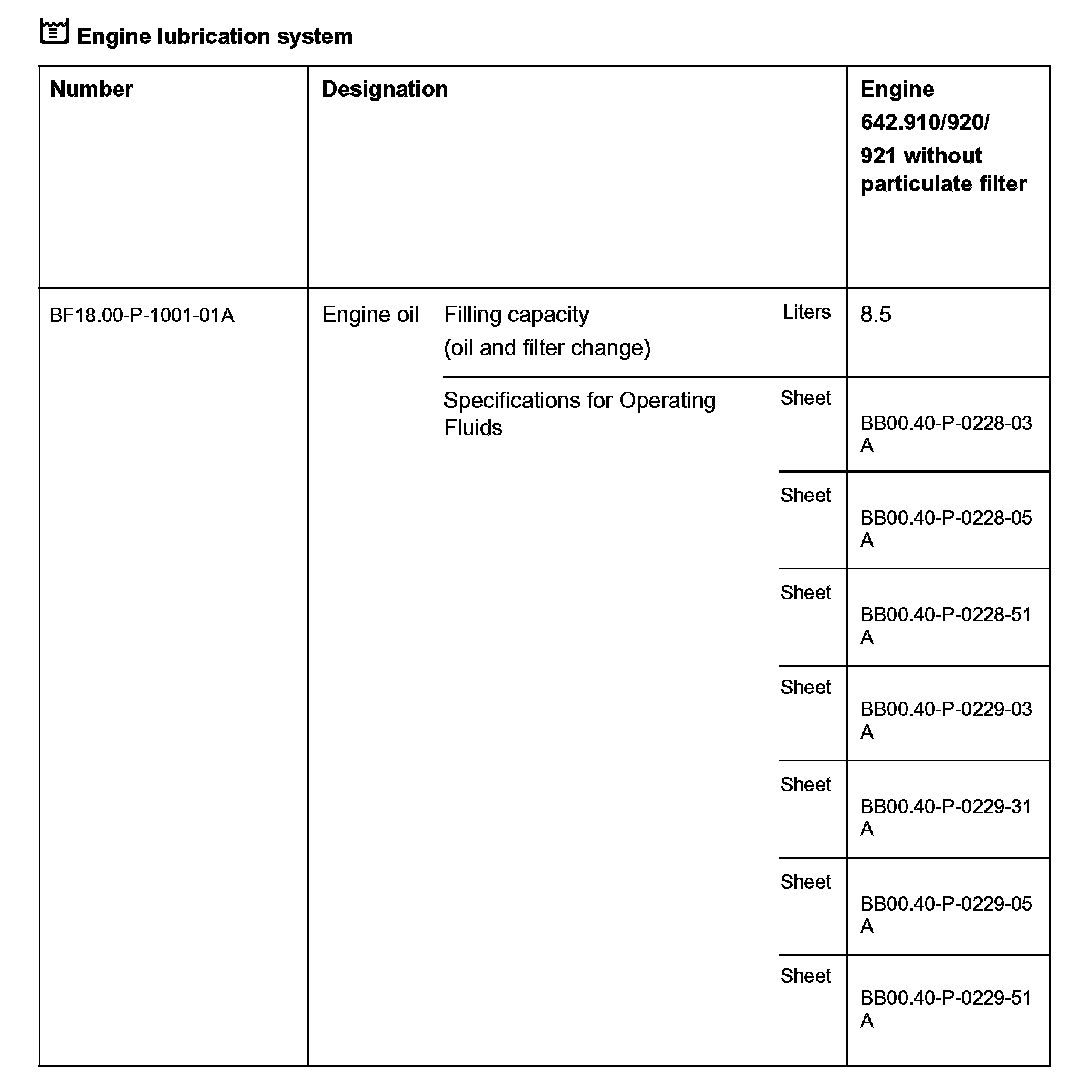

Engine lubrication system:
