Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Service and Repair >> Removal and Replacement

Removal and Replacement



AP18.00-P-0101TI Engine oil and filter change

Modification notes:

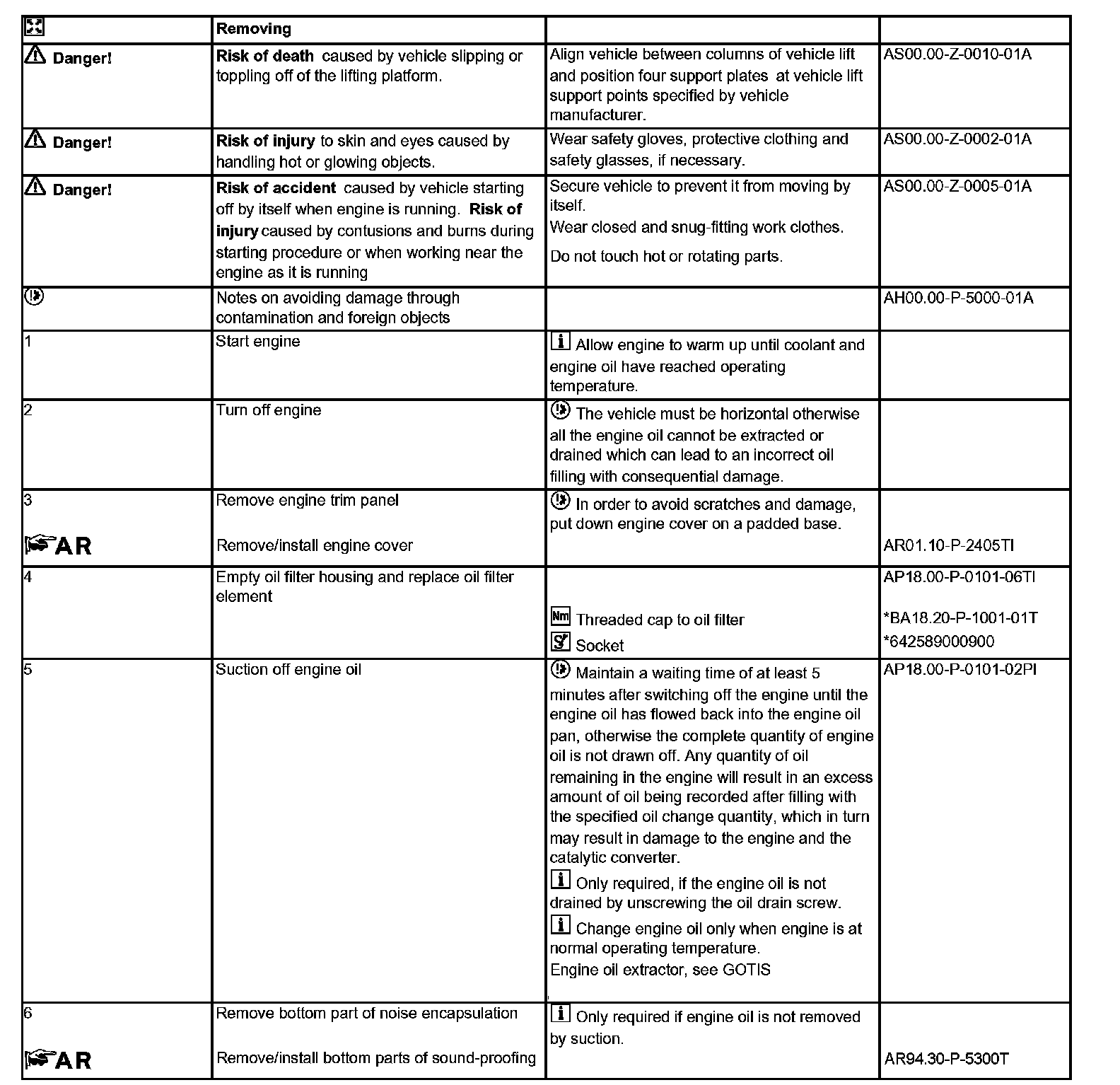

Steps 1-6:

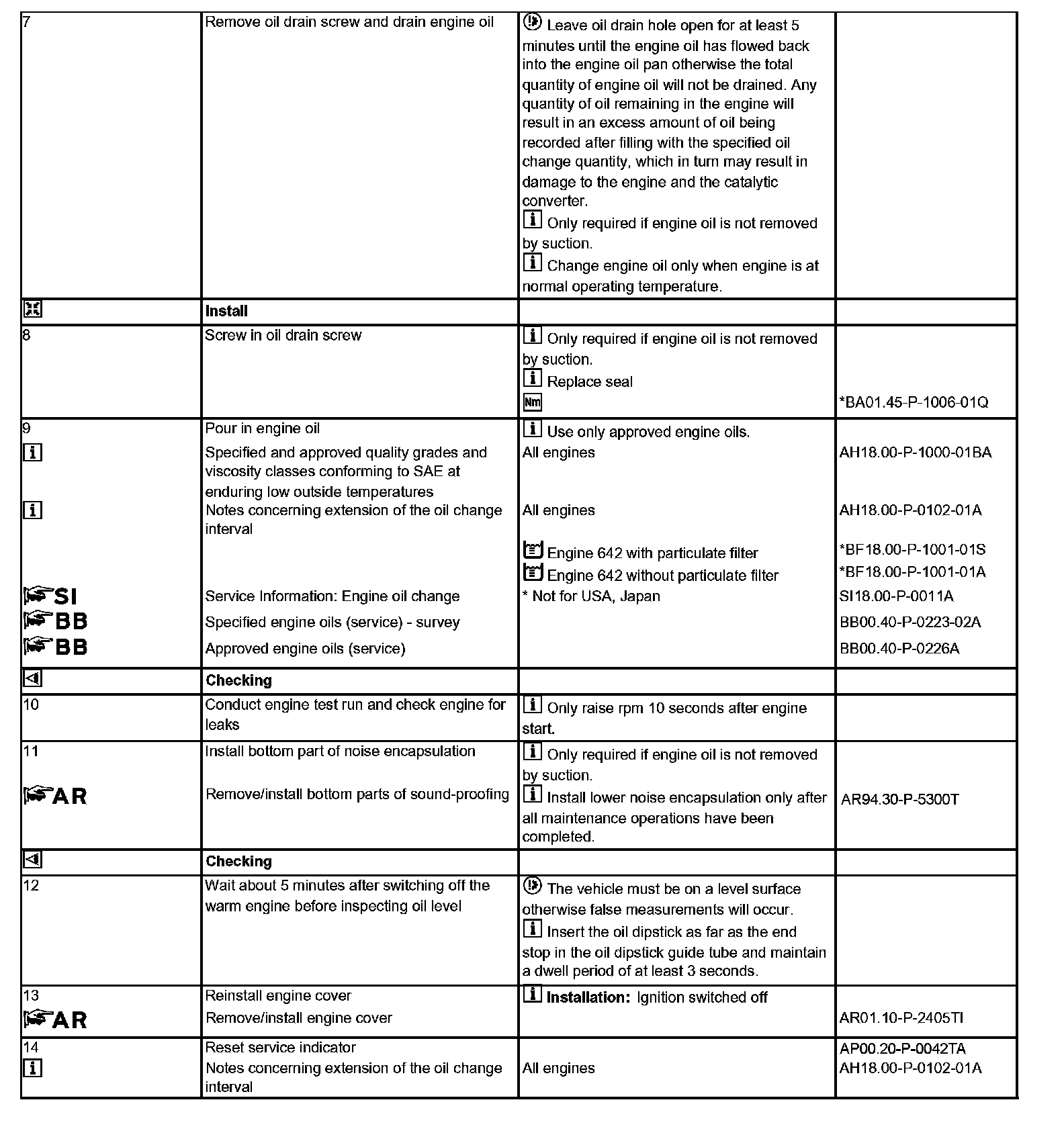

Steps 7-14:

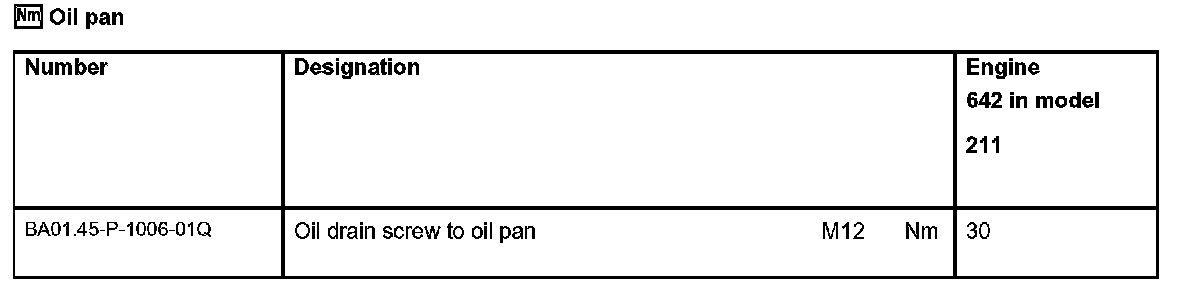

Oil pan:

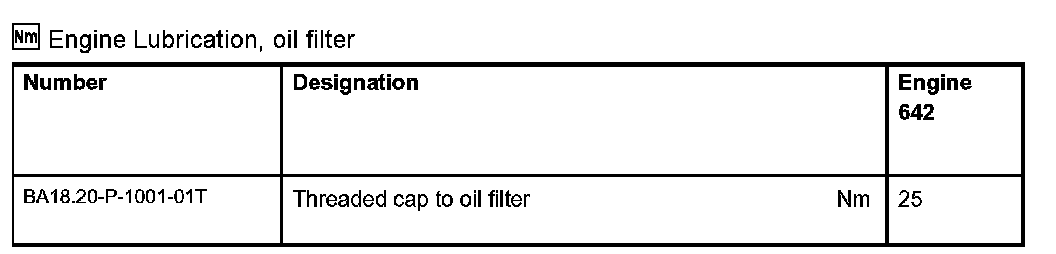

Engine lubrication, oil filter:

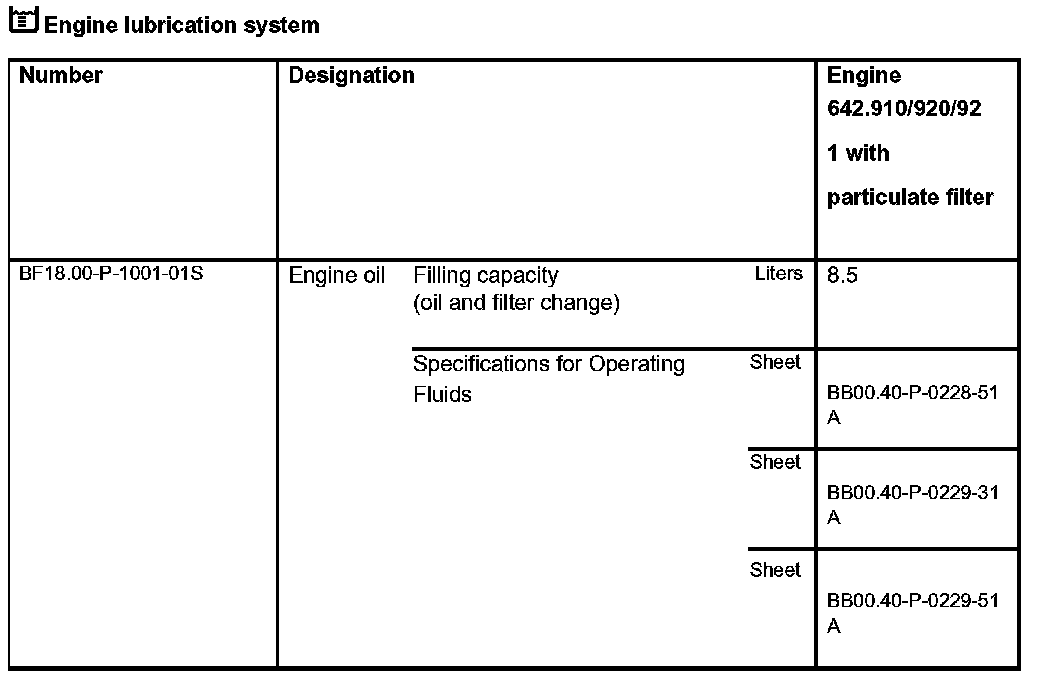

Engine lubrication system:

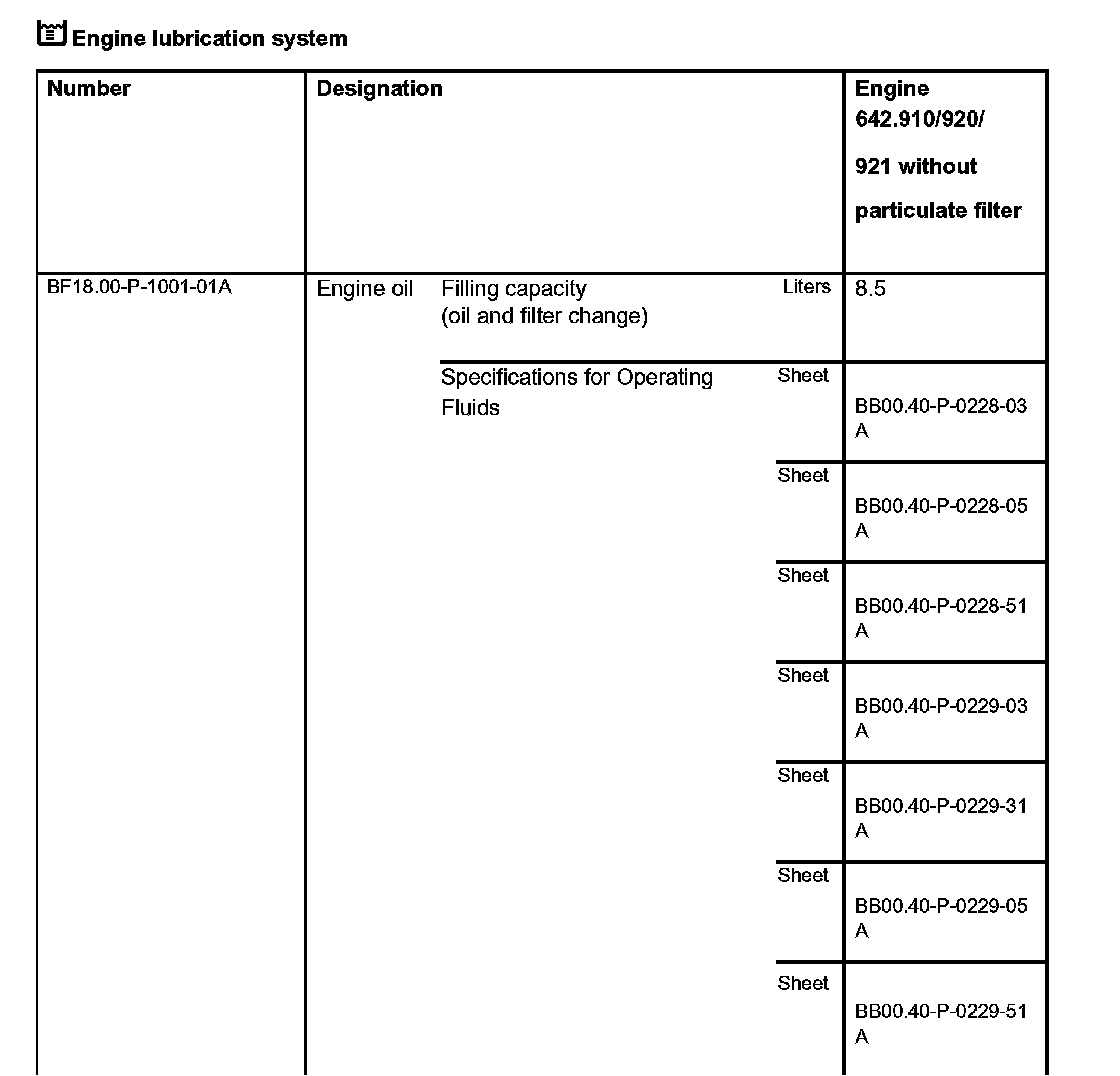

Engine lubrication system:

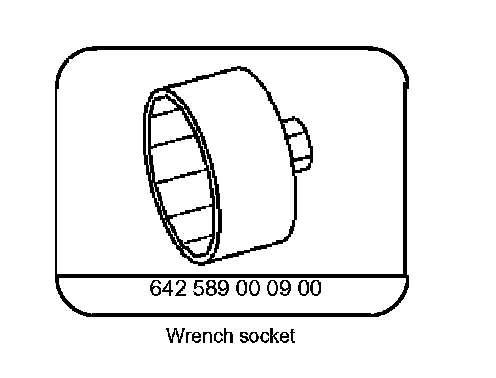

Special Tools:
