AR18.10-P-6020TI Removing/Installing The Oil Pump
AR18.10-P-6020TI Removing/Installing The Oil Pump
AR18.10-P-6020TI Removing/installing the oil pump

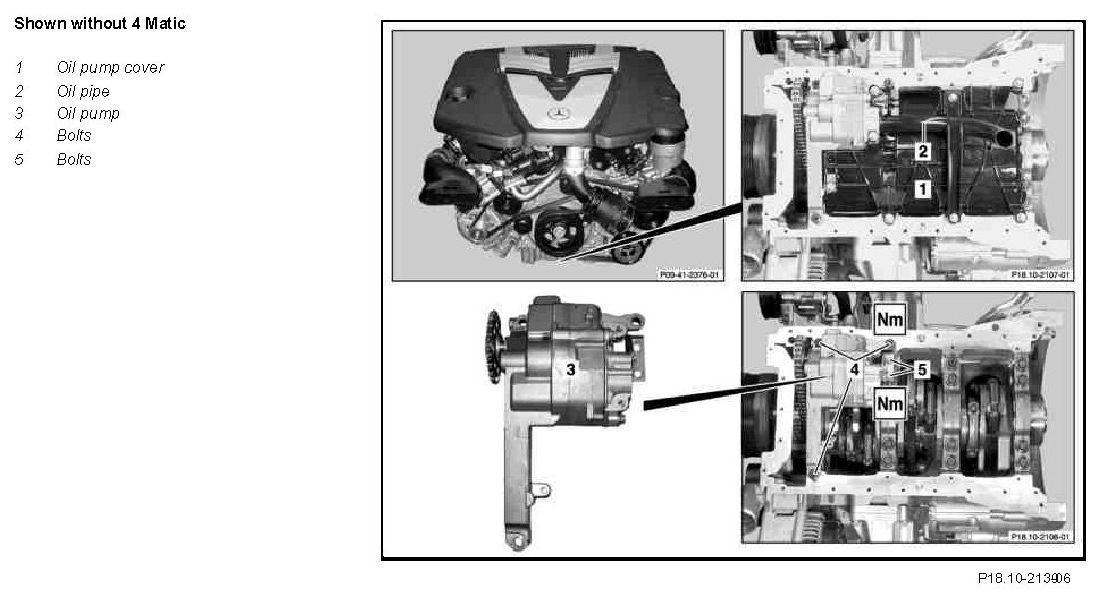

Component Identification:

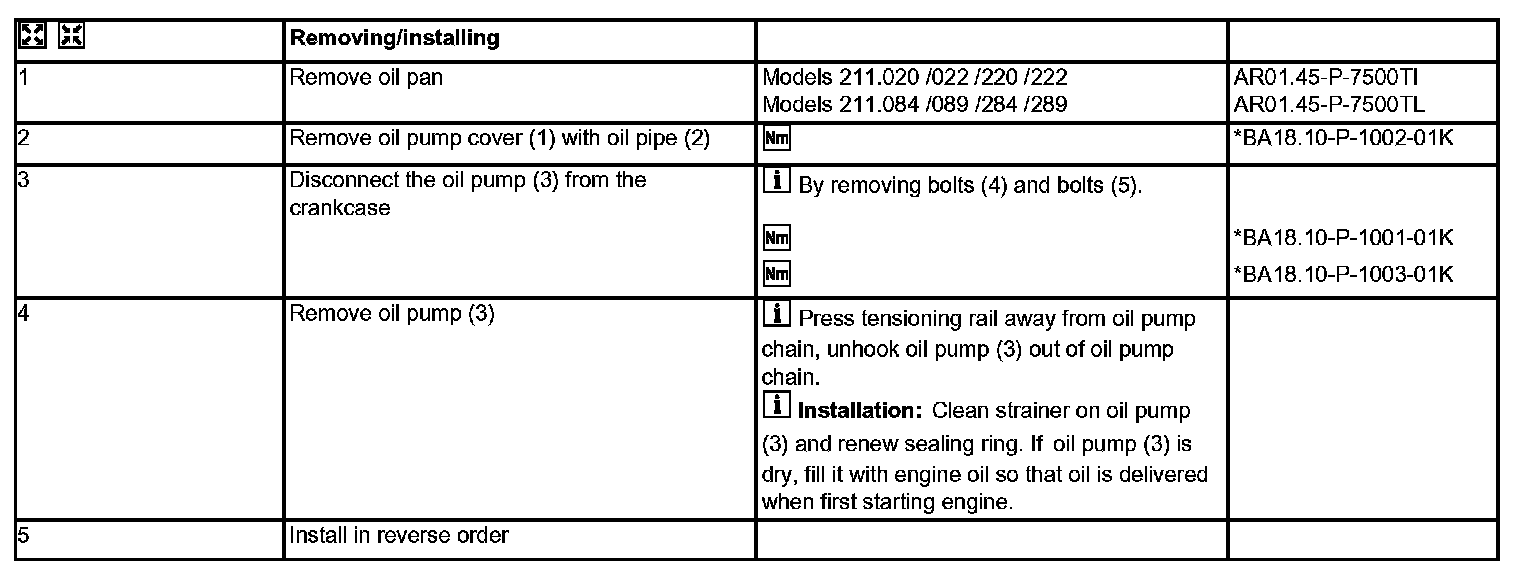

Remove/install Steps 1-5:

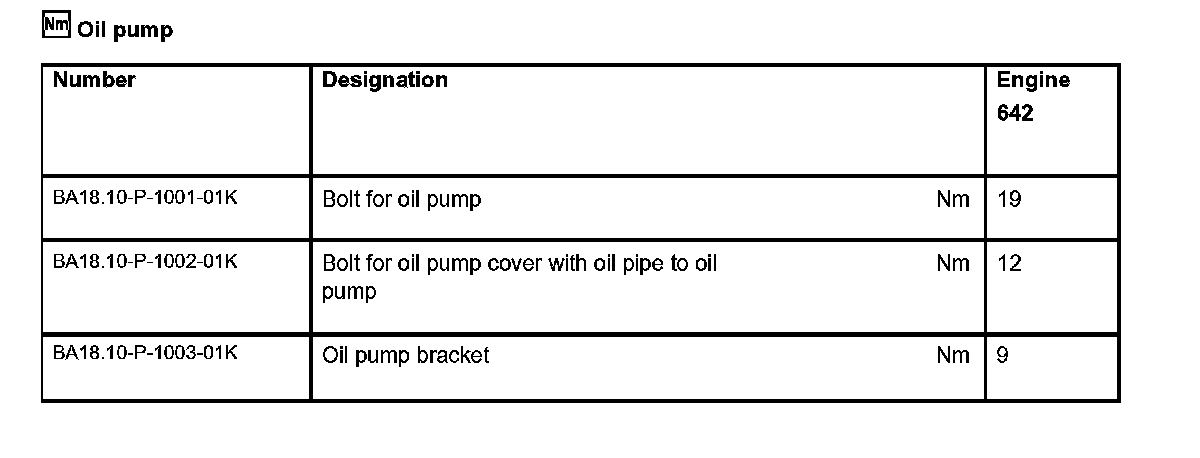

Oil pump:
