AR18.10-P-2140-01OM Separate Oil Pump Chain

AR18.10-P-2140-01OM Separate Oil Pump Chain





602 589 00 98 00
Case





602 589 05 63 00
Thrust spindle





602 589 02 33 00
Chain separating tool





602 589 05 63 01
Thrust pins





602 589 04 63 00
Thrust spindle





602 589 04 63 01
Thrust pins

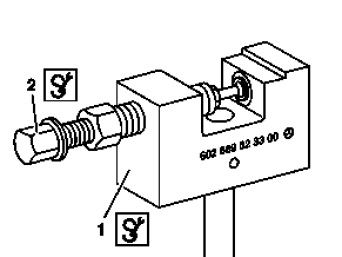

1 Assemble chain separating tool (1) and thrust spindle (2).

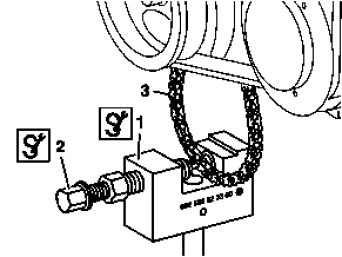

2 Position the chain separating tool (1) and the pressure screw (2) at the link of the oil pump chain (3) and separate the oil pump chain (3).
