AR18.10-P-2140-010M Separate Oil Pump Chain



AR18.10-P-2140-010M Separate oil pump chain

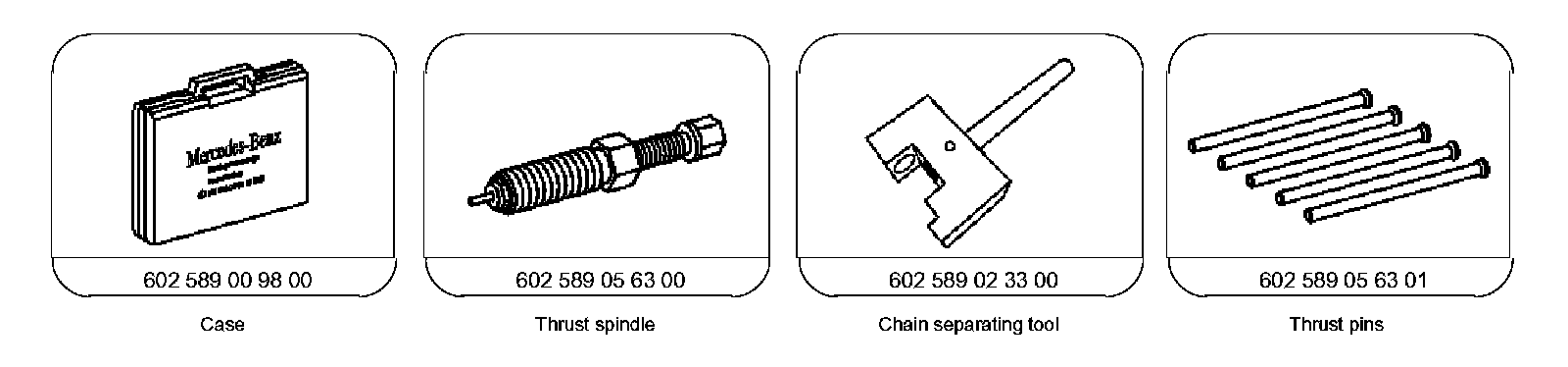

Special Tools:




Component Identification:

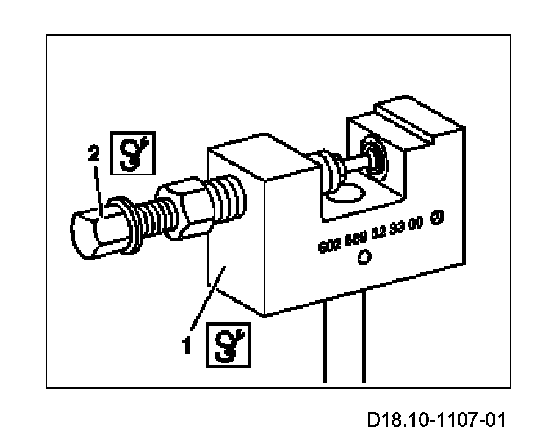

1 Assemble chain separating tool (1) and thrust spindle (2).

Component Identification:

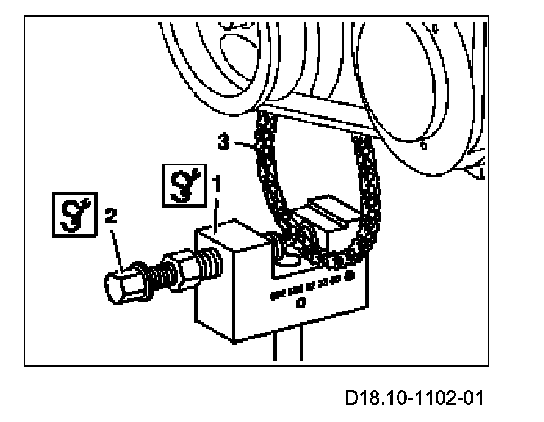

2 Position the chain separating tool (1) and the pressure screw (2) at the link of the oil pump chain (3) and separate the oil pump chain (3).
