AR01.45-P-7500TI Remove/Install Oil Pan

Component Identification:

Component Identification:

Modification notes:

Steps 1-4:

Steps 5-21:

Step 21 (Continued)-22:

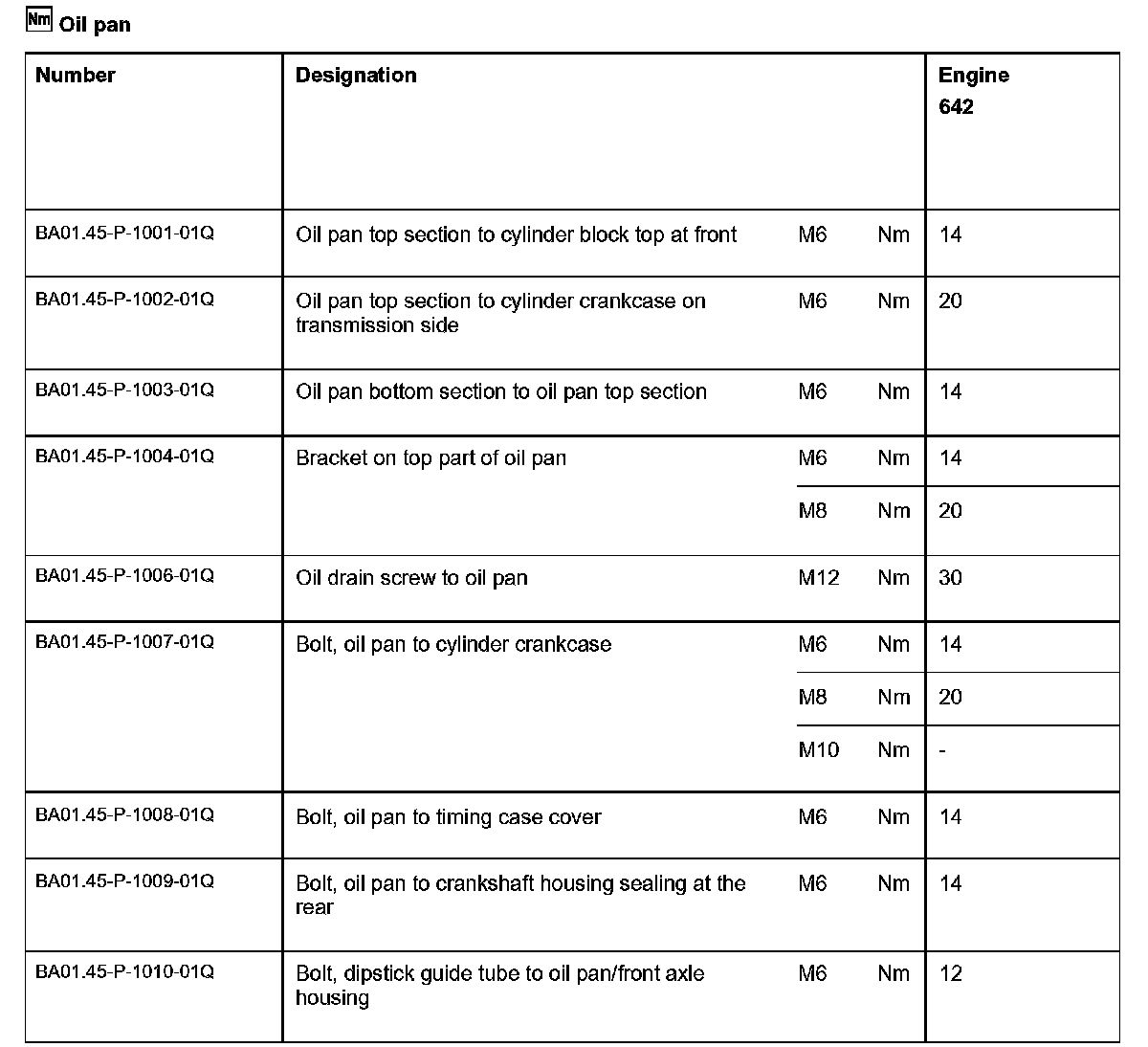

Oil pan:

Engine mount, engine support (engine side):

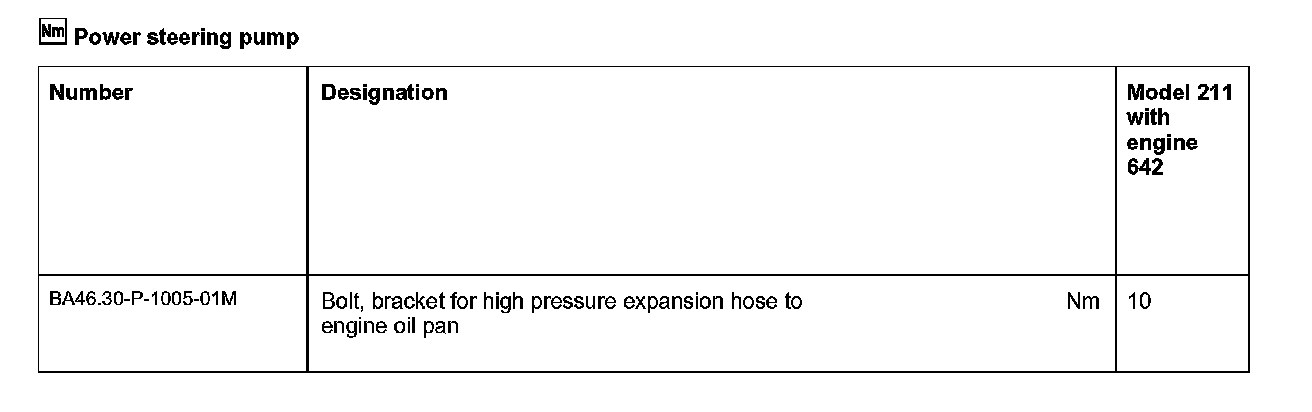

Power steering pump:

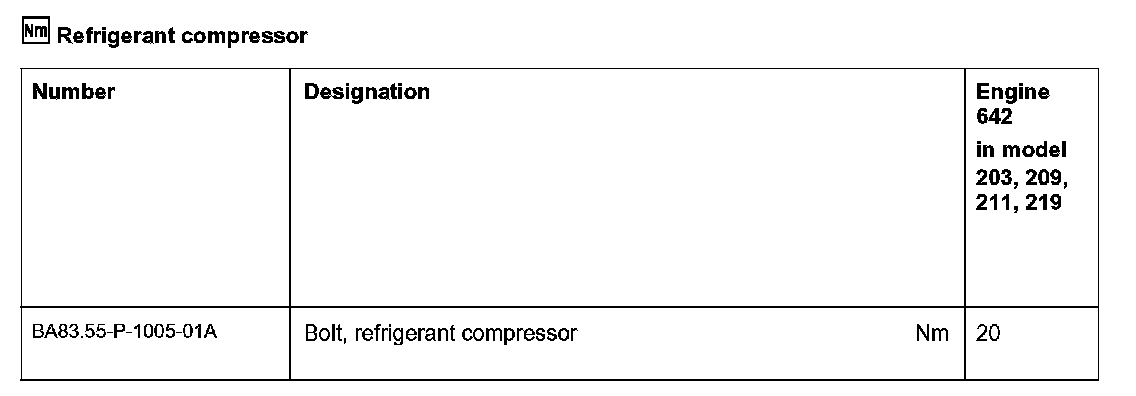

Refrigerant compressor:

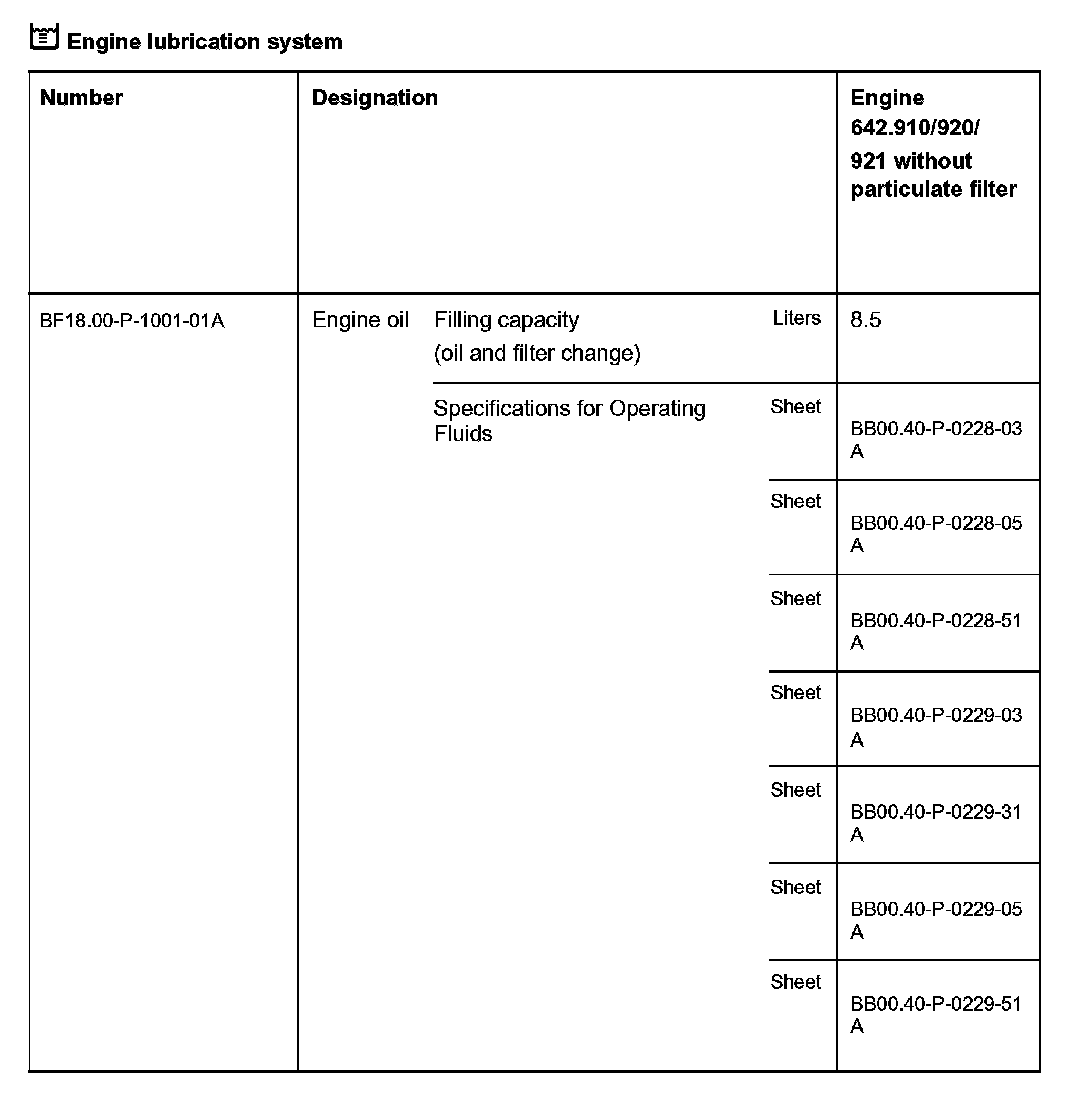

Engine lubrication system:

Engine lubrication system:

Repair materials:
