AR01.45-P-7500-06TI Bolt Plan For Oil Pan



AR01.45-P-7500-06TI Bolt Plan For Oil Pan

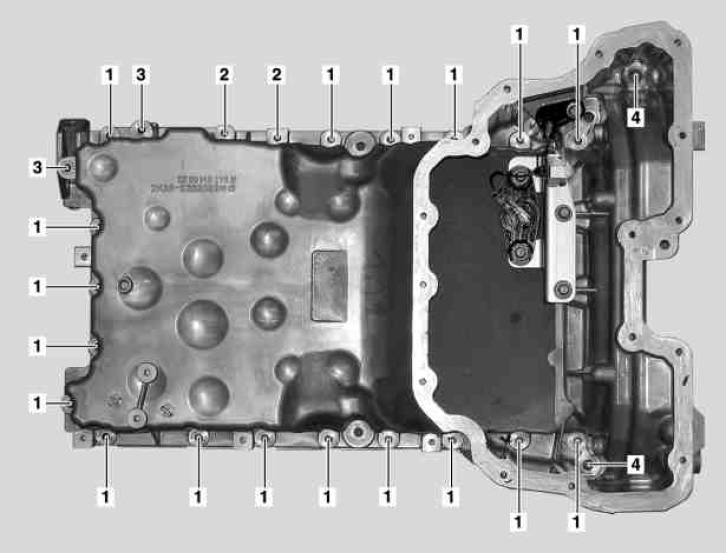

1 Observe sequence of bolt plan when screwing our or screwing in.

Observe different bolt lengths and bolt diameters.

1 Bolts M6x30
2 Bolts M6x40
3 Bolts M6x60
4 Bolts M8x25
