E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Engine Lubrication
>>
Oil Cooler
>>
Service and Repair
Oil Cooler: Service and Repair
AR18.30-P-6840TI Removing/installing the oil-water heat exchanger

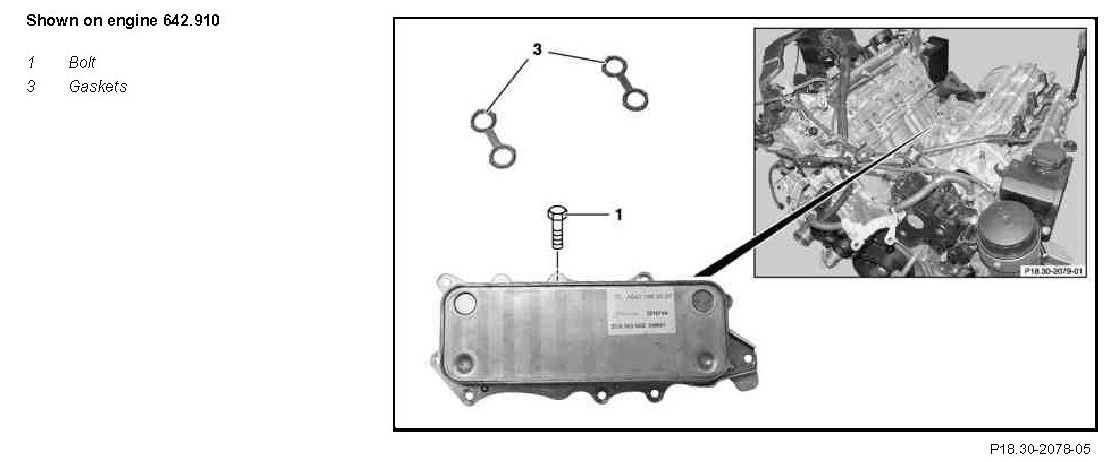

Component Identification:

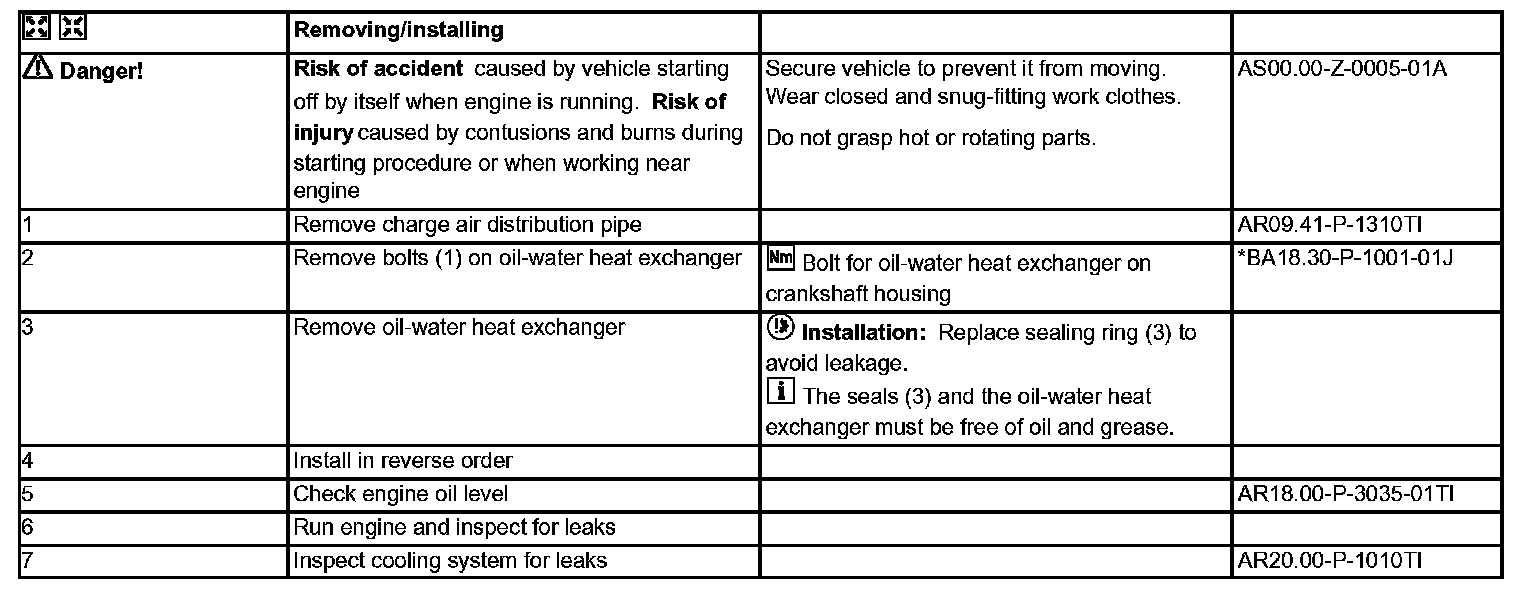

Remove/install Steps 1-7:
Oil cooling system:
