Engine Oil Dip Stick - Dip Stick Tube: Service and Repair
AR18.40-P-3510TI Remove/install dipstick guide tube

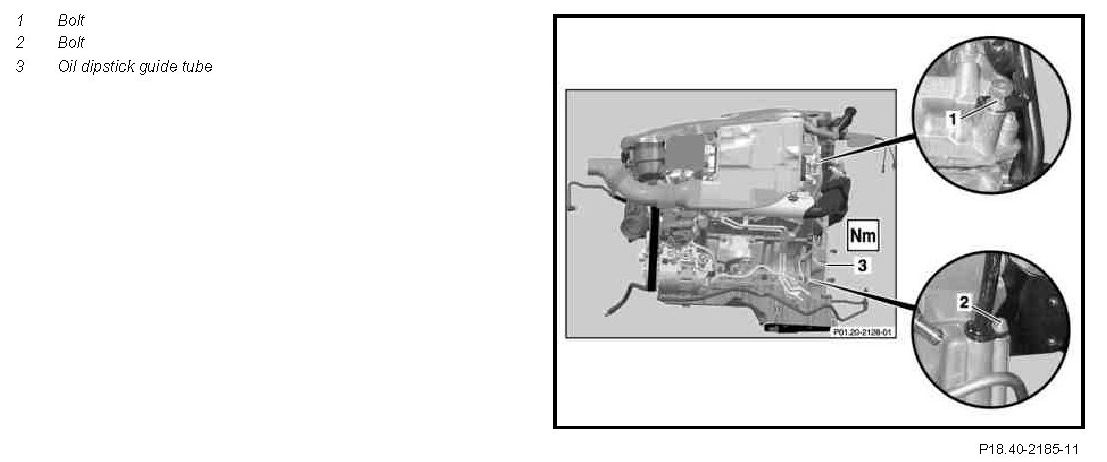

Component Identification:

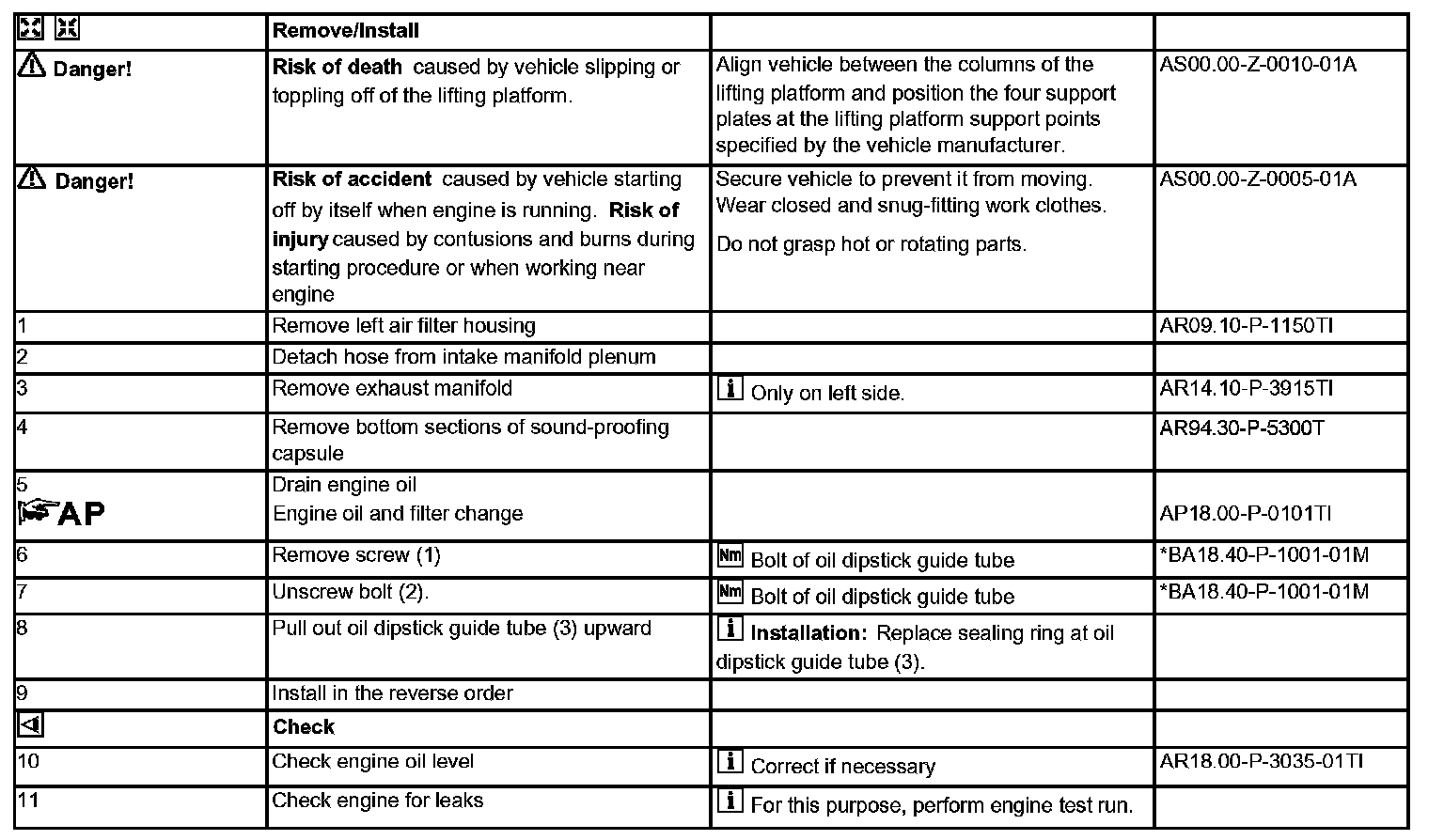

Remove/install Steps 1-11:

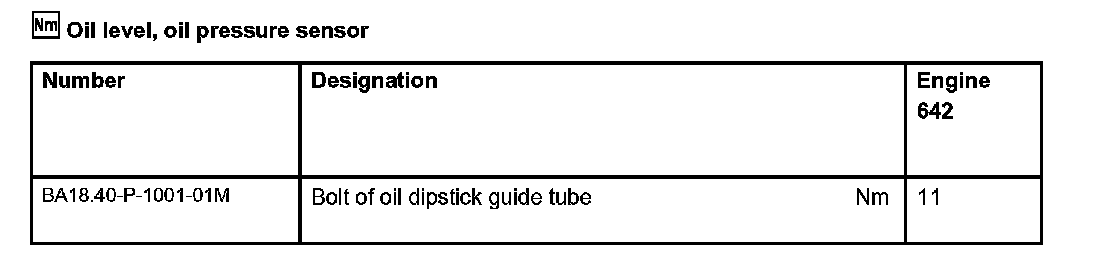

Oil level, oil pressure sensor:
