AR01.20-P-5014TI Remove/Install Cylinder Head Cover

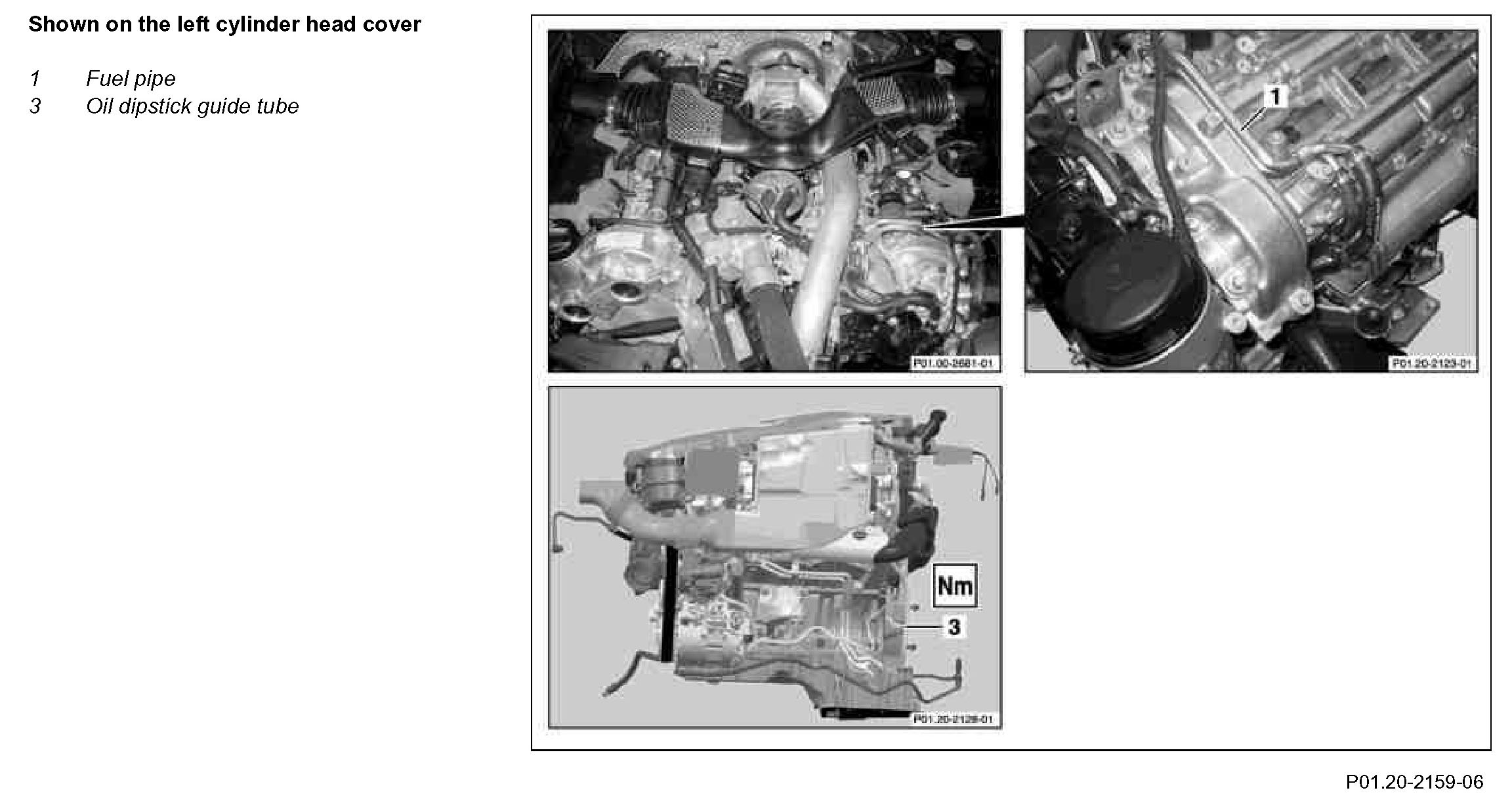

Component Identification:

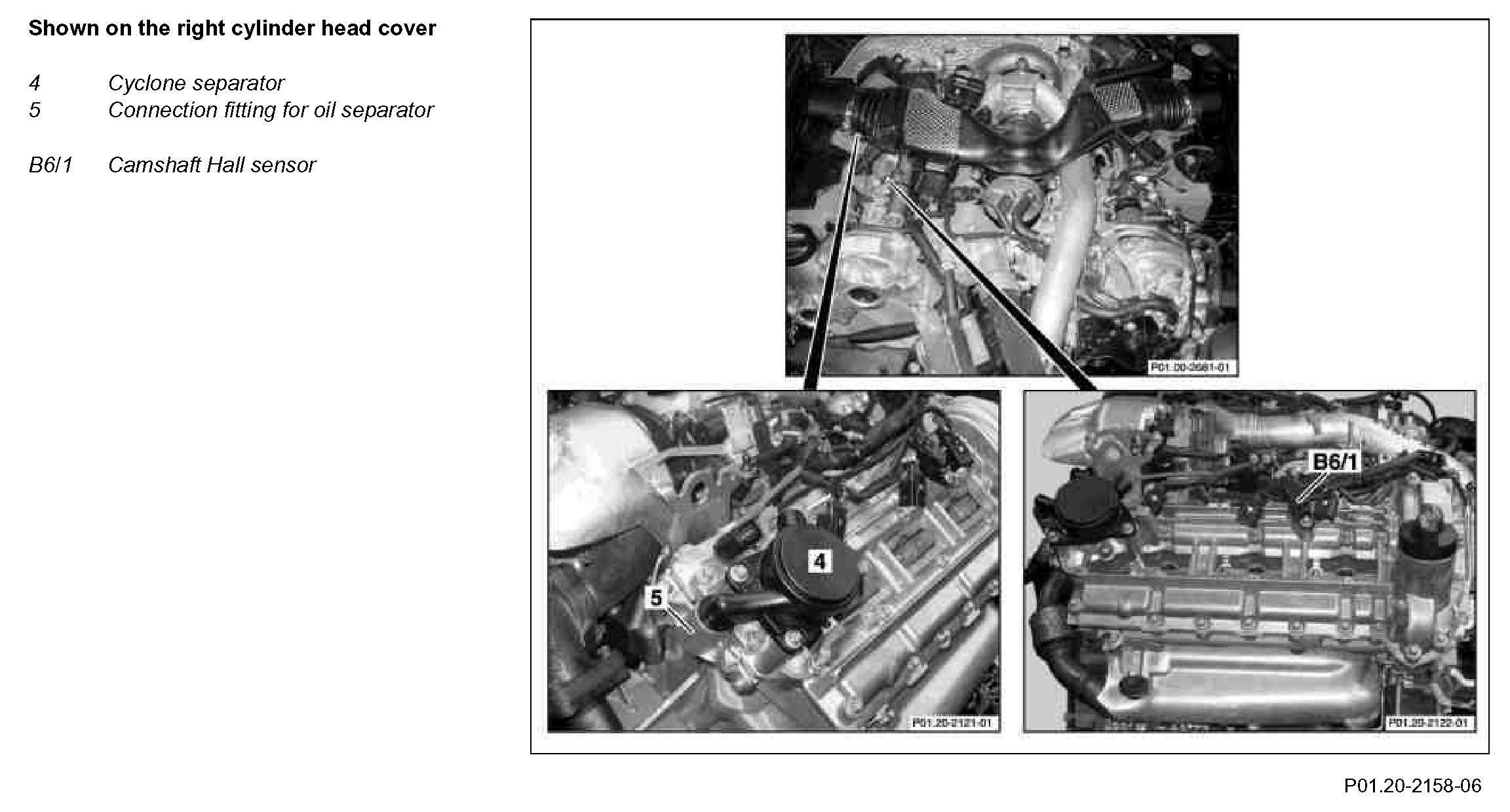

Component Identification:

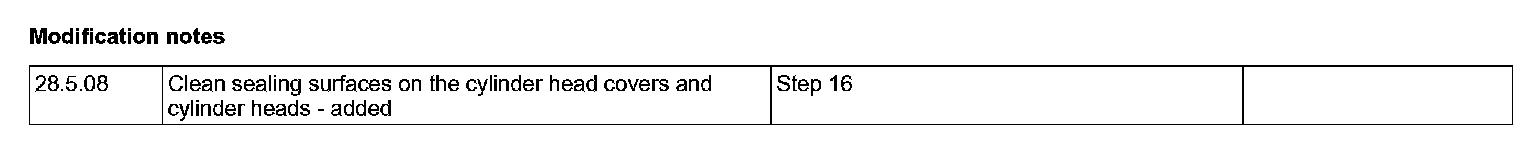

Modification notes:

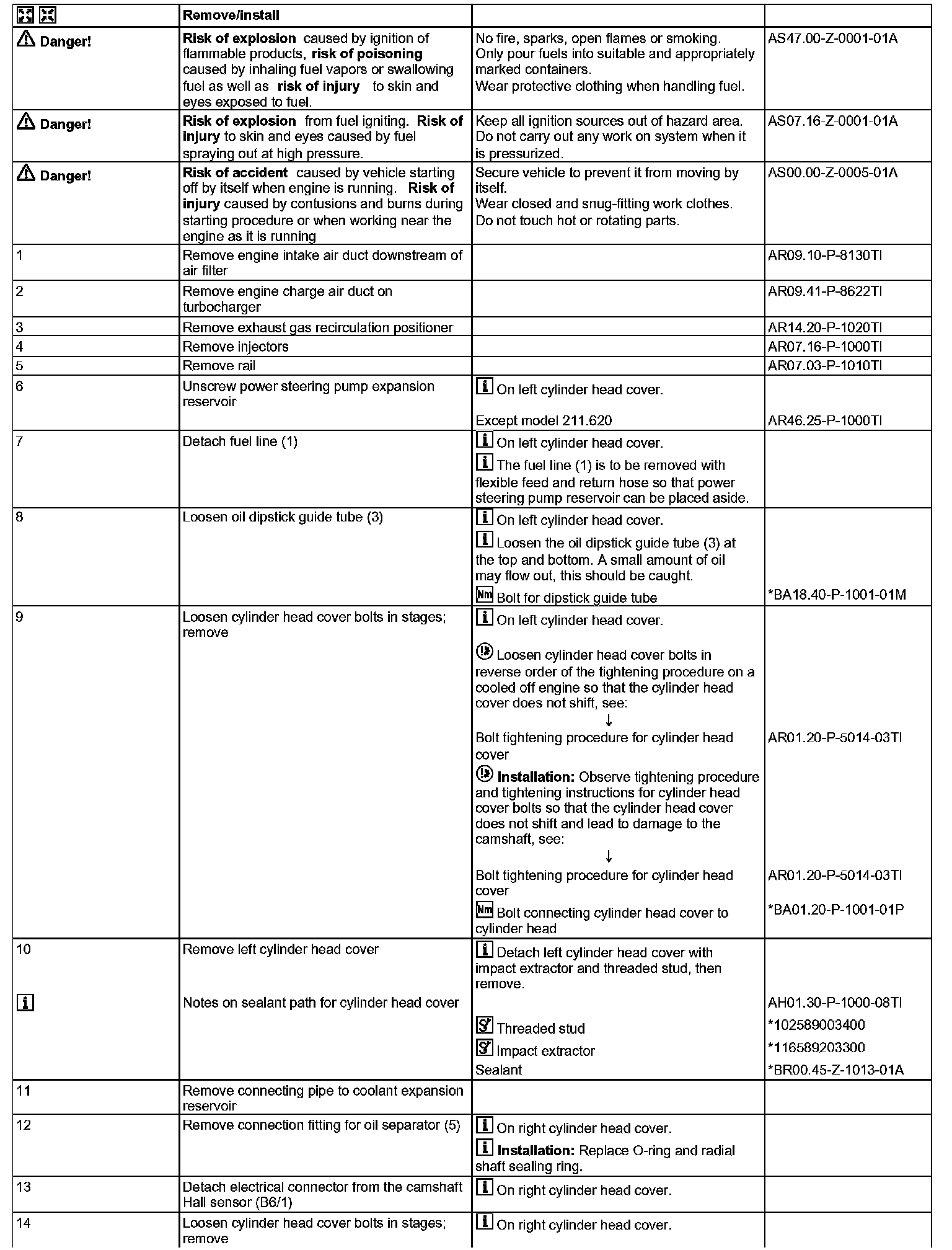

Steps 1-14:

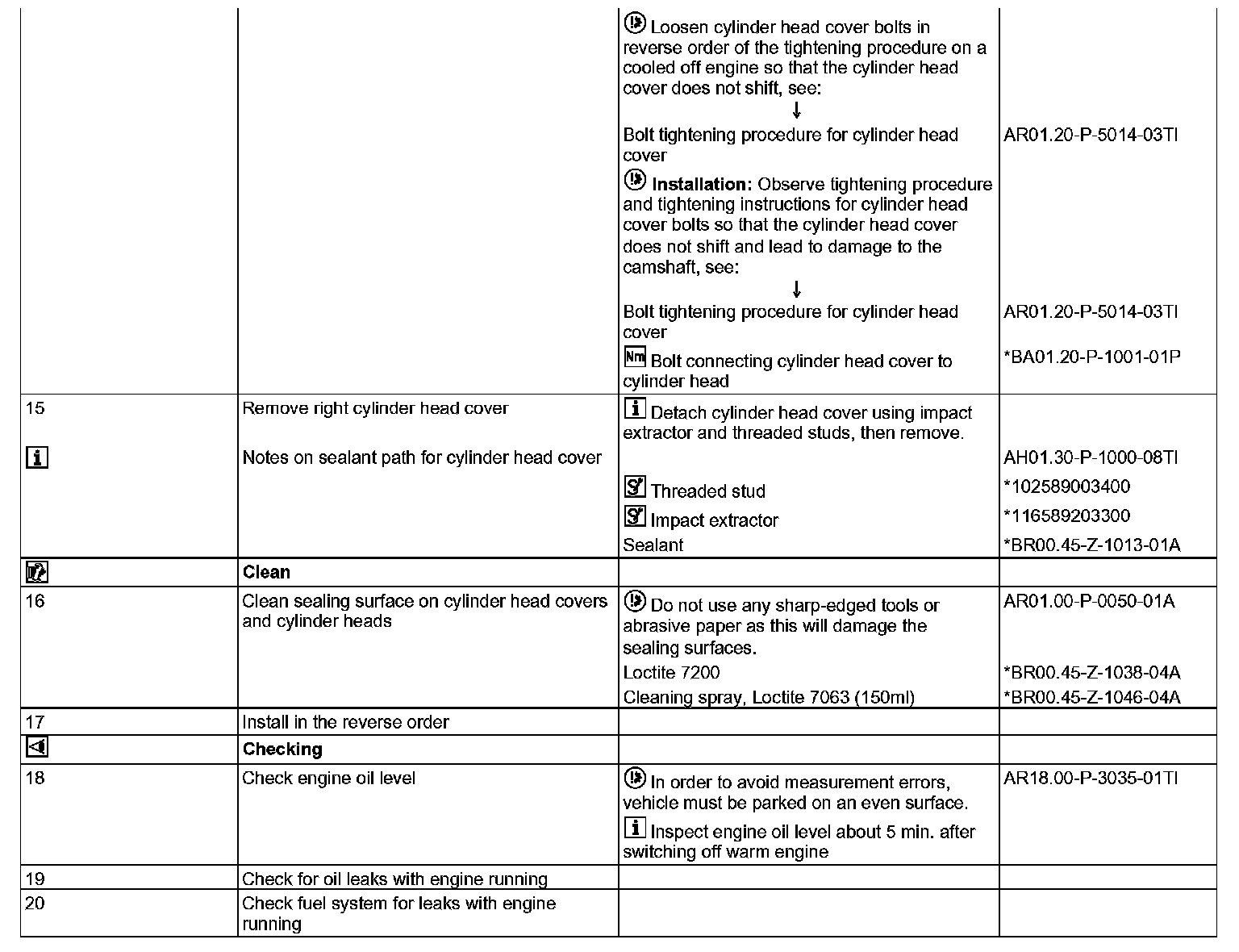

Steps 14 (Continued)-20:

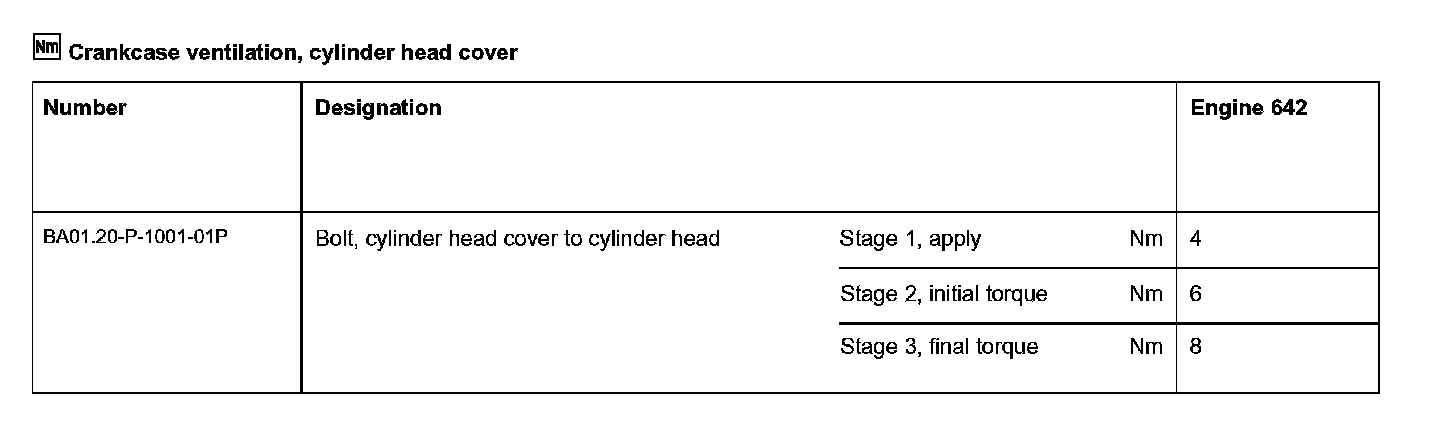

Crankcase ventilation, cylinder head cover:

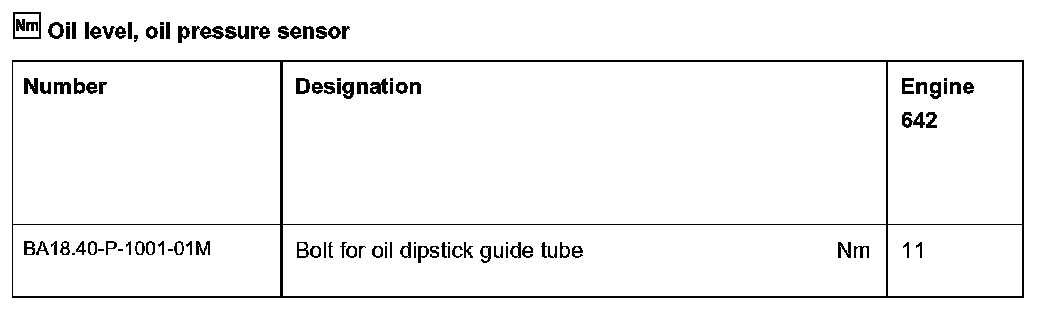

Oil level, oil pressure sensor:

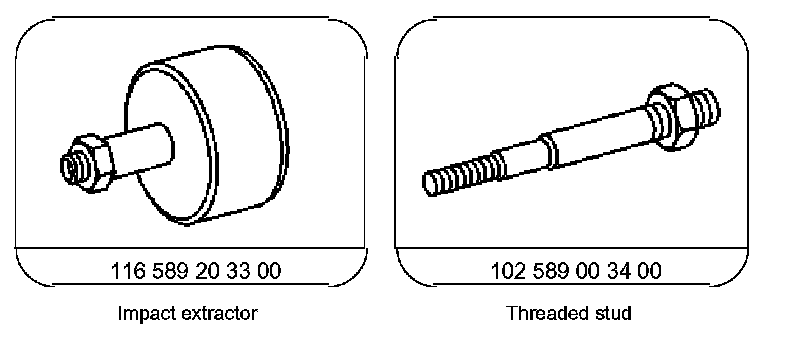

Special Tools:

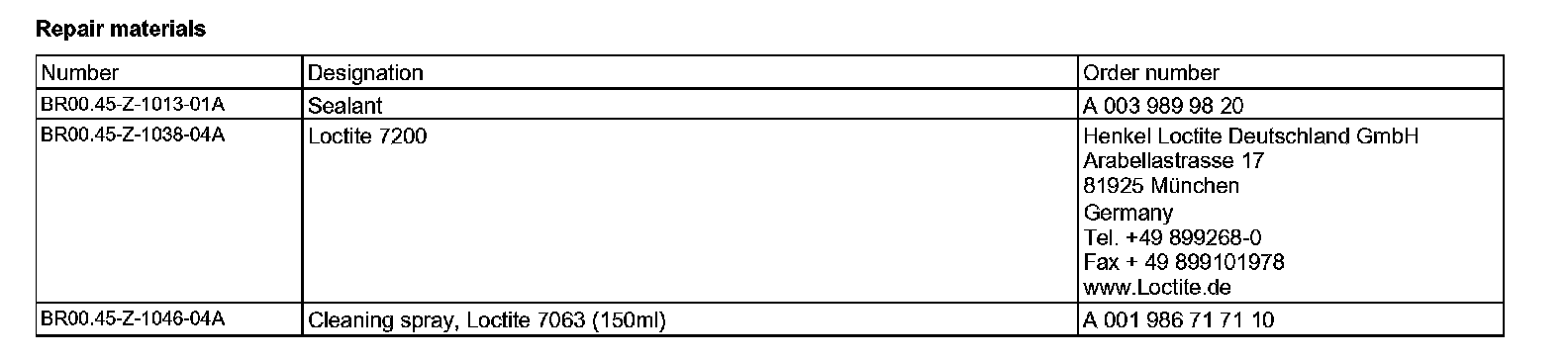

Repair materials:
