AR01.20-P-5014TI Remove, Install Cylinder Head Cover

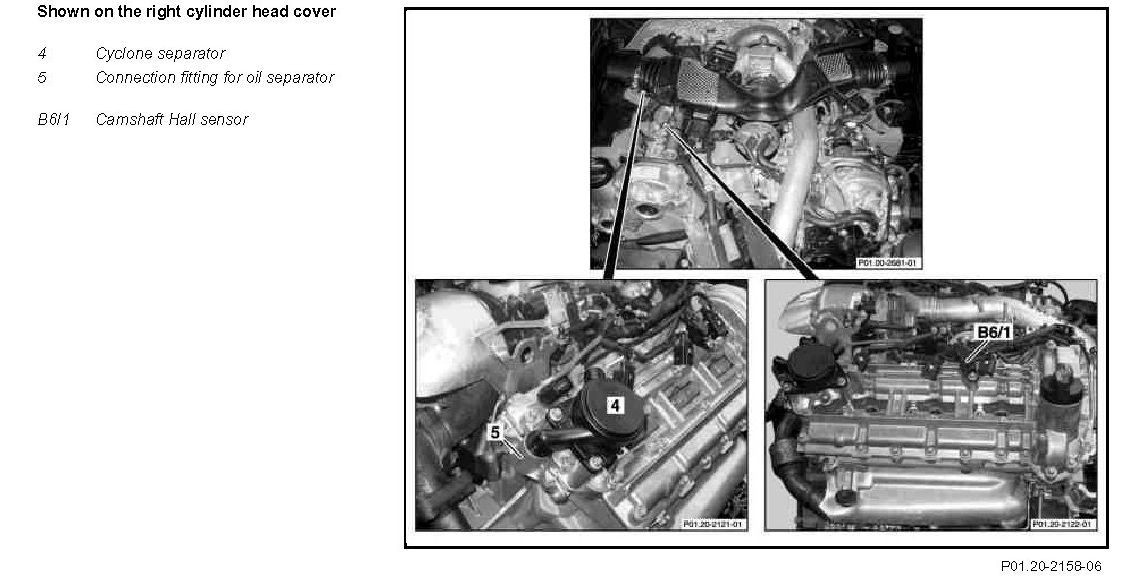

Component Identification:

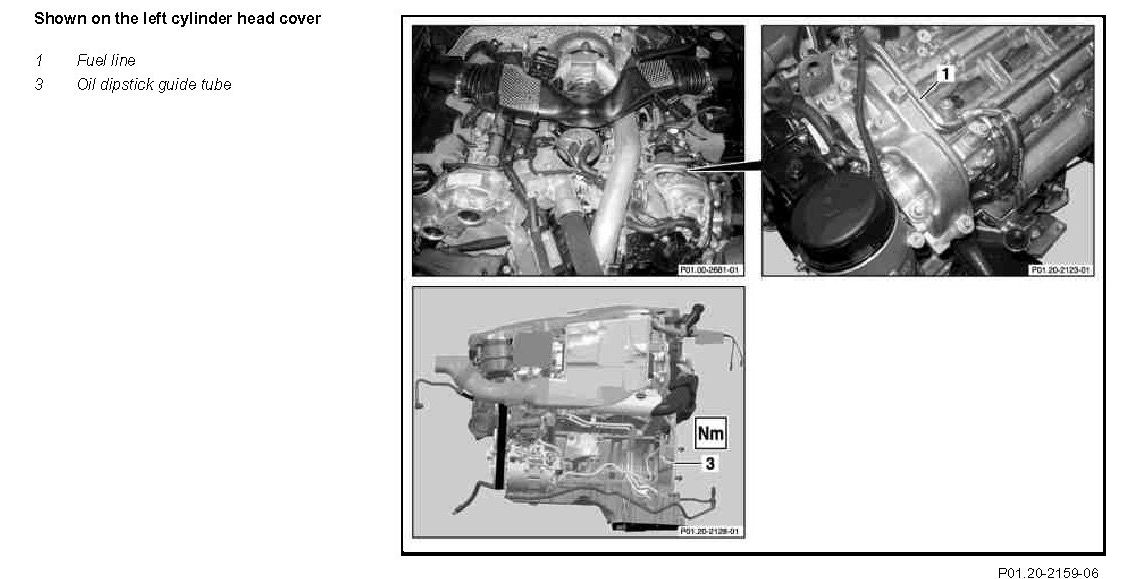

Component Identification:

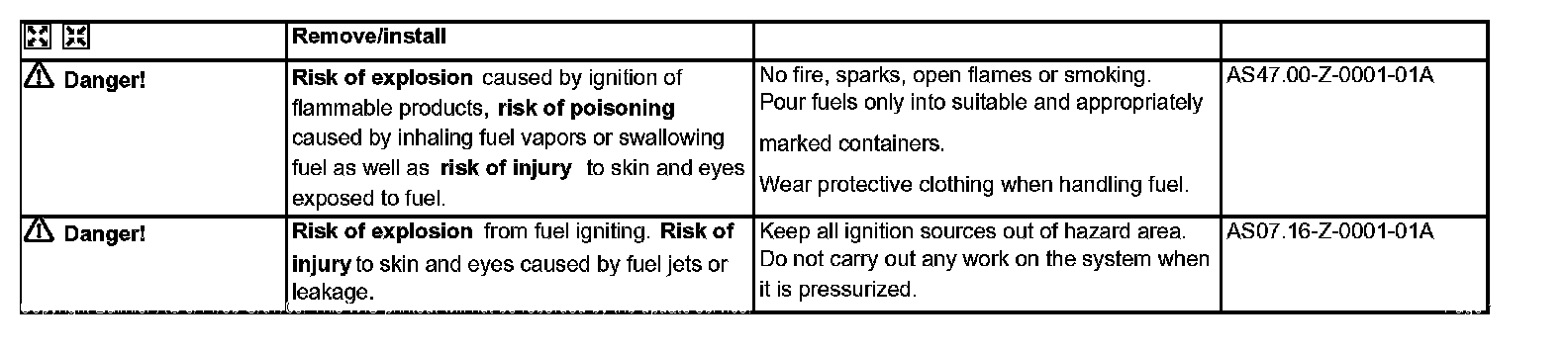

Notes:

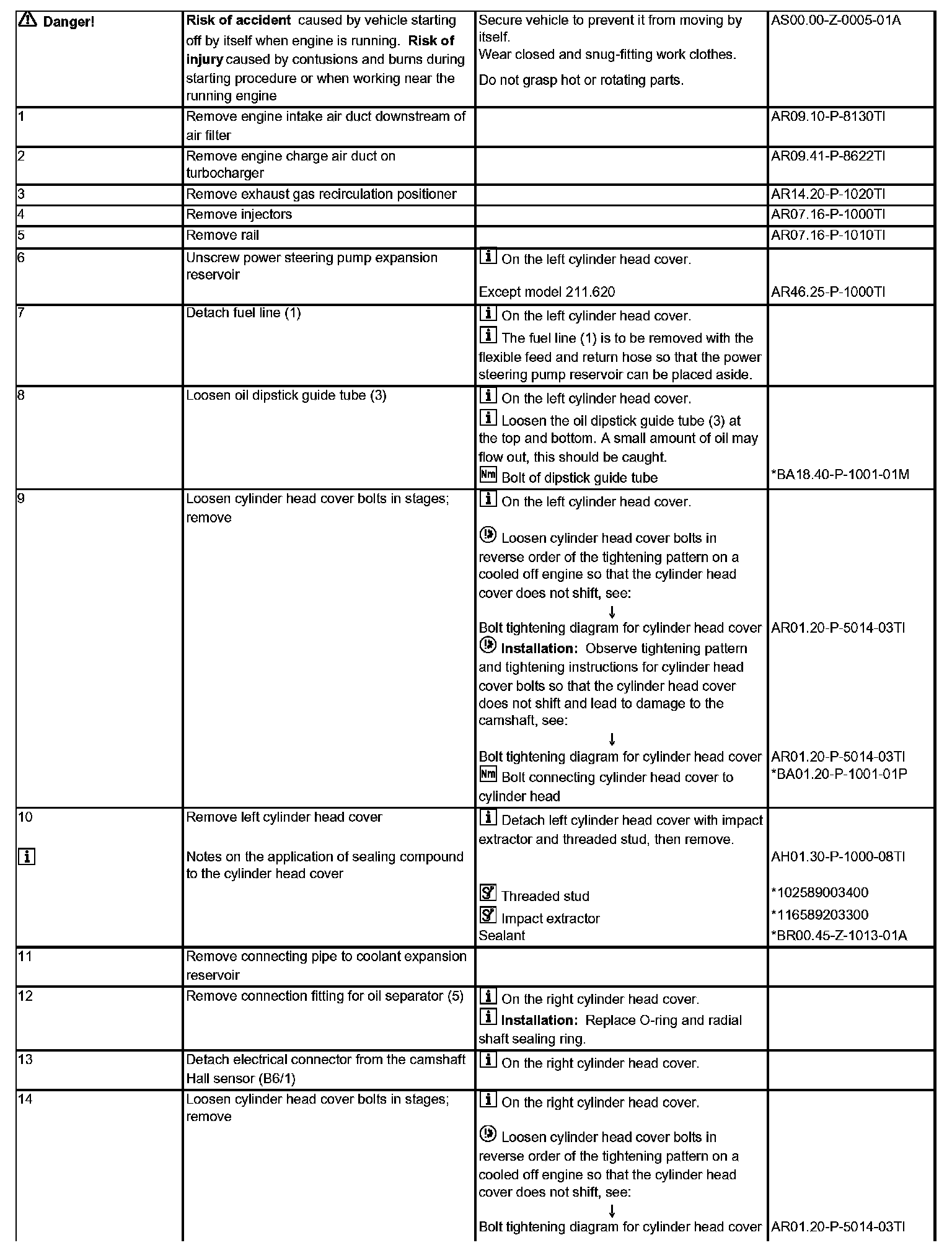

Remove/install Steps 1-14:

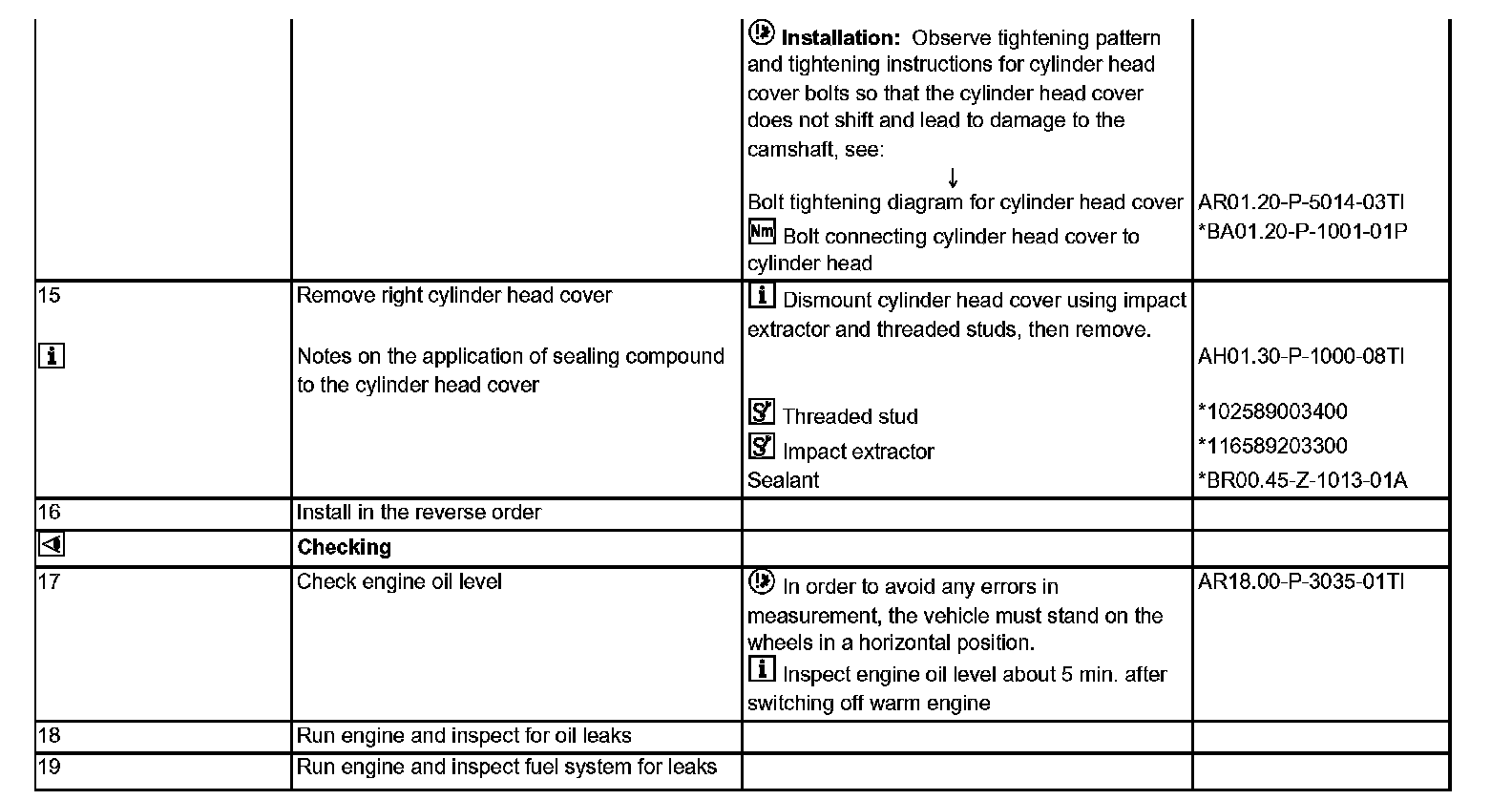

Remove/install Steps 14 (Continued)-19:

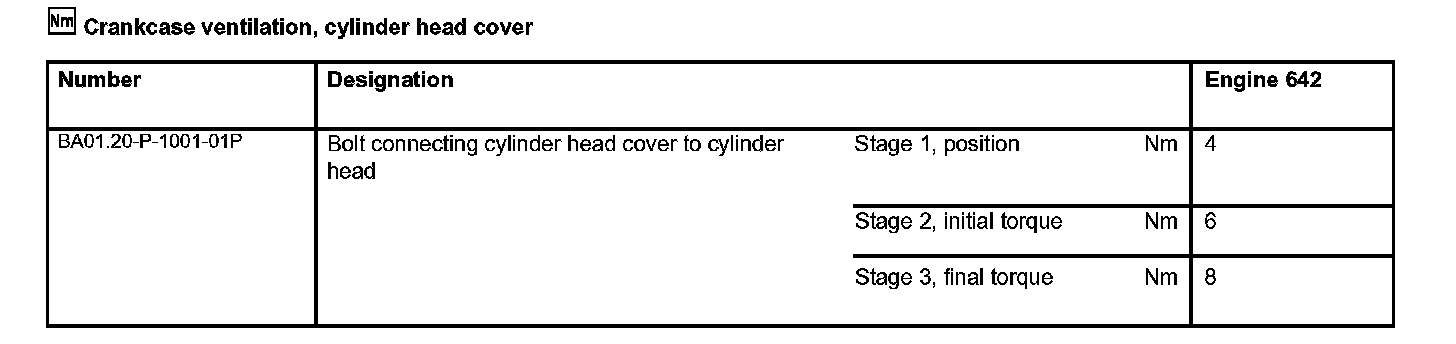

Crankcase ventilation, cylinder head cover:

Oil level, oil pressure sensor:

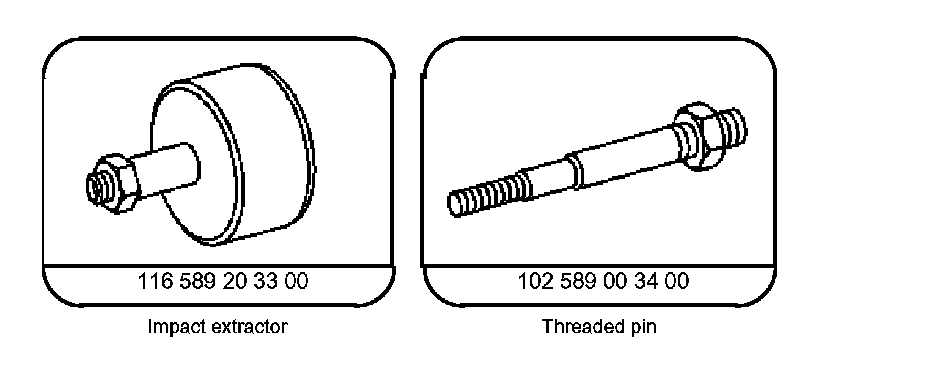

Special Tools:

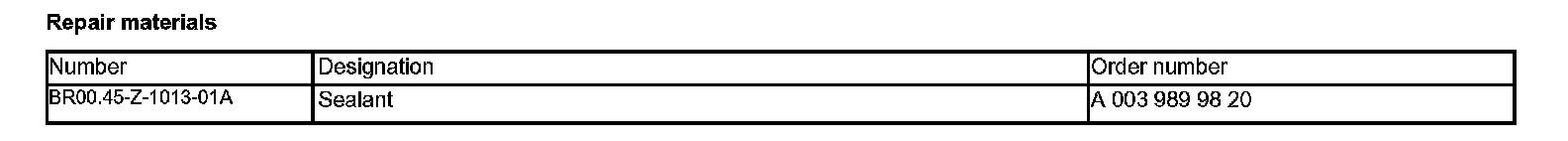

Repair materials:
