AR01.20-P-5012TI Removing/Installing The Right Cylinder Head Cover



AR01.20-P-5012TI Removing/installing the right cylinder head cover

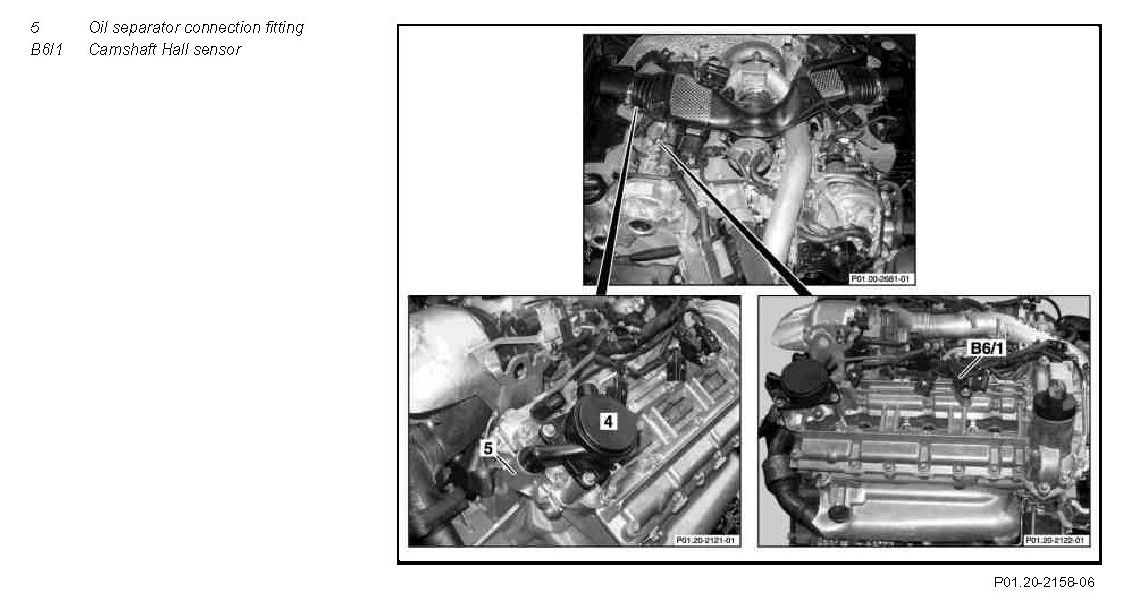

Component Identification:

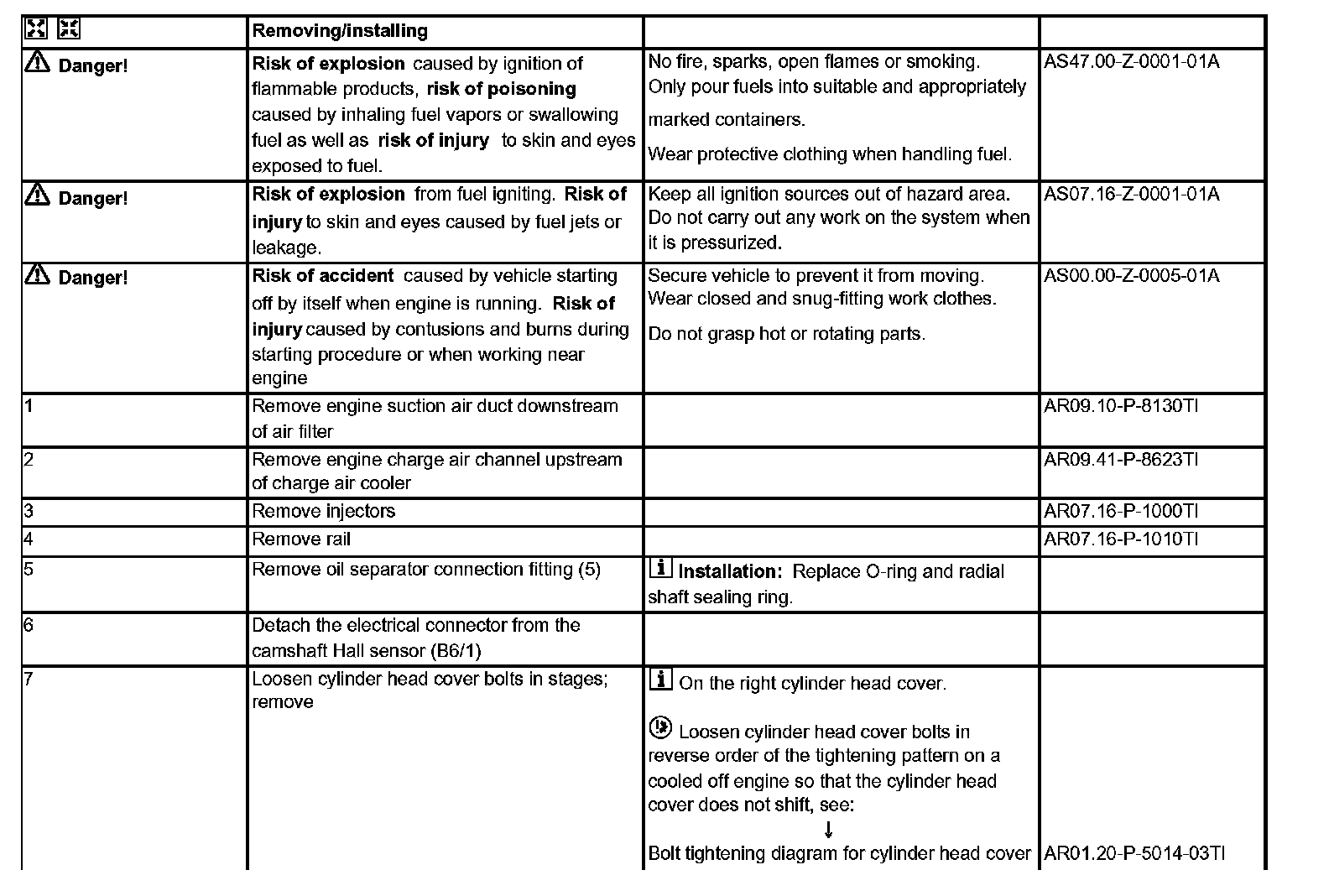

Remove/install Steps 1-7:

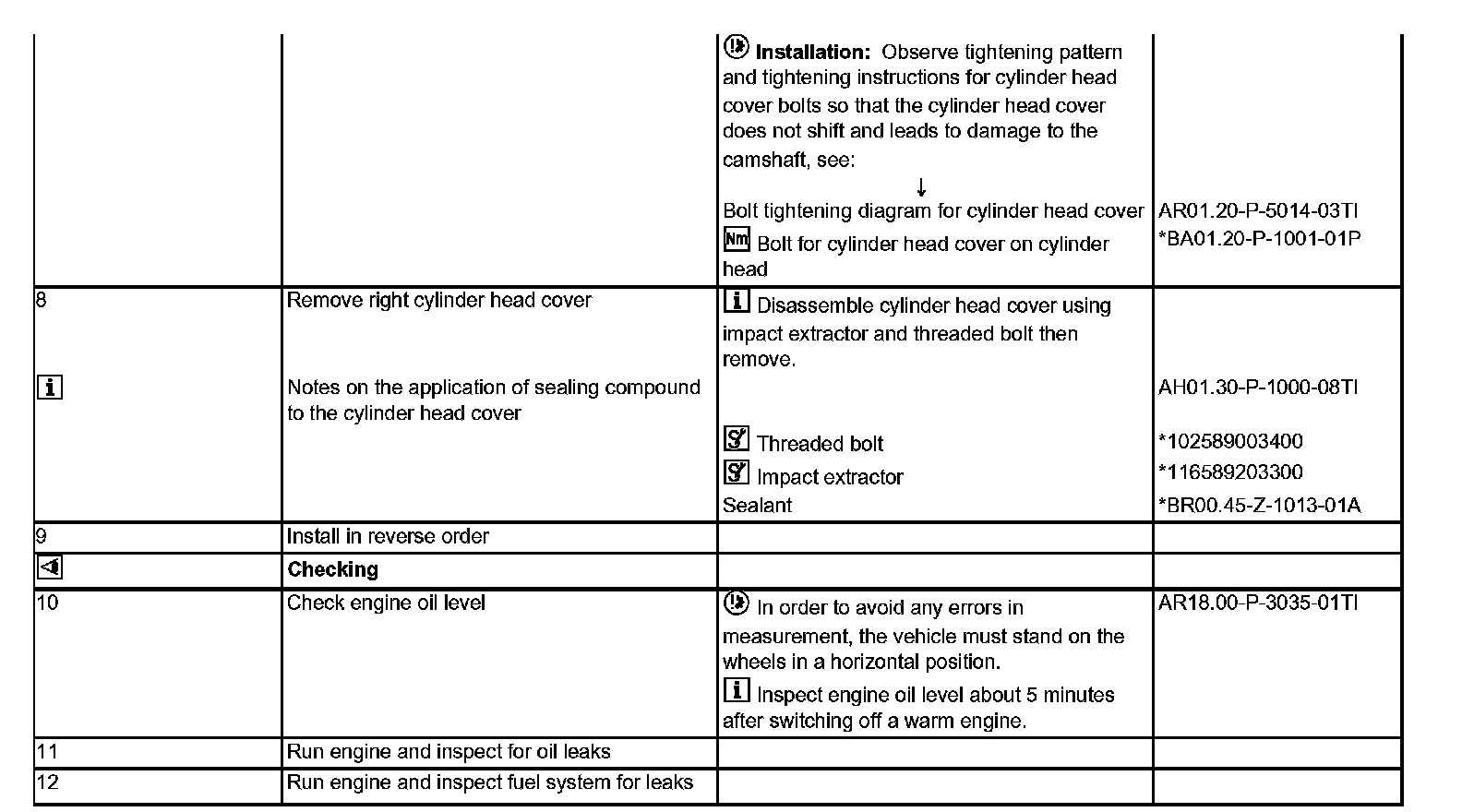

Remove/install Steps 7 (Continued)-12:

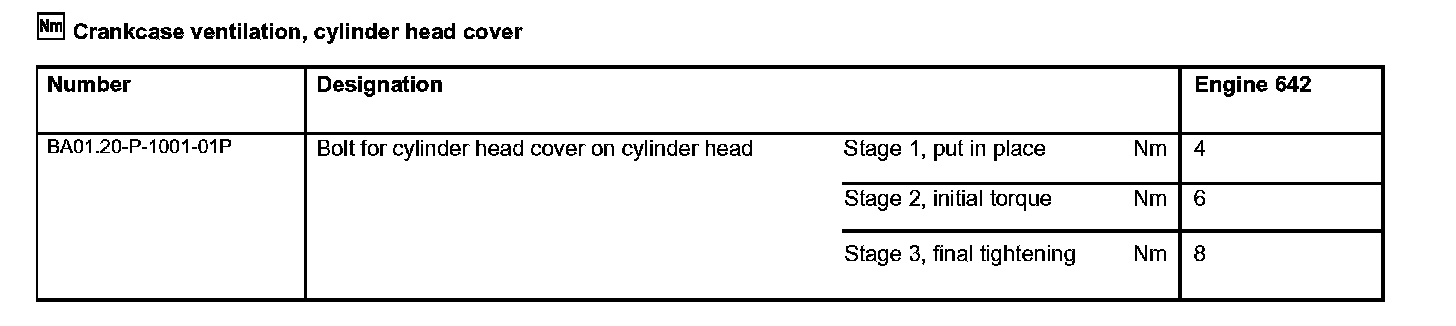

Crankcase ventilation, cylinder head cover:

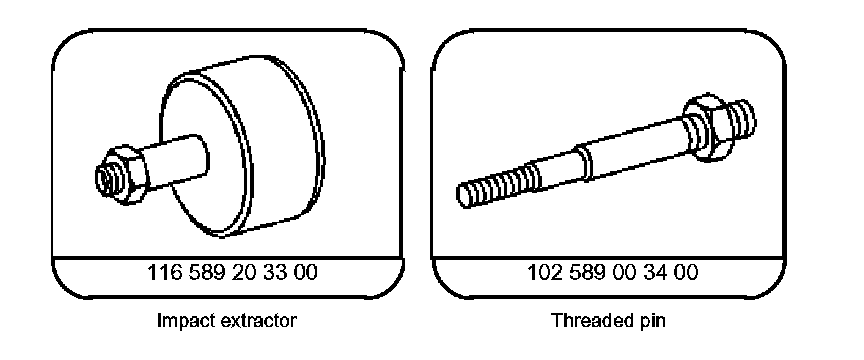

Special Tools:

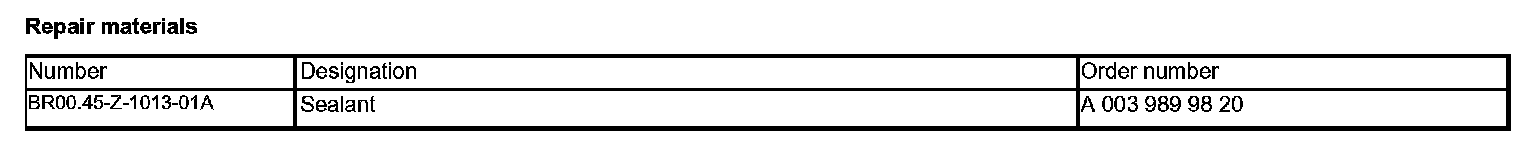

Repair materials:
