AH01.30-P-1000-08TI Notes on the Application of Sealing Compound to the Cylinder Head Cover

AH01.30-P-1000-08TI Notes On The Application Of Sealing Compound To The Cylinder Head Cover

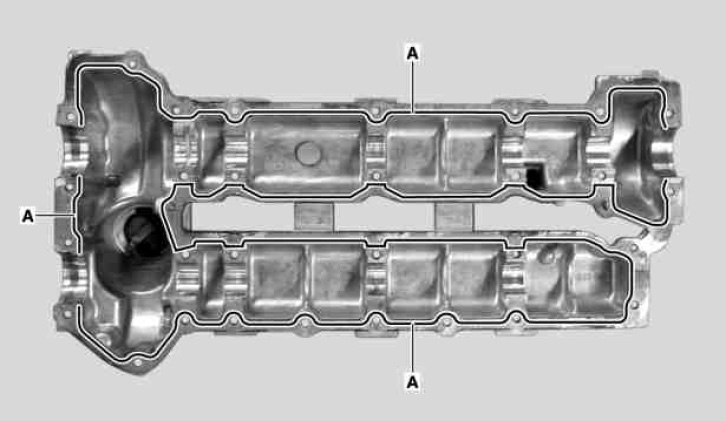

The retighten line (A) identifies the sealant run.

Sealing surfaces must be free of oil and grease. Apply sealing compound to surfaces as a bead 1.5 mm (±0.5 mm) wide. The sealing compound must be applied within 10 min. The sealing compound bead must not be spread.
