Removal and Replacement

AR01.30-P-5800TI Remove/install cylinder head

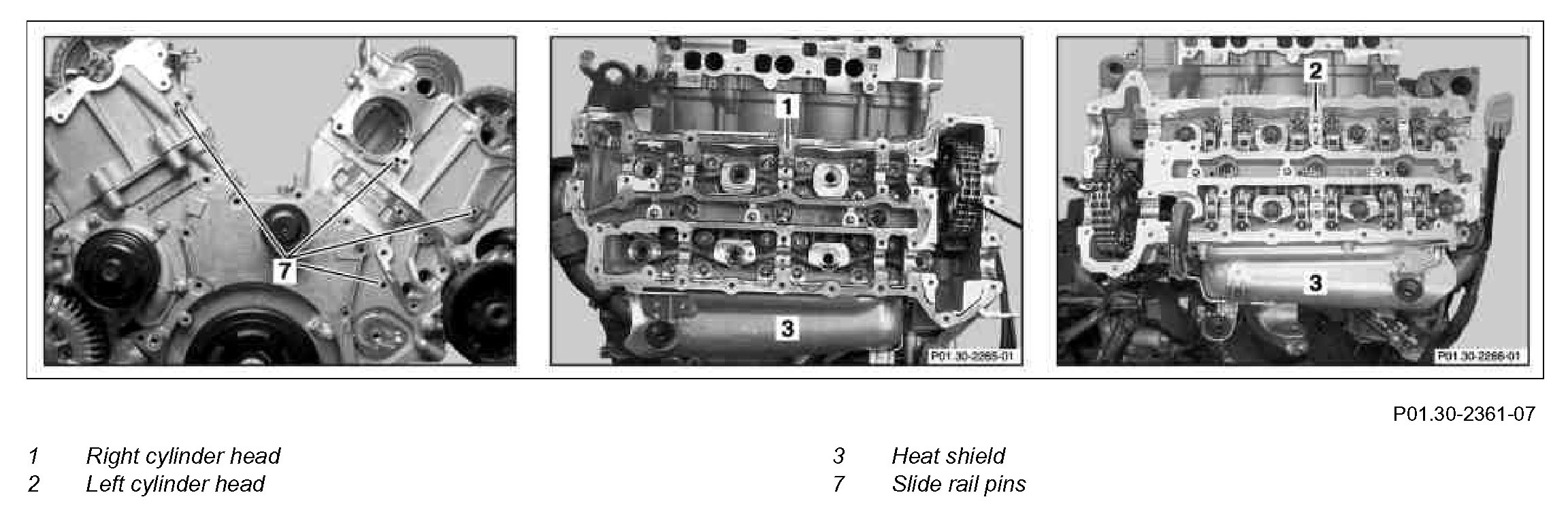

Component Identification:

Modification notes:

Steps 1-9:

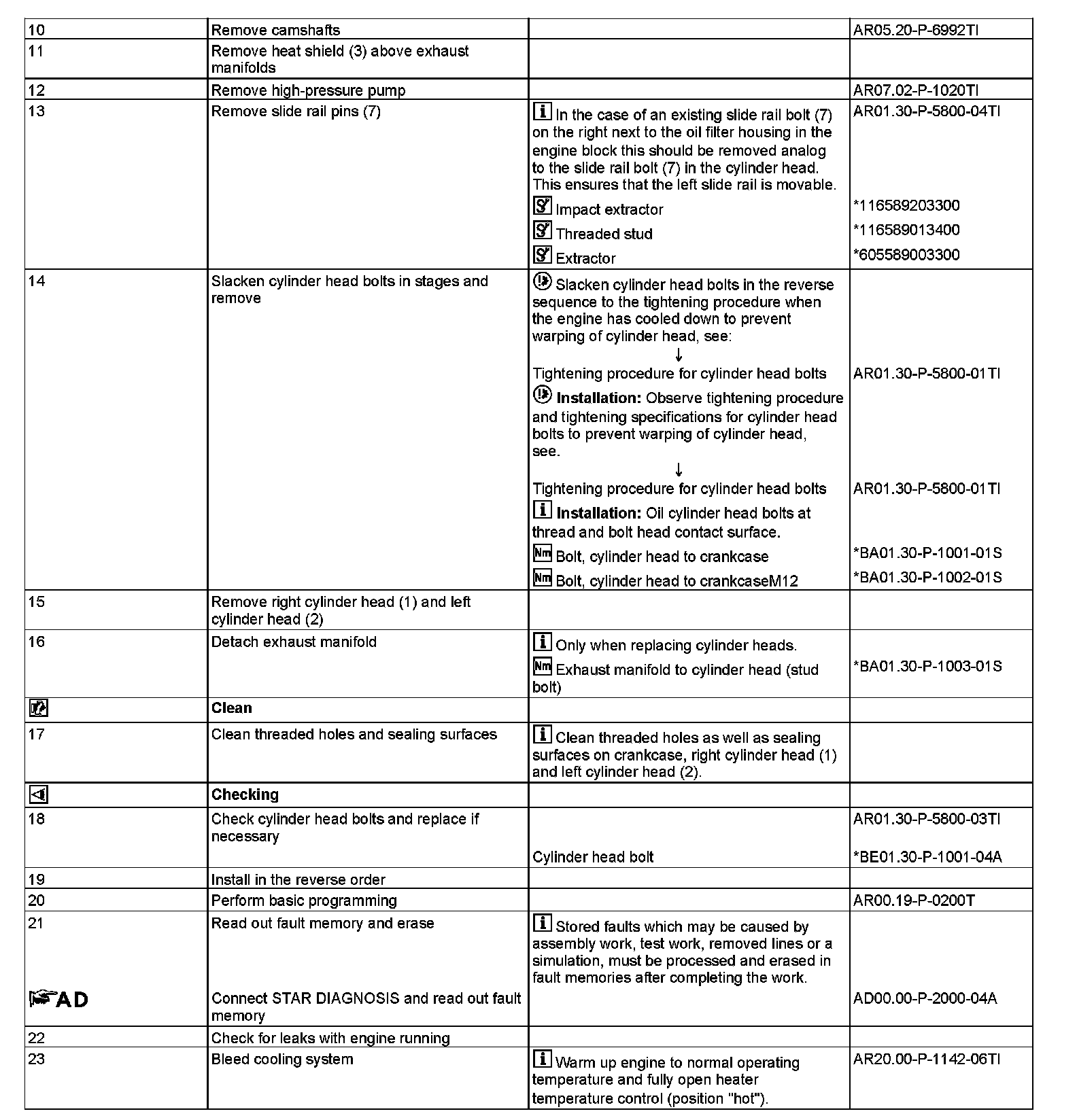

Steps 10-23:

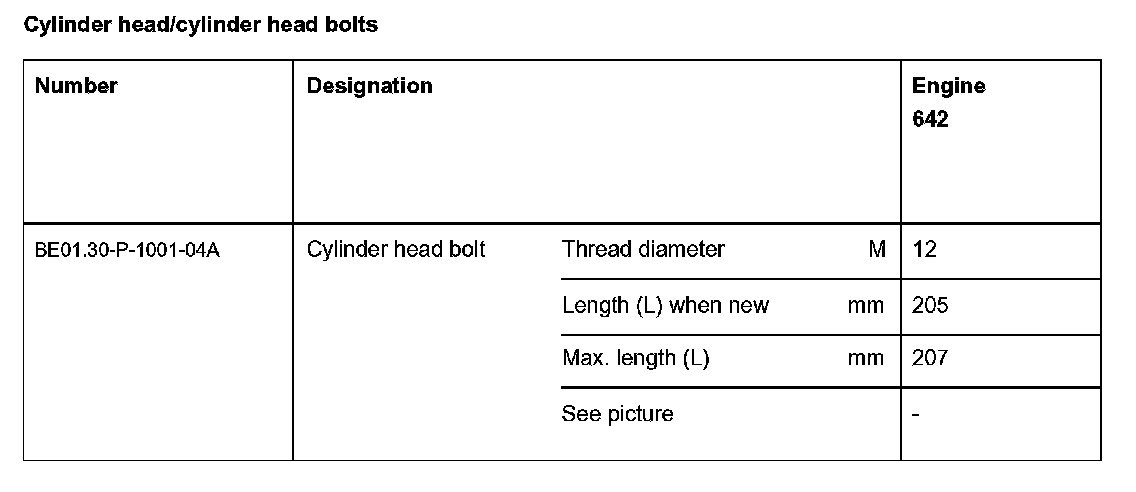

Cylinder head/cylinder head bolts:

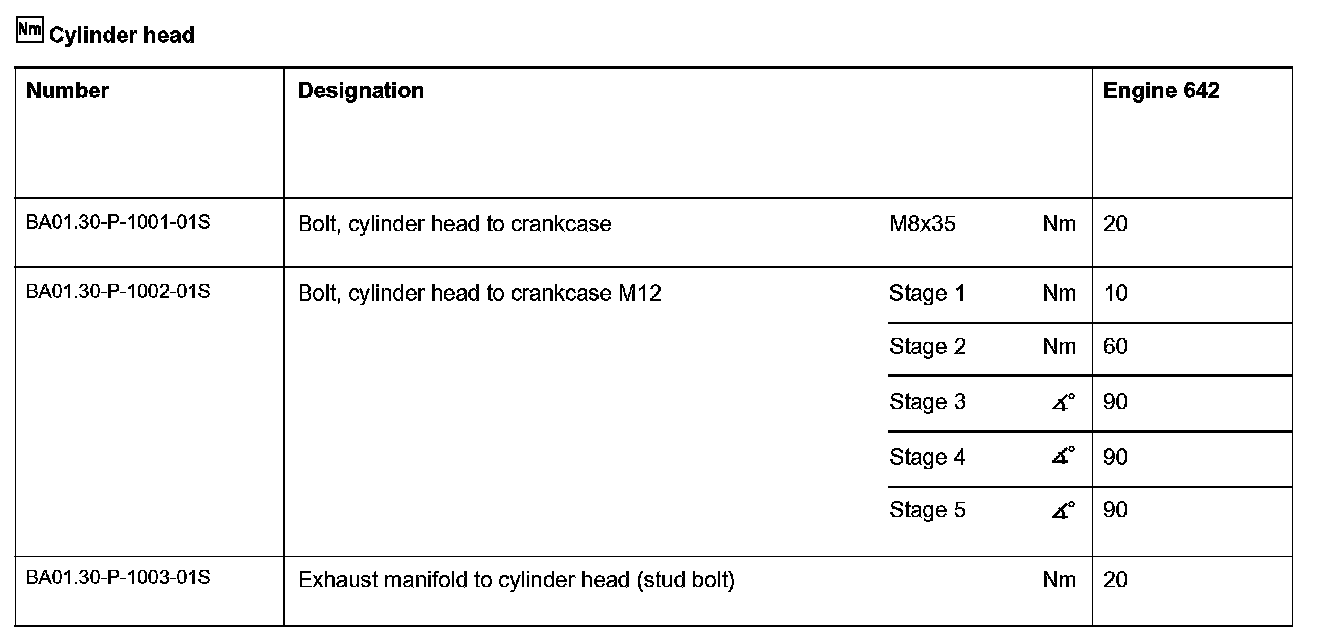

Cylinder head:

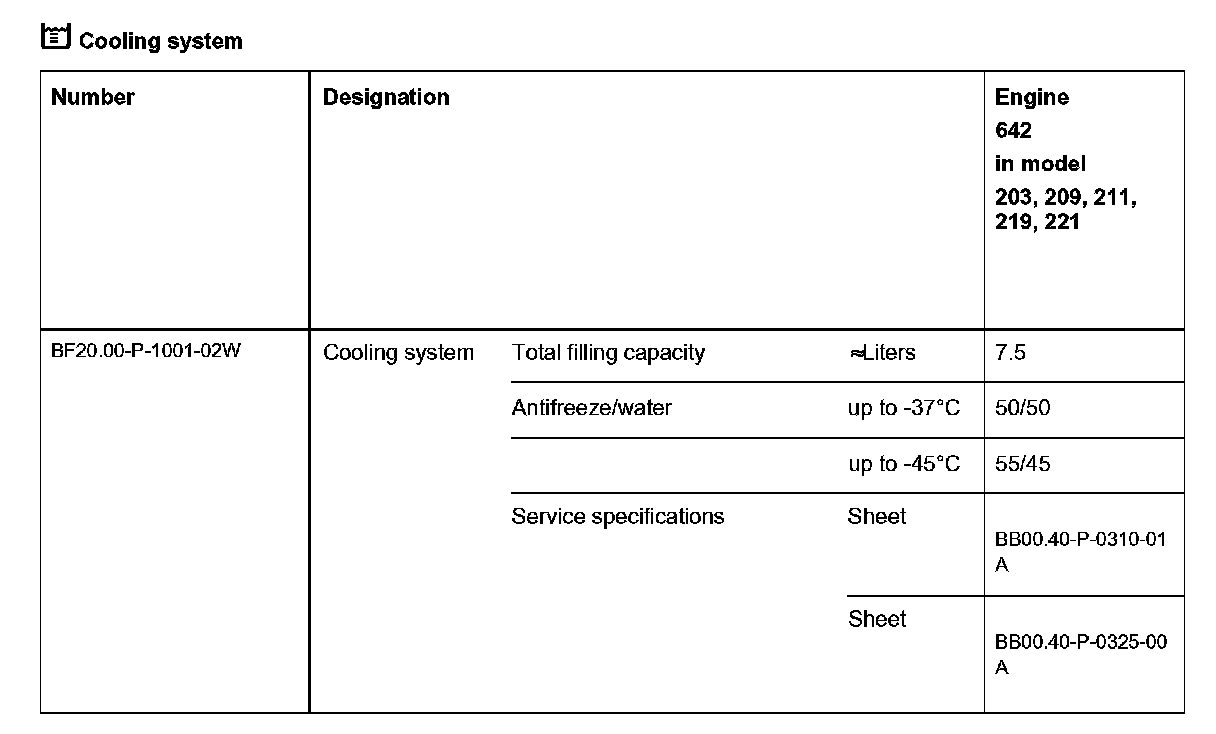

Cooling system:

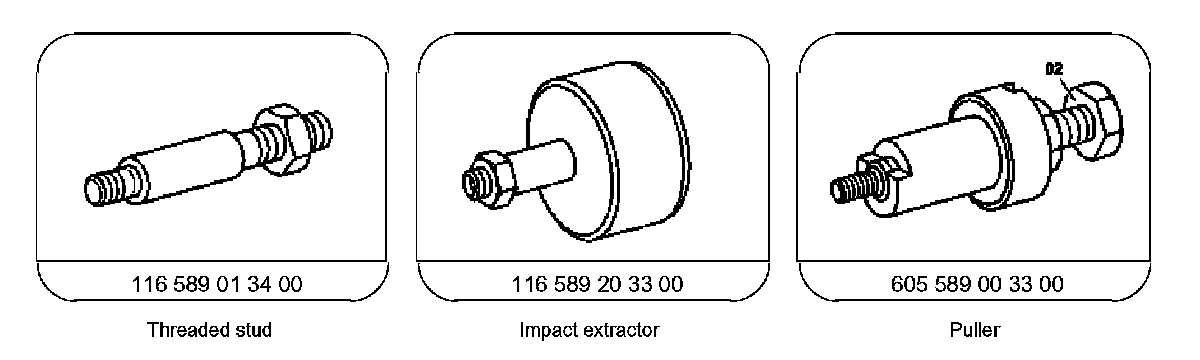

Special Tools:
