Cylinder Block Assembly: Service and Repair

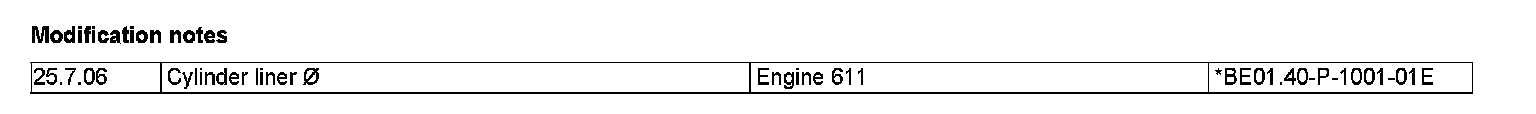

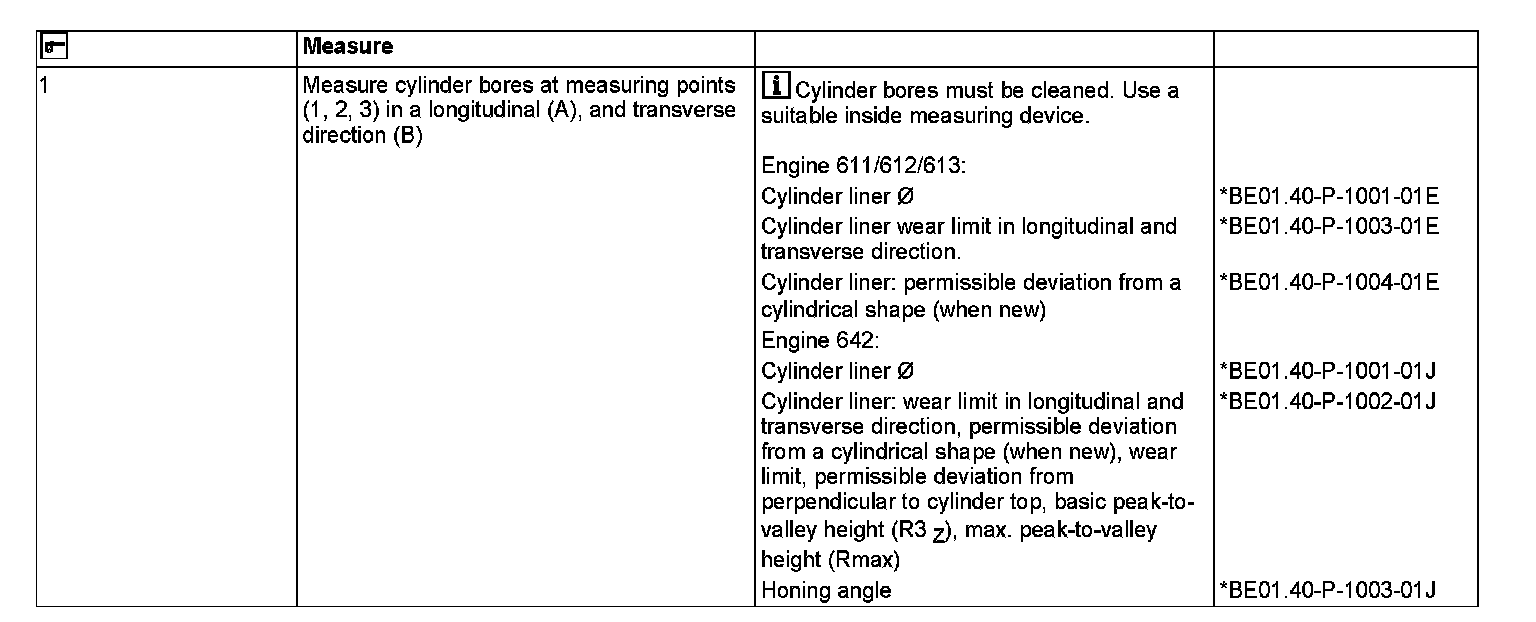

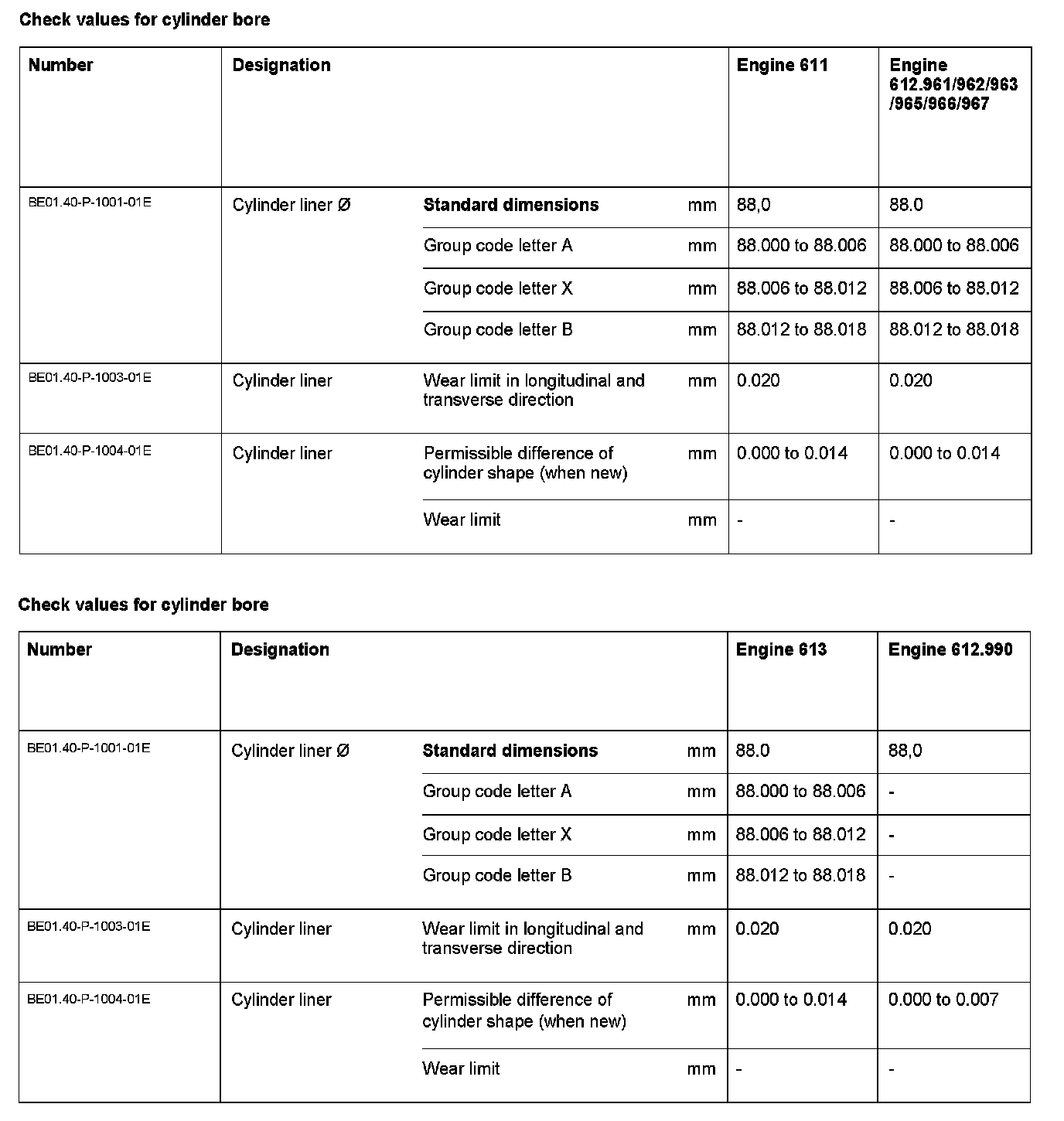

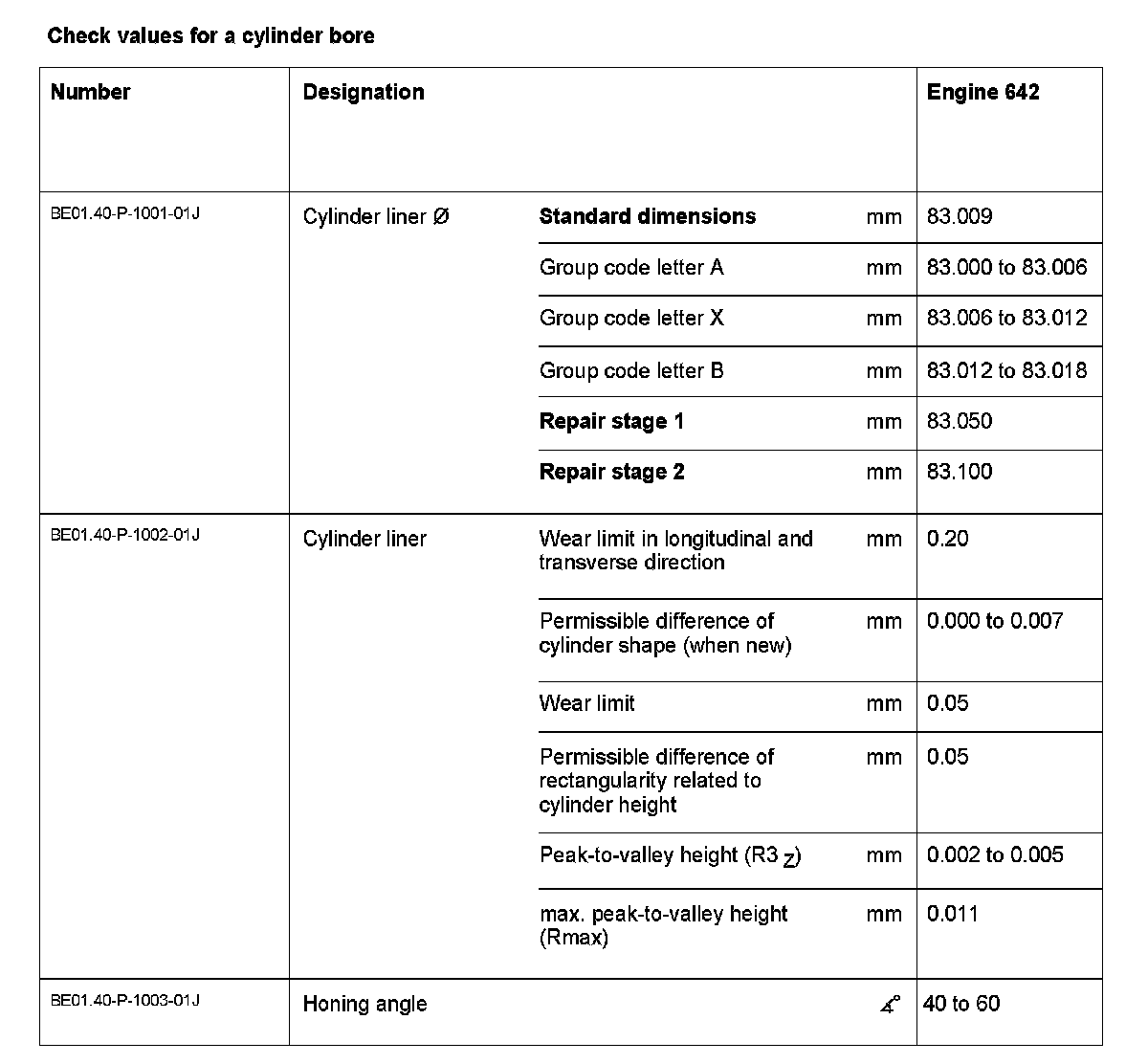

AR01.40-P-9202B Measure Cylinder Bores
ENGINE 611.960 /961 /962, 612.961 /962 /963 /965 /966 /967 /990, 613.960 /961, 642

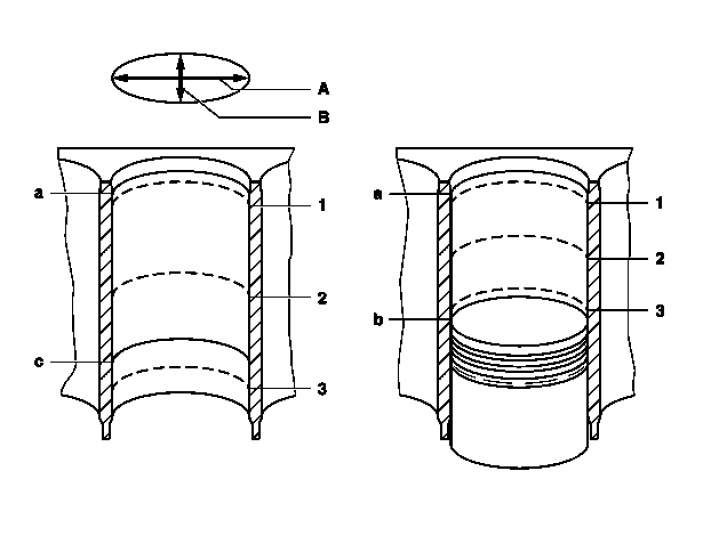

1,2,3 Cylinder bore measuring points
A Longitudinal direction
B Transverse direction
a Upper reversal point of 1st piston ring
b Bottom dead center of piston
c Bottom reversal point of oil scraper ring
