FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2007
>>
E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Cylinder Block Assembly
>>
Piston
>>
Specifications
>>
BE03.10-P-1000-02G Test Values For Pistons
BE03.10-P-1000-02G Test Values For Pistons
BE03.10-P-1000-02G Test values for pistons

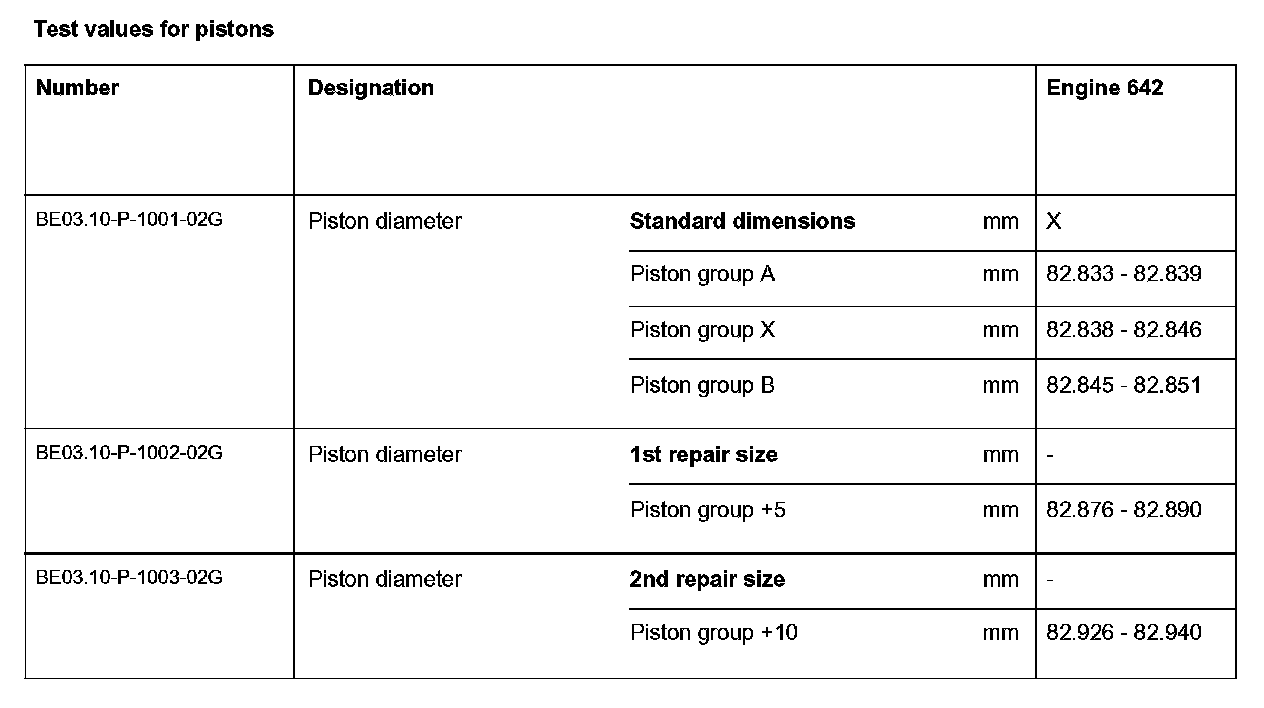

Test values for pistons:
