Piston: Service and Repair
AR03.10-P-7021TI Remove, install
piston

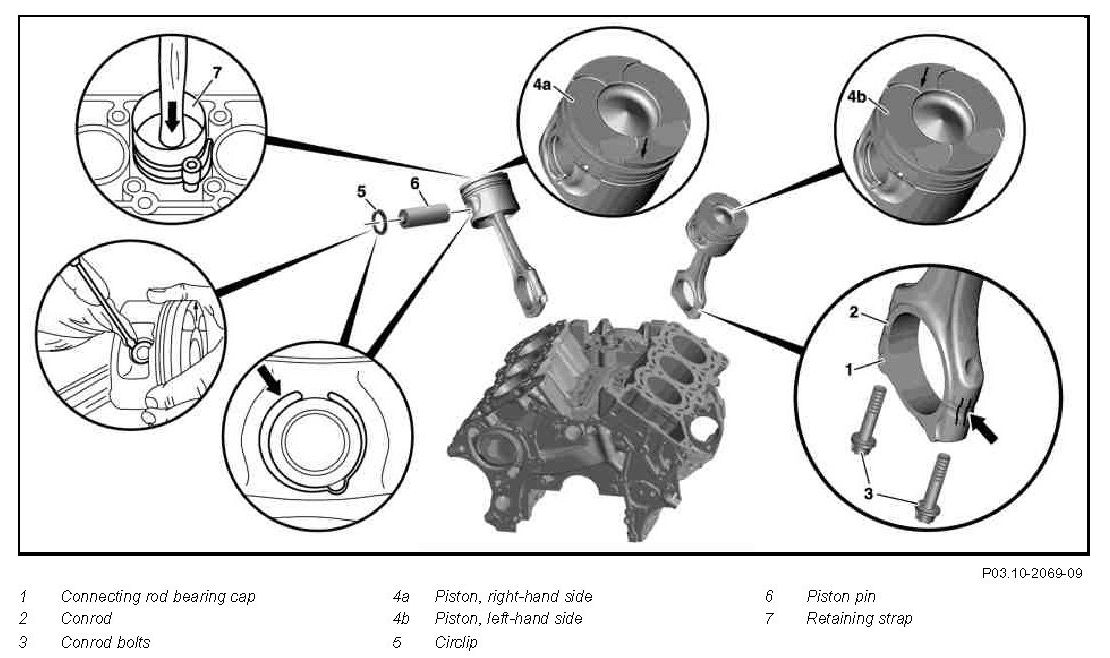

Component Identification:

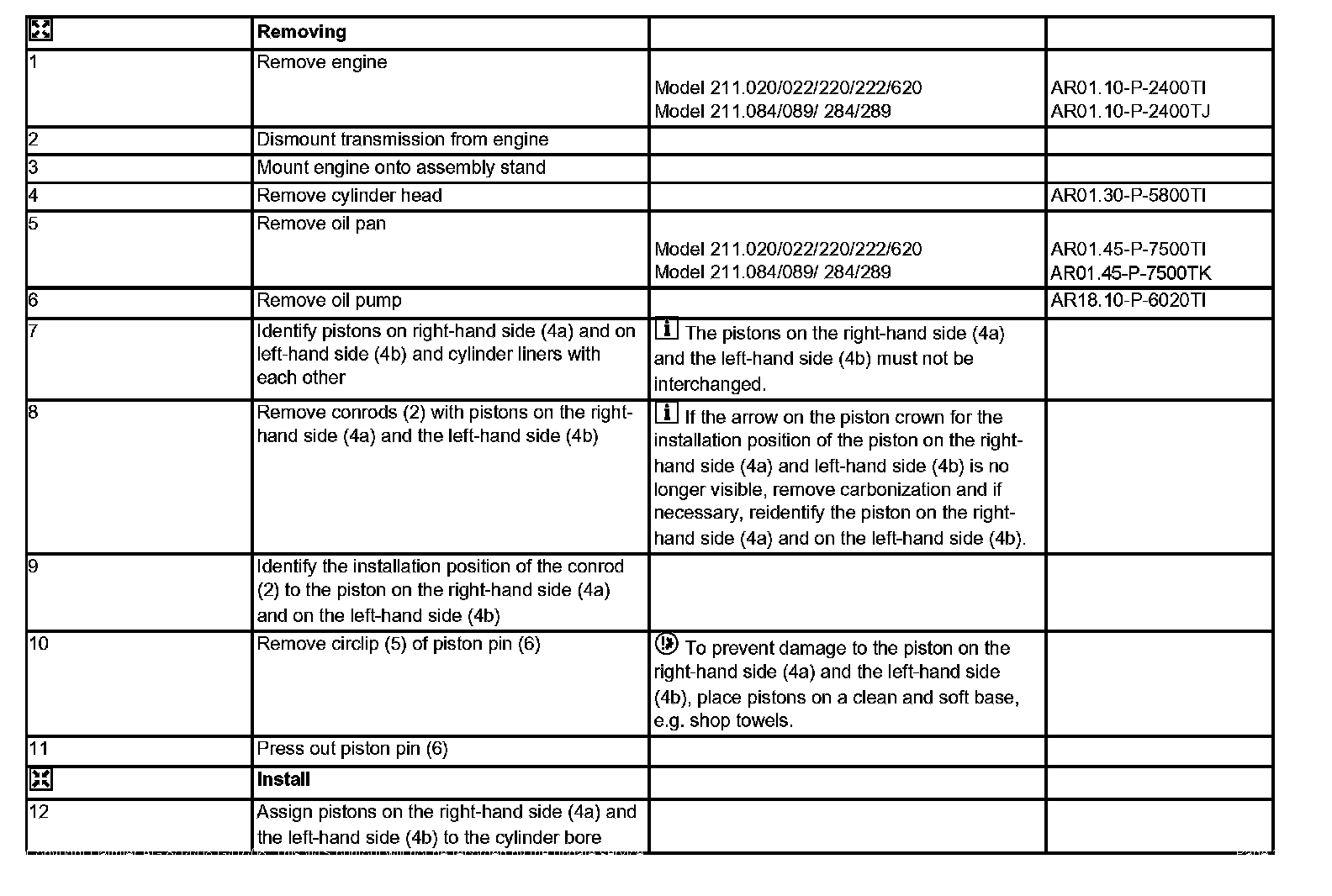

Steps 1-12:

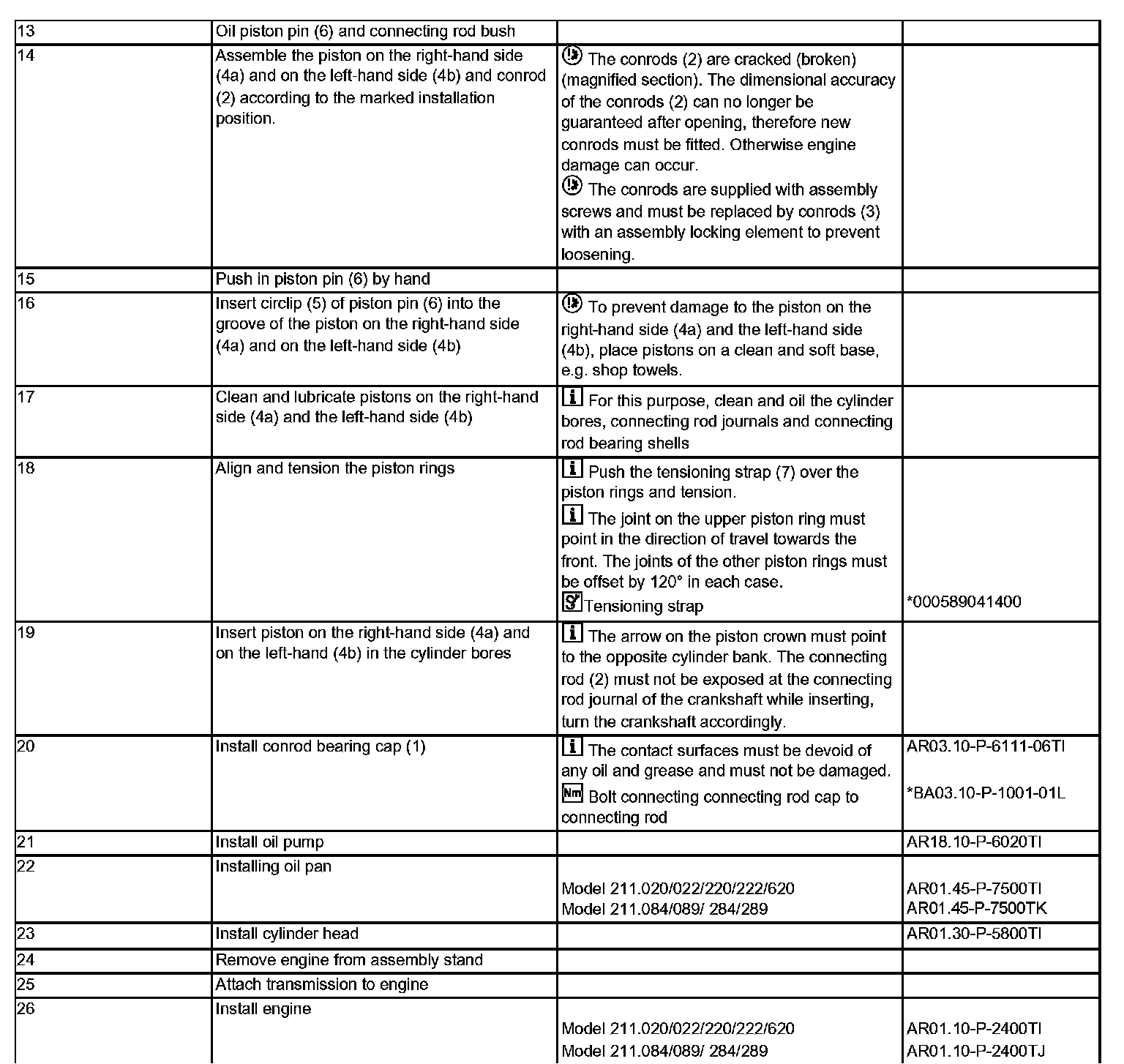

Steps 13-26:
Connecting rod:

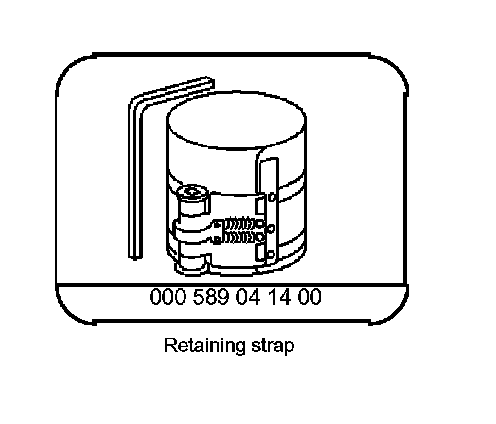

Special Tools:
