Piston Ring: Service and Repair
AR03.10-P-7311TI Removing/installing piston rings
Component Identification:

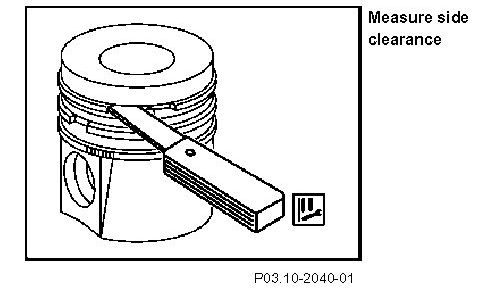

Measure side clearance:

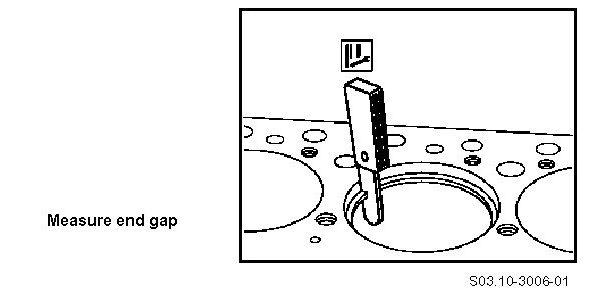

Measure end gap:

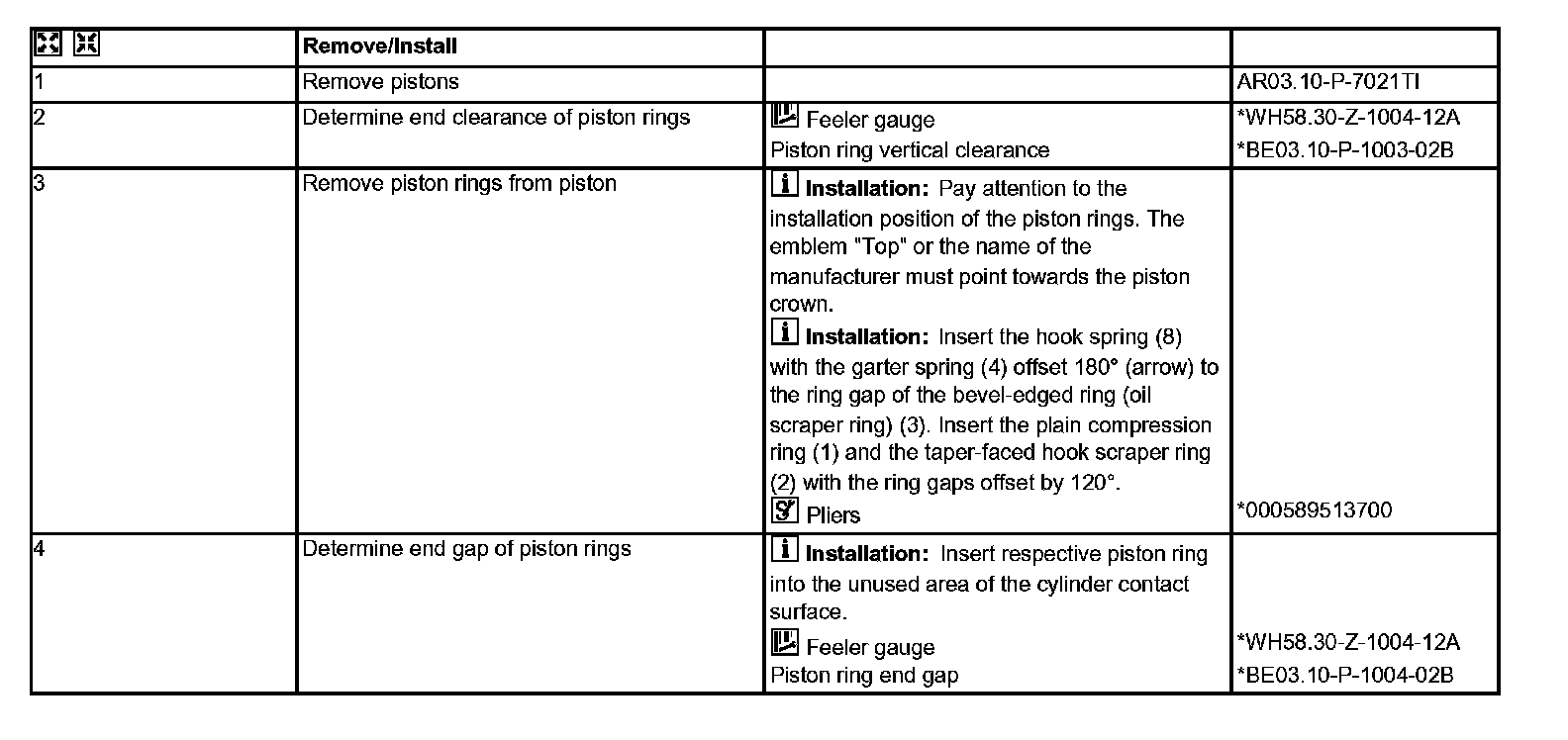

Remove/install Steps 1-4:
Remove/install Step 5:
Test values for pistons:

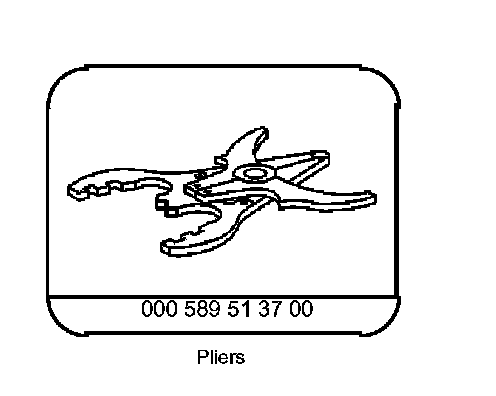

Special Tools:

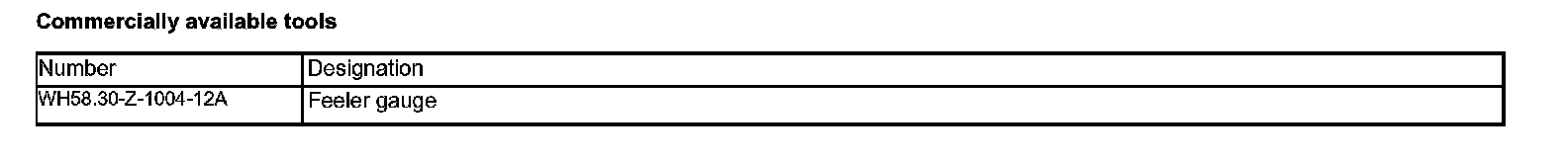

Commercially available tools:
