Harmonic Balancer - Crankshaft Pulley: Testing and Inspection

AR03.30-P-1600-01TI Inspecting belt pulley/vibration damper for axial and radial runout

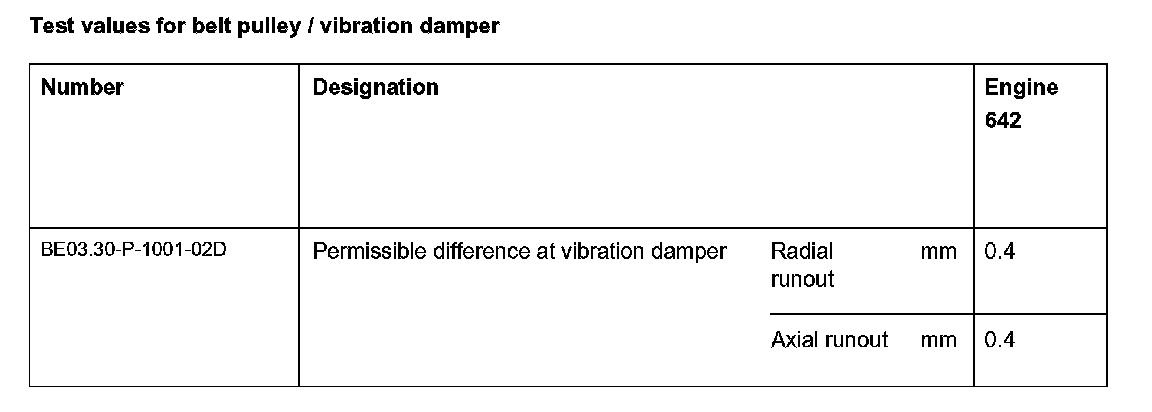

Test values for belt pulley / vibration damper:

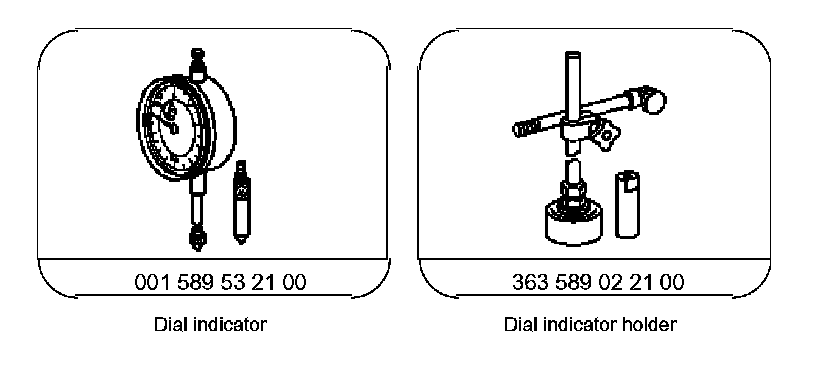

Special Tools:

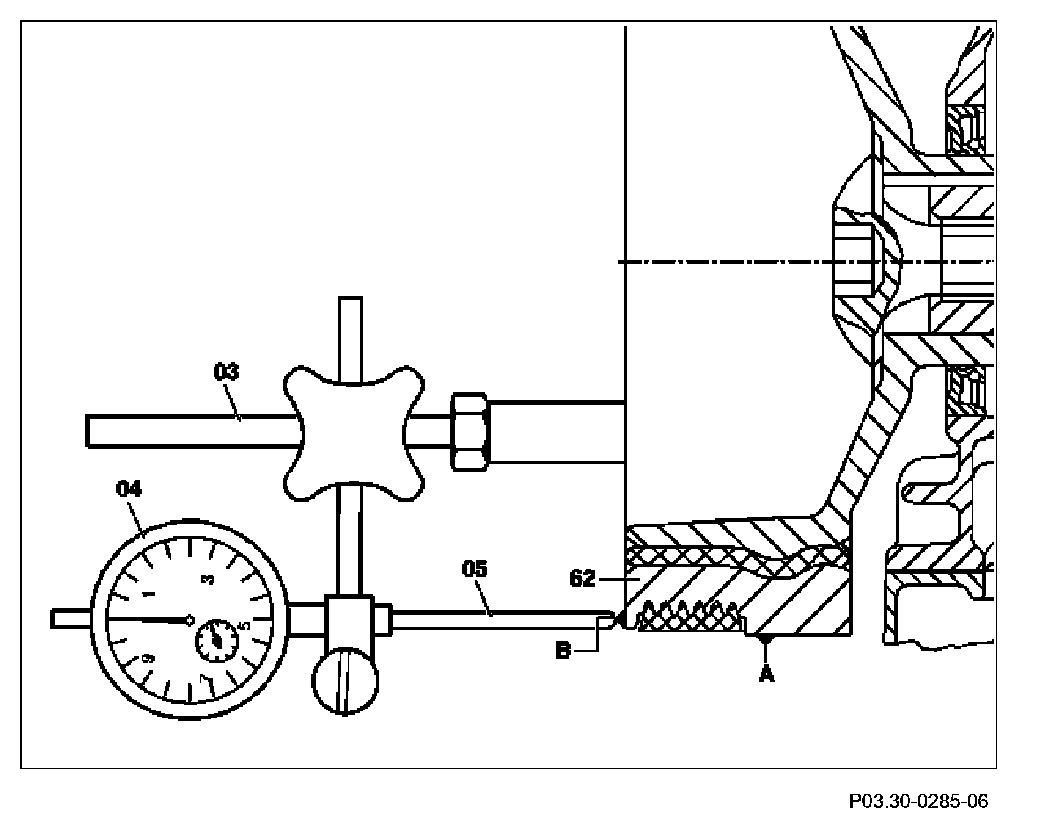

Component Identification:

1 Bolt dial gage holder (03) onto timing case cover.
2 Insert dial gage (04) into dial gage holder (03).
3 Position tracer pin (05) of dial gage (04) at measuring point (B).
4 Rotate belt pulley/vibration damper (62) by hand, inspect axial runout.
5 Position tracer pin (05) of dial gage (04) at measuring point (A).
6 Rotate belt pulley/vibration damper (62) by hand, inspect smooth operation.
