AR01.40-P-8913TI Remove/Install The End Cover



AR01.40-P-8913TI Remove/install the end cover

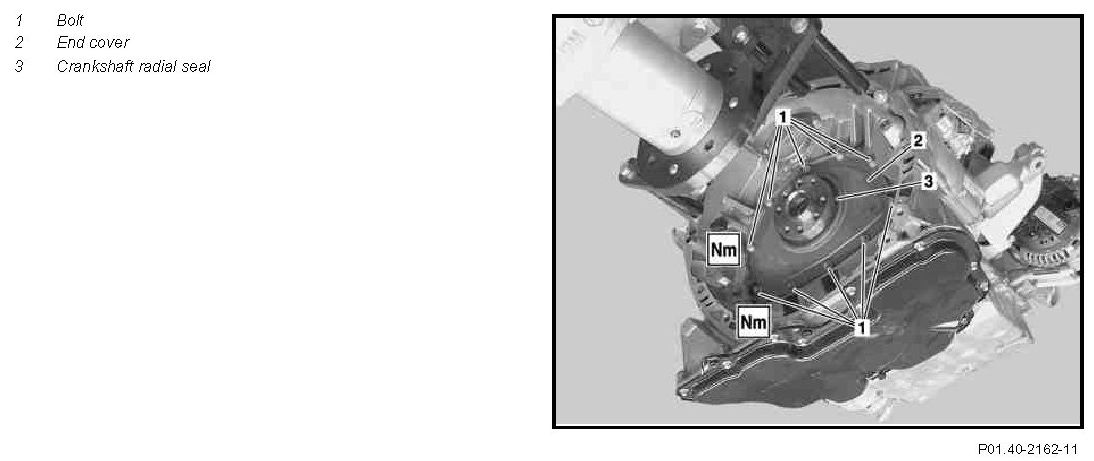

Component Identification:




Modification notes:

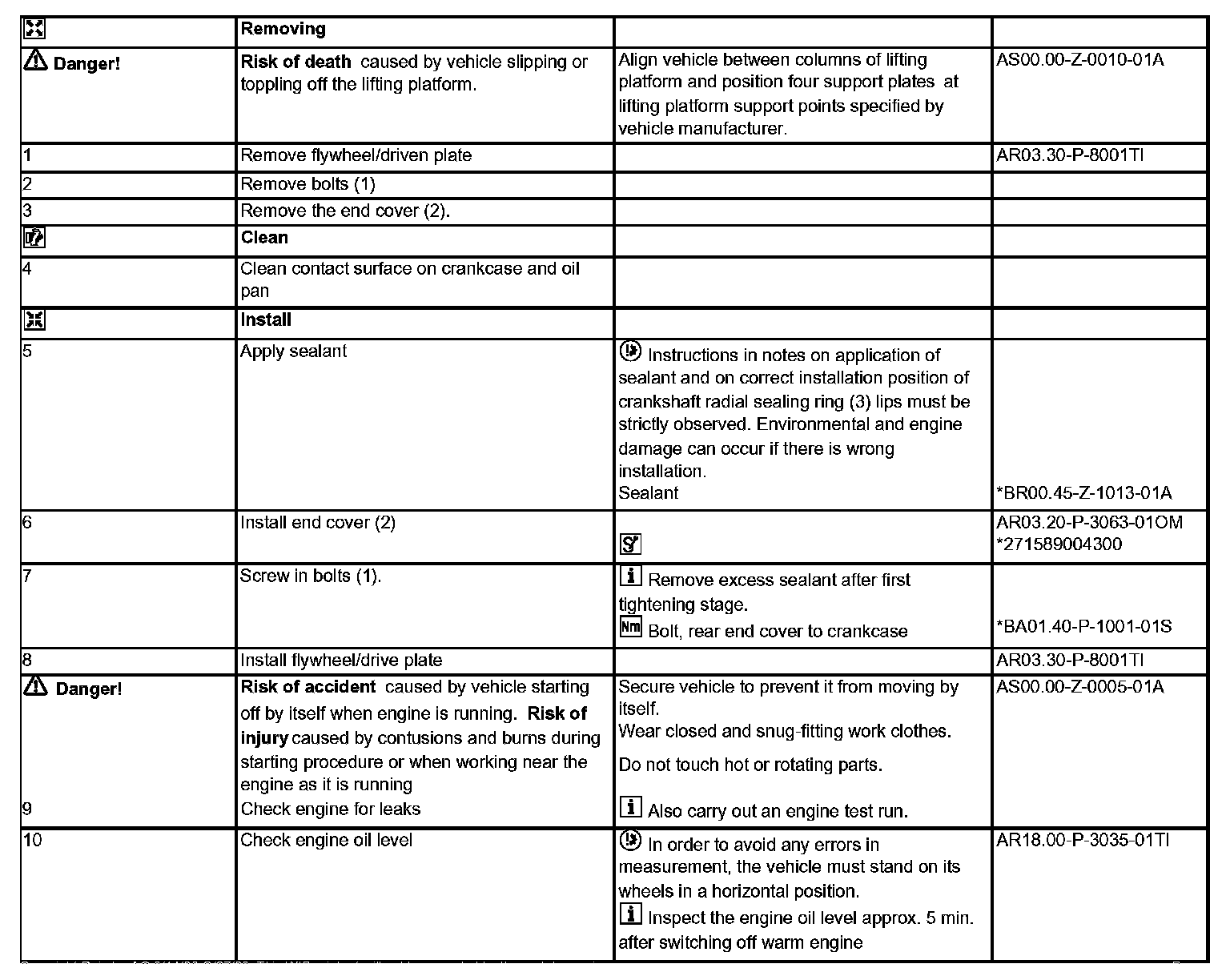

Steps 1-10:

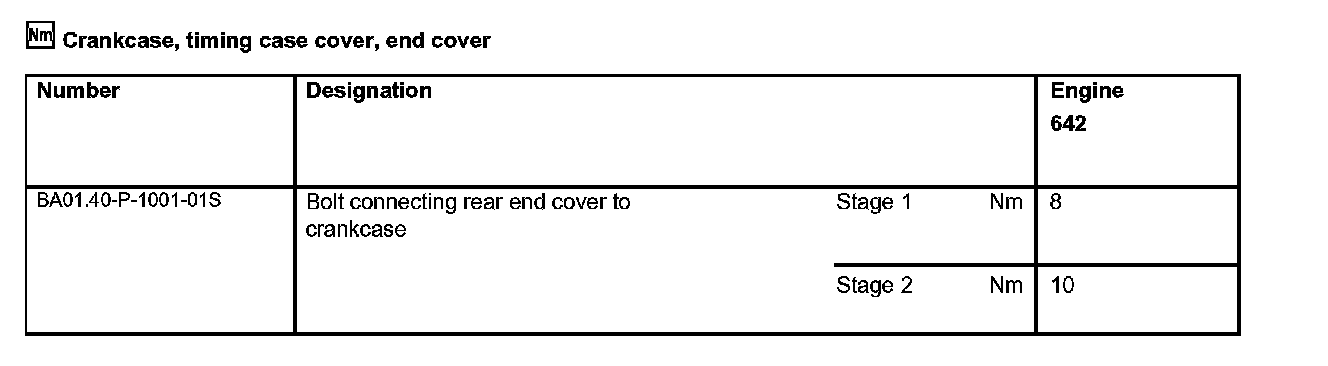

Crankcase, timing case cover, end cover:




Special Tools:




Repair materials:
