AR05.00-P-2011TI Remove/Install Hydraulic Valve Clearance Compensation Elements



AR05.00-P-2011TI Remove/install hydraulic valve clearance compensation elements

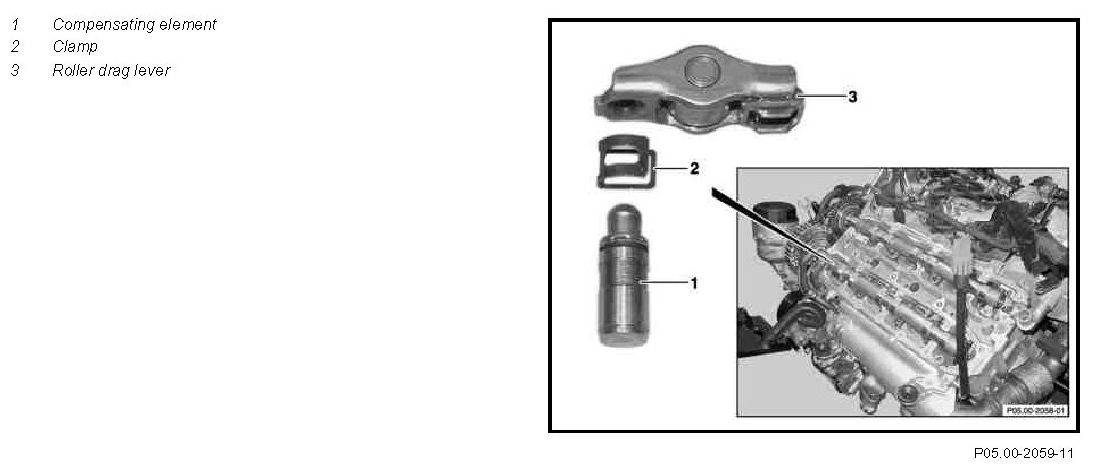

Component Identification:

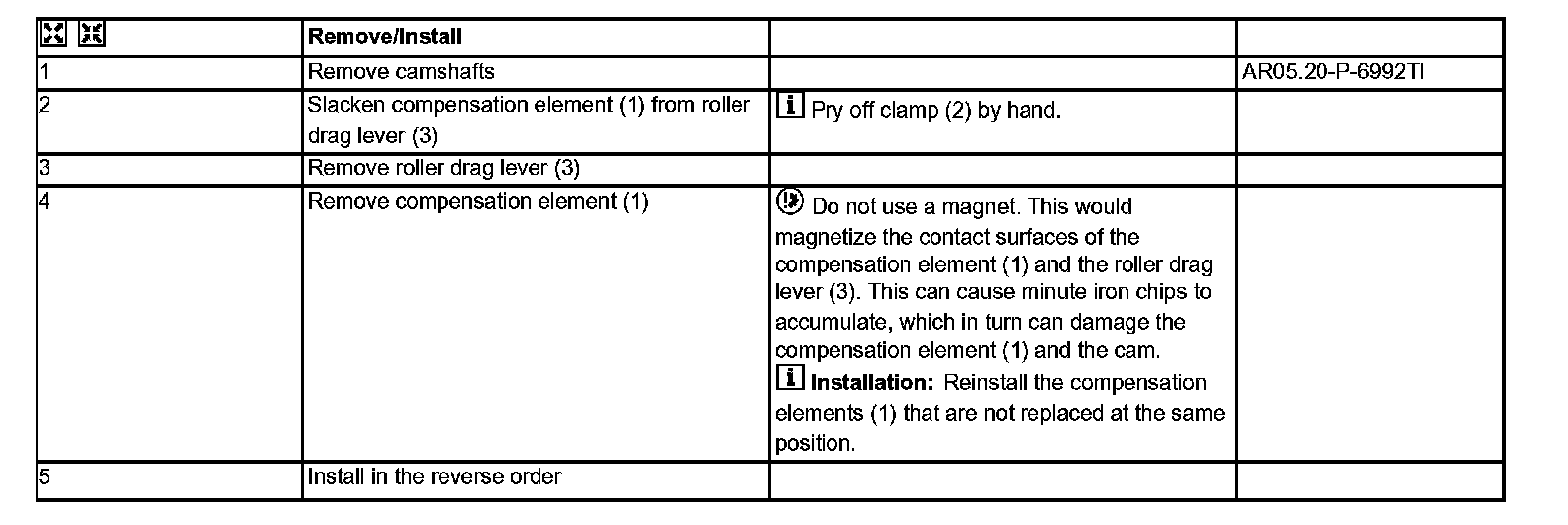

Remove/install Steps 1-5:
