AR20.00-P-1142TI Drain/Fill In Coolant
AR20.00-P-1142TI Drain/Fill In Coolant
AR20.00-P-1142TI Drain/fill in coolant

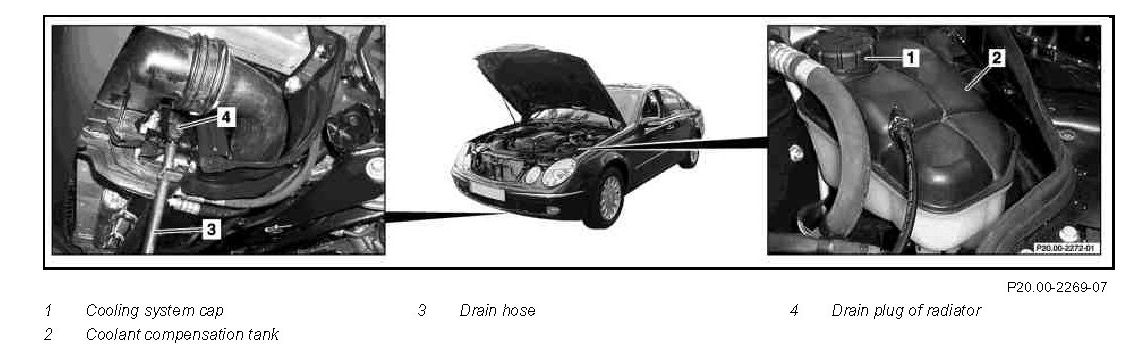

Component Identification:

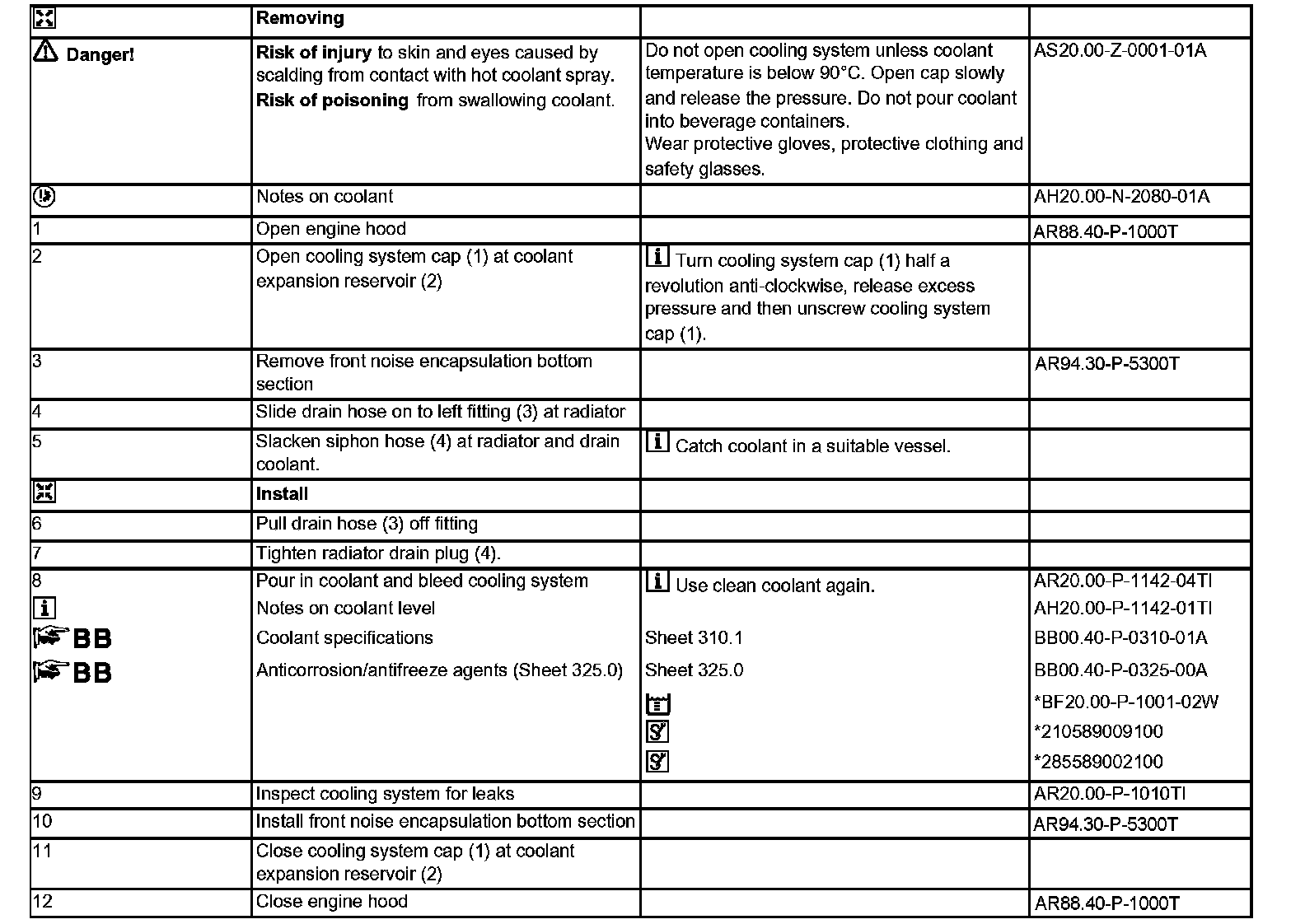

Steps 1-12:

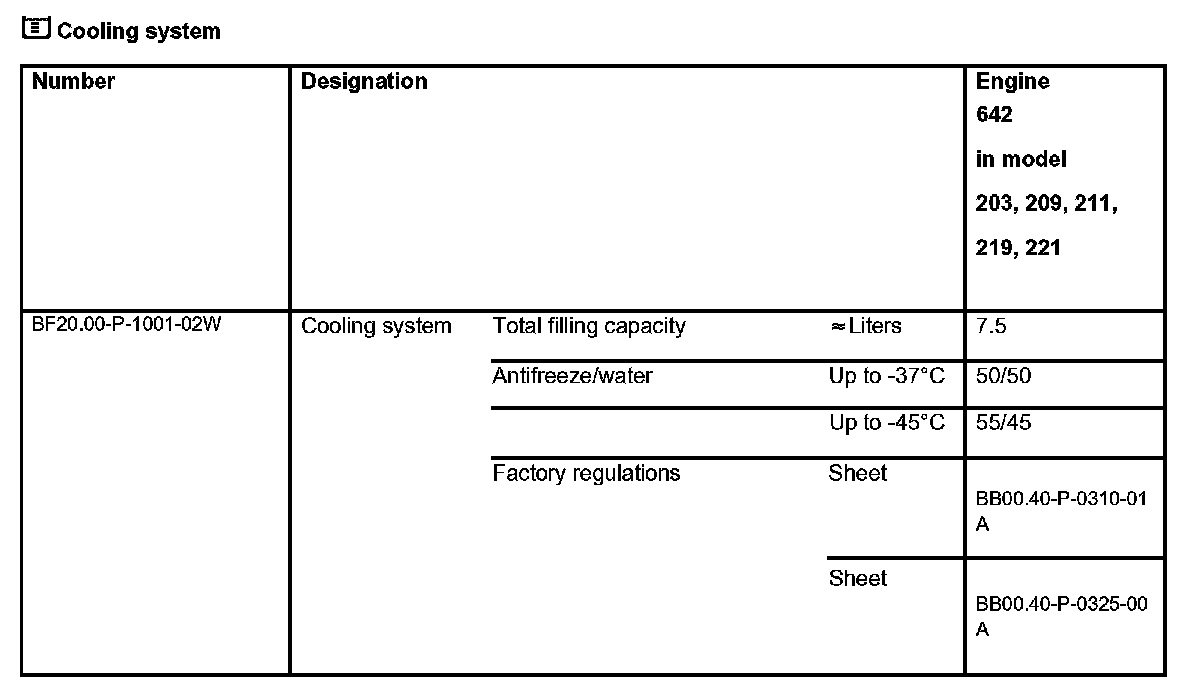

Cooling system:

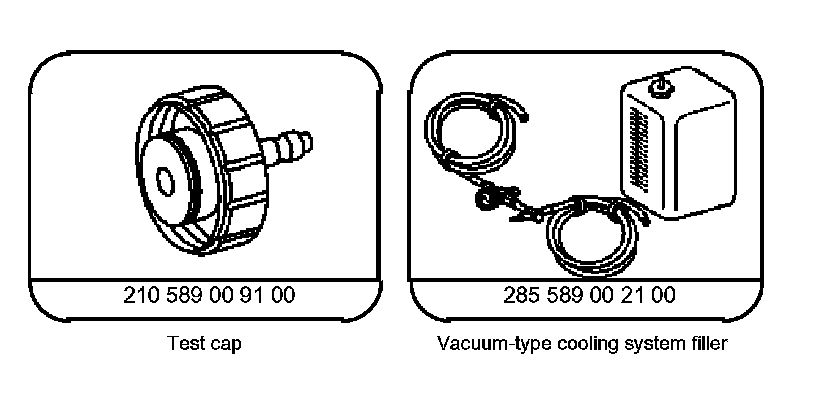

Special Tools:
